2.7V Winding Type Series

FOB Price

USD $1 - $1000000 / Piece

100000 Pieces(Min.Order)

Supply Ability 1000000000 Piece / Pieces per Month
Payment TermsT/T PayPal
Delivery Detail2 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

The performance of 2.7V winding type series supercapacitor

High energy, high power series

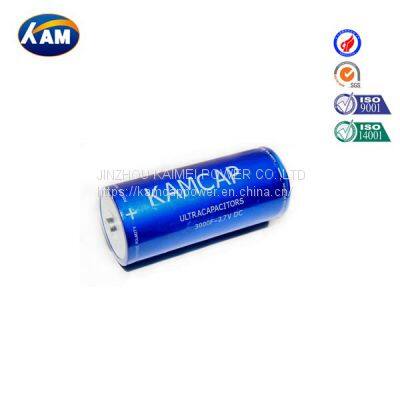

The capacity of 2.7V winding type series supercapacitor is from 0.1F to 3000F (3000f super capacitor), and there is super capacitor 2.7 v 3000f. Thus, the applied fields of 2.7 volt Capacitor applications are very extensive.

SE/HE series Kamcap super capacitor products use a temperature range of -25 ℃ ~ 70 ℃ low leakage, suitable for long-term continuous discharge of small current.

SP/HP/LR seires kamcap super capacitor products use a temperature range of -40 ℃ ~ 70 ℃ low internal resistance, providing instantaneous high current output.

The typical application of 2.7V winding type series supercapacitor

Our 0.1F~3000F 2.7V ultracapacitor is widely applied into different industries. For example, our 2.7V supercap can be used in RAM, detonator, car recorder, smart meter and electric meter. This 2.7V super cap can also be used for controller, vacuum switch, digital camera, motor drive, clock circuit, backup power, toy, program-controlled switch, etc.

If you are interested in our products and want to buy super capacitor, please contact our professional team through info@kamcap.com.

The specification sheet of 2.7v winding ultracapacitor:

Series name	HP Series High power type supercaps
Type name	HP-2R7
Rated voltage VR	2.7V
Surge voltage	2.85V
Capacity range	0.1F~3000F
Operating temperature range	-40 ~ +70℃
Product life	Normal temperature cycle life：25℃, 1 million cycles between VR and 1/2VR , Capacity attenuation≤30%, ESR change≤4 times.
Product life	High temperature endurance life：Maximum temperature retention VR，1000 hours.Capacity attenuation≤30%, ESR change≤4 times.

Series specification sheet：

Series name	HE Series High energy type supercaps
Type name	HE-2R7
Rated voltage VR	2.7V
Surge voltage	2.85V
Capacity range	0.35F~25F
Operating temperature range	-25 ~ +70℃
Product life	Normal temperature cycle life：25℃, 1 million cycles between VR and 1/2VR , Capacity attenuation≤30% , ESR change≤4 times.
Product life	High temperature endurance life：Maximum temperature retention VR，1000 hours. Capacity attenuation≤30%, ESR change≤4 times.

Supercapacitor product drawings：

HP Series: 0.1-120F

Product performance list:

HP 2.7V Series products:

Model	Capacity F	ESR mΩ		Product size（mm）
Model	Capacity F	DC	AC 1kHz	Diameter	Height	Pin distance
HP-2R7-J104VYJ03	0.1	1400	700	5	12	2
HP-2R7-J104VYJ01	0.1	1400	700	5	10	2
HP-2R7-J154VYJ01	0.15	500	250	5	10	2
HP-2R7-J204VYJ01	0.2	1200	600	5	10	2
HP-2R7-J204VYJ03	0.2	400	200	5	12	2
HP-2R7-J254VYJ03	0.25	4000	200	5	12	2
HP-2R7-J354VYJ03	0.35	500	250	5	12	2
HP-2R7-J504VYJ16	0.5	700	350	6.3	10	2.5
HP-2R7-J504VYJ17	0.5	700	350	6.3	12.5	2.5
HP-2R7-J704VYJ06	0.7	600	300	8	13	3.5
HP-2R7-J704VYJ15	0.7	2600	1300	4	18	1.6
HP-2R7-J105VYJ06	1	600	300	8	13	3.5
HP-2R7-J105TYJ16	1	1100	550	6.3	10	2.5
HP-2R7-J105VYJ17	1	1300	650	6.3	12.5	2.5
HP-2R7-J155VYJ06	1.5	700	350	8	13	3.5
HP-2R7-J155VYJ66	1.5	600	300	10	13	5
HP-2R7-J155UYJ18	1.5	700	350	6.3	14	2.5
HP-2R7-J155VYJ08	1.5	500	250	8	16	3.5
HP-2R7-J205VYJ42	2	480	240	6.3	22	2.5
HP-2R7-J205VYJ70	2	500	250	6.3	17	2.5
HP-2R7-J205VYJ08	2	400	200	8	16	3.5
HP-2R7-J205VYJ07	2	260	130	8	20	3.5
HP-2R7-J205VYJ13	2	240	120	10	20	5
HP-2R7-J225VYJ13	2.2	240	120	10	20	5
HP-2R7-J305VYJ42	3	500	250	6.3	22	2.5
HP-2R7-J335VYJ42	3.3	500	250	6.3	22	2.5
HP-2R7-J335TYJ07	3.3	240	120	8	20	3.5
HP-2R7-J335VYJ13	3.3	140	70	10	20	5
HP-2R7-J405VYJ13	4	140	70	10	20	5
HP-2R7-J405VYJ09	4	200	100	12.5	21	5
HP-2R7-J405VYJ07	4	200	100	8	20	3.5
HP-2R7-J475VYJ09	4.7	120	60	12.5	21	5
HP-2R7-J505VYJ13	5	180	90	10	20	5
HP-2R7-J505UYJ04	5	180	90	8	24	3.5
HP-2R5-J505TYJ07	5	180	90	8	20	3.5
HP-2R7-J605VYJ11	6	120	60	10	25	5
HP-2R7-J605VYJ04	6	300	150	8	24	3.5
HP-2R7-J605VYJ13	6	150	75	10	20	5
HP-2R7-J705VYJ13	7	160	80	10	20	5
HP-2R7-J705VYJ05	7	160	80	8	30	3.5
HP-2R7-J805VYJ09	8	100	50	12.5	21	5
HP-2R7-J106VYJ10	10	80	40	12.5	25	5
HP-2R7-J106VYJ19	10	80	40	12.5	34	5
HP-2R7-J106VYJ11	10	100	50	10	25	5
HP-2R7-J106VYJ12	10	110	55	10	30	5
HP-2R7-J106VYJ09	10	110	55	12.5	21	5
HP-2R7-J126VYJ19	12	80	40	12.5	34	5
HP-2R7-J126VYJ09	12	80	40	12.5	21	5
HP-2R7-J156VYJ21	15	60	30	16	26	7.5
HP-2R7-J156VYJ10	15	70	35	12.5	25	5
HP-2R7-J156VYJ19	15	76	38	12.5	34	5
HP-2R7-J156VYJ12	15	80	40	10	30	5
HP-2R7-J166VYJ20	16	76	38	16	20	7.5
HP-2R7-J186VYJ10	18	60	30	12.5	25	5
HP-2R7-J206VYJ22	20	46	23	16	34	7.5
HP-2R7-J206VYJ21	20	50	25	16	26	7.5
HP-2R7-J206UYJ10	20	50	25	12.5	25	5
HP-2R7-J206VYJ19	20	50	25	12.5	34	5
HP-2R7-J256VYJ22	25	40	20	16	34	7.5
HP-2R7-J256VYJ21	25	50	25	16	26	7.5
HP-2R7-J256UYJ19	25	60	30	12.5	34	5
HP-2R7-J306VYJ22	30	40	20	16	34	7.5
HP-2R7-J306VYJ19	30	44	22	12.5	34	5
HP-2R7-J306VYJ23	30	44	22	18	26	7.5
HP-2R7-J306VYJ39	30	44	22	16	32	7.5
HP-2R7-J356VYJ21	35	40	20	16	26	7.5
HP-2R7-J406VYJ22	40	40	20	16	34	7.5
HP-2R7-J406VYJ40	40	40	20	18	34	7.5
HP-2R7-J406VYJ25	40	40	20	18	41	7.5
HP-2R7-J406VYJ25	40	40	20	18	41	7.5
HP-2R7-J506VYJ25	50	40	20	18	41	7.5
HP-2R7-J506UYJ40	50	40	20	18	34	7.5
HP-2R7-J506VYJ40	50	40	20	18	34	7.5
HP-2R7-J606UYJ25	60	40	20	18	41	7.5
HP-2R7-J606VYJ25	60	40	20	18	41	7.5
HP-2R7-J906UYJ28	90	30	15	22	46	10
HP-2R7--J107VYJ27	100	30	15	22	42	10
HP-2R7-J107UYJ28	100	30	15	22	46	10
HP-2R7-J107VYJ29	100	30	15	25.4	40	10
HP-2R7-J127VYJ30	120	30	15	25.4	54	10
HP-2R7-J127VYJ28	120	30	15	22	46	10
HP-2R7-J127VYJ29	120	30	15	25.4	40	10
HP-2R7-J157VYJ30	150	30	15	25.4	54	10
HP-2R7-J157VYJ29	150	30	15	25.4	40	10
HP-2R7-J187UYJ30	180	20	10	25.4	54	10
HP-2R7-J187VYJ77	180	20	10	30	40	10
HP-2R7-J207VYJ33	200	20	10	35	61	10
HP-2R7-J207VYJ30	200	20	10	25.4	54	10
HP-2R7-J207VYJ31	200	20	10	30	50	10
HP-2R7-J227VYJ31	220	20	10	30	50	10
HP-2R7-J227VYJ33	220	20	10	35	61	10
HP-2R7-J247VYJ31	240	20	10	30	50	10
HP-2R7-J267VYJ31	260	20	10	30	50	10
HP-2R7-J267VYJ33	260	20	10	35	61	10
HP-2R7-J307VYJ32	300	20	10	35	54	10
HP-2R7-J307VYJ33	300	20	10	35	61	10
HP-2R7-J367UYJ33	360	7	3.5	35	61	10
HP-2R7-J407UYJ33	400	20	10	35	61	10
HP-2R7-J477VYJ33	470	10	5	35	61	10
HP-2R7-J507UYJ33	500	20	10	35	61	10
HP-2R7-J507UCJ59	500	2.5	1.5	33	76	/
HP-2R7-J557VYJ75	550	20	10	35	70	10
HP-2R7-J607VYJ75	600	20	10	35	70	10
HP-2R7-J657UNJ34	650	10	5	35	96	12.7
HP-2R7-J707UNJ34	700	10	5	35	96	12.7
HP-2R7-J727UCJ60	720	2	1.3	33	101	/
HP-2R7-J807UNJ34	800	10	5	35	96	12.7
HP-2R7-J108UNJ47	1000	10	5	51	71	21.8
HP-2R7-J128UNJ49	1200	6	3	51	108	21.8
HP-2R7-J158UNJ49	1500	6	3	51	108	21.8
HP-2R7-J208UNJ50	2000	4	2	51	133	21.8
HP-2R7-J248UNJ50	2400	4	2	51	133	21.8
HP-2R7-J308UNJ52	3000	4	2	64	133	28.2
HP-2R7-J357UCJ45	350	3	1.6	35	62	/
HP-2R7-J308ULJ70	3000	0.29	0.25	60	140	/
HP-2R7-J308UMJ70	3000	0.29	0.25	60	140	/

HE 2.7V Series products:

Model	Capacity F	ESR mΩ		Product size（mm）
Model	Capacity F	DC	AC 1kHz	Diameter	Height	Pin distance
HE-2R7-J104VYJ03	0.1	1800	900	5	12	2
HE-2R7-J204VYJ01	0.2	2400	1200	5	10	2
HE-2R7-J354VYJ03	0.35	1200	600	5	12	2
HE-2R7-J504VYJ17	0.5	1200	600	6.3	12.5	2.5
HE-2R7-J504VYJ16	0.5	1200	600	6.3	10	2.5
HE-2R7-J704VYJ06	0.7	1200	600	8	13	3.5
HE-2R7-J105VYJ06	1	1200	600	8	13	3.5
HE-2R7-J205VYJ13	2	500	250	10	20	5
HE-2R7-J205VYJ07	2	500	250	8	20	3.5
HE-2R7-J335TYJ07	3.3	500	250	8	20	3.5
HE-2R7-J335TYJ04	3.3	500	250	8	24	3.5
HE-2R7-J335VYJ13	3.3	400	200	10	20	5
HE-2R7-J475VYJ09	4.7	240	120	12.5	21	5
HE-2R7-J805VYJ09	8	200	100	12.5	21	5
HE-2R7-J106VYJ10	10	160	80	12.5	25	5
HE-2R7-J106VYJ19	10	120	60	12.5	34	5
HE-2R7-J126VYJ19	12	100	50	12.5	34	5
HE-2R7-J156VYJ21	15	100	50	16	26	7.5
HE-2R7-J206VYJ22	20	100	50	16	34	7.5

Why choose Kamcap supercapacitor

As a leader in the industry, kamcap super capacitor is constantly working on the development of supercapacitors, with the strongest R&D team and the strongest production capacity to provide customers with protection.

Supercapacitor is a new type of energy storage device with fast charge and discharge and energy storage characteristics.All of kamcap super capacitor products have passed the ROHS, REACH,ISO9001, ISO14001:2004,TS16949 Certification.

Typical Application

Series	Application range	Instance
SP, LR, HP, HT	Backup power	RAM、Detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc.
SE, HP, HE	Energy storage	Water meter, electricity meter, gas meter, UPS, security equipment, computer memory, communication equipment
SE Coin type, HE	Energy storage	Flashlights, water meters, gas meters, taillights, small appliances, etc.
HP、LR	High power support	Wind power, locomotive start, ignition, electric vehicles, etc.
MK	Backup power High current operation	Electrified railway, smart grid control, hybrid vehicle, wireless transmission, rail power system
