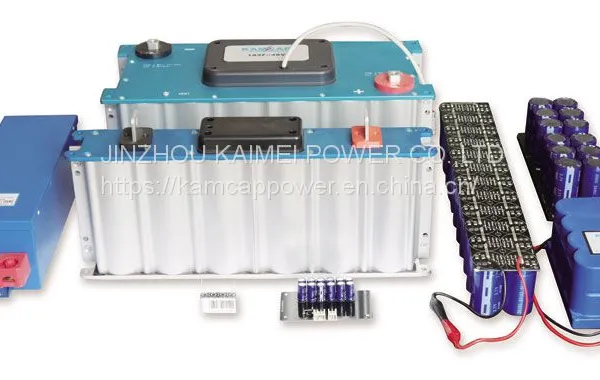

The performance of MK module supercaps in series
Kamcap supercapacitor energy storage module with protection circuit, good stability and high conversion efficiency. The voltage and capacity of the super capacitor are improved by series and parallel connection, and it has a good application prospect in the automotive field and energy storage field.
Increase the use voltage of the product by connecting the supercapacitor cells in series to form a module product such as ultracap module through advanced processes and components.
The typical application of MK module series supercaps
The MK module series supercaps can be widely udes in vehicle start, power distribution terminal (including DTU, FTU, TTU), industrial backup power supply, fault indicator, medical equipment, etc.
Following are the detailed specification of this type of supercaps. If you need to know the commercial supercapacitor price, please make enquires via info@kamcap.com.
The specification sheet of MK module series supercaps：
Power terminal voltage |
Rated voltage VR |
Surge voltage |
Capacity range |
Operating temperature range |
Product life |
3.3~5V |
5.4V |
5.4V |
10~200F |
-40 ~ +65℃ -40 ~ +70℃ -40 ~ +85℃ |
Normal temperature cycle life: 25℃，1 million cycles between VR and 1/2VR，Capacity attenuation ≤ 30%, ESR ≤ 3 times. High temperature endurance life：70℃，maintainVR, 1000 hours. Capacity attenuation ≤ 30%, ESR ≤ 3 times.
|
6~7.5V |
8V |
8.1V |
6~133F |
||
9V |
10V |
10.8V |
0.5~117F |
||
12v ultracapacitor module / 12v super capacitor module |
12.5V |
12.5 |
4~80F |
||
13.5V |
13.5V |
4~80F |
|||
15V |
15V |
3~500F |
|||
16V |
16.2 |
3~500F |
|||
supercap 24v |
27V |
27 |
2~300F |
||
30V |
32 |
1~250F |
|||
48V |
48V |
48.6 |
1~165F |
||
50V |
54 |
1~150F |
|||
60V |
64 |
1~125F |
|||
100V |
100V |
105 |
1~75F |
||
120V |
125V |
130 |
1~62F |
Typical Application
Series |
Application range |
Instance |
SP, LR, HP, HT |
Backup power |
RAM、Detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc. |
SE, HP, HE |
Energy storage |
Water meter, electricity meter, gas meter, UPS, security equipment, computer memory, communication equipment |
SE Coin type, HE |
Energy storage |
Flashlights, water meters, gas meters, taillights, small appliances, etc. |
HP、LR |
High power support |
Wind power, locomotive start, ignition, electric vehicles, etc. |
MK |
Backup power High current operation |
Electrified railway, smart grid control, hybrid vehicle, wireless transmission, rail power system |
