Wireless temperature and humidity inspection data logger

FOB Price

USD $4000 - $10000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Payment Terms:T/T L/C Cash
Delivery Detail:20 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	DEARTO	Place of Origin:	China	Model Number:	DTWX-01
Power:	Electronic	Usage:	Other, wireless temperature and humidity test

Product Description

e, can work more than 100 hours;
 * Small size, light weight, easy to carry;
 * The masterstation server is powerful, leaving the computer (upper computer) can also be used;
 * Data, information freely exported, can be exported to any format of the Excel file;
 * Multi-procedure support, applicable to different types of equipment temperature field testing;
 * The number of channels, support 80 channels online at the same time, up to 250;

Product Overview

DTWX-01 wireless temperature and humidity intelligent inspection system (hereinafter referred to as DTWX-01) is one of our high-end products" temperature and humidity intelligent inspection system "series of products, is aimed at the low temperature section temperature and humidity measurement record scene which is not easy to use wired equipment, can be used in large storage grain depot, tobacco warehouse, cold storage, ammunition depot, equipment room and other large areas with restrictions on temperature and humidity conditions.

Functional characteristics

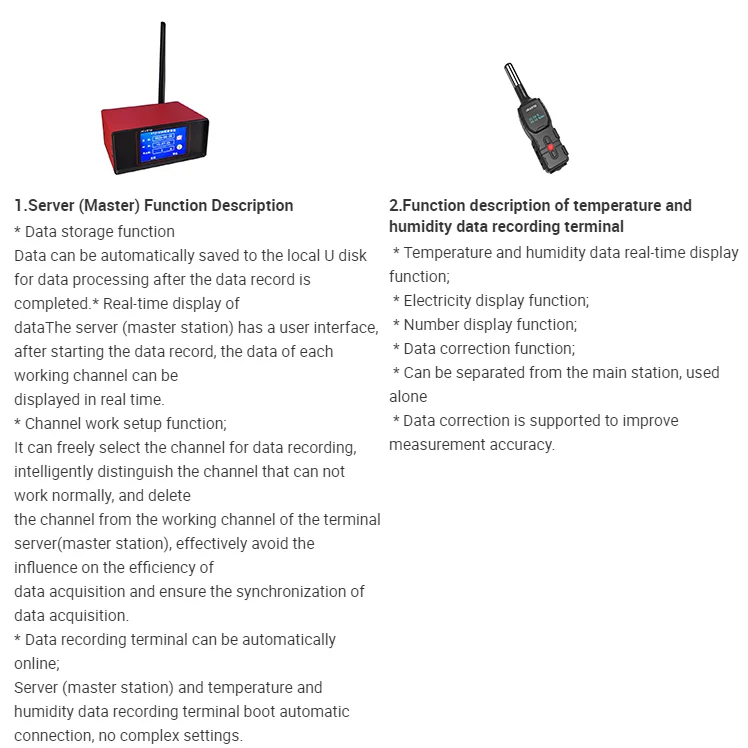

3.Function Description of System Software

* Terminal server(master station) data import function;
The data recorded by the terminal server(master station) without software can be imported into the software and processed.
 * Data Curve Display Function
 * Data processing function
Visual data processing, through the data curve can quickly select the best test data.The selected data is automatically calculated and processed and saved as an internal data record.
 * Support multiple protocols;
The software supports the data processing of the JJF1101-2019 Environmental Test Equipment Temperature and Humidity Calibration Specification and the JJF1564-2016 Temperature and Humidity Standard Box Calibration Specification.
 * Real-time data transmission function
The software can establish a connection with the terminal server to realize real-time data upload and processing.
 * Historical Data Save, Manage, View
The software automatically saves the data imported from the terminal server(master station) and the data uploaded in real time,saves the data processing result, and can open the view again, supports the name retrieval.
 * Information management function
Software support sensor, sample, client, testing party and other information management, for the software does not have information can be automatically added. All information can be exported to the Excel file.

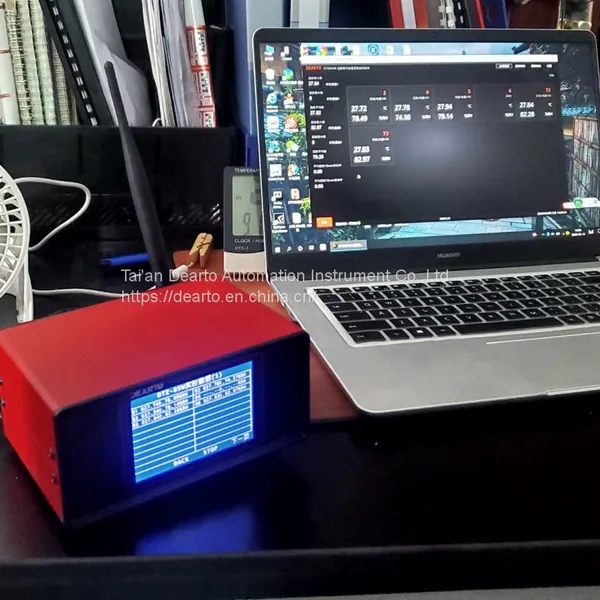

 * Real-time display function
When online with the terminal server(master station) , the software displays the real-time data of each channel.
 * Real-time calculation of fluctuation and uniformity
When online with the terminal server(master station) , the software calculates the fluctuation and uniformity of the temperature field in real time.
 * Marking function of highest point and lowest point
When online with the terminal server(master station), the software automatically marks the highest and lowest channels.
 * Data viewing function
In data processing, you can view the data.
 * Data correction function
The software supports temporary data correction.
 * Low Power Indicator Function
When the power of the data recording terminal is insufficient, the software prompts that the data recording terminal should be charged.
 * Multiple samples tested simultaneously

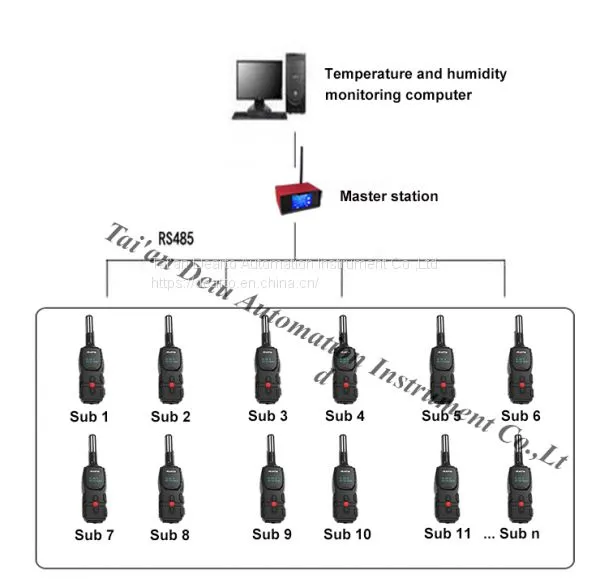

The terminal server(master station)can simultaneously online 80 data recording terminals, put the data recording terminals in different temperature fields, and realize the simultaneous testing of multiple samples by creating multiple test items on the software.

Product Paramenters

Model	DTWX-01
The terminal server(master station)
Size	About 150mm(L)×106mm(W)×70mm(H)
Weight	About 250g
Continuous voyage	External power supply, USB power supply
Data storage	Usb flash drive or memory card
Data format	.csv
Screen	3.4-inch hd color touch screen
Connection mode	With data recording terminal: wireless, with upper computer: USB
Maximum number of channels	80（can be expanded to 250）
Operating environment	Conventional environment
System	Embedded real-time system with user interface

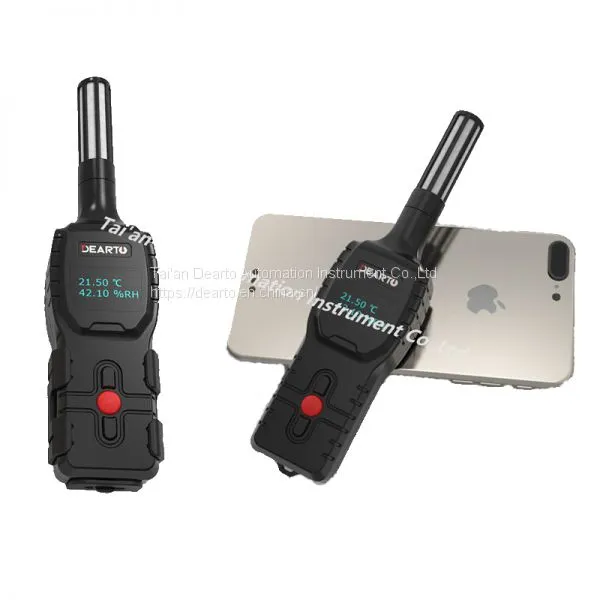

Wireless temperature and humidity data recording terminal
Sensor type	High precision temperature and humidity integrated sensor		High precision temperature sensor
Model	W-RH2	W-RH3	W-PT1	W-PT2
Measuring span	（-40~65）℃ （0~100）%RH(The temperature range is customizable)		-(40~65）℃ （The temperature range is customizable)
Accuracy（@5℃、20℃、50℃）	±0.1℃ ±1.5%RH	±0.15℃ ±2.0%RH	±0.1℃	±0.15℃
Display resolution	0.01℃ 0.01%RH		0.01℃
Size	46mm(L)×31mm(W)×106mm(H)
Weight	About 120g（Battery included）
Connection type	Wireless connections
Transmission distance	≥100m（uncovered）
Sample interval	1s~1200s（adjustable）
Protection grade	IP65（Dustproof and splash proof）
Screen	1.1-inch display
Continuous voyage	Built-in high-density battery, continuous operation ≥100 hours
Charging time	≤ 3 hours (charging time of different chargers is different)
Operating environment	（-40~85）℃
Systems software
Applicable platform	Windows（32 bits and 64 bits）：Win7，Win8（8.1），Win10
Service	Software upgrading
