Intelligent Liquid Transfer Peristaltic Pump For Water Treatment

Baoding Chuang Rui Precision Pump Co.,Ltd
Intelligent Liquid Transfer Peristaltic Pump For Water Treatment thumbnail-1
Intelligent Liquid Transfer Peristaltic Pump For Water Treatment photo-1
US$ 600 - 800 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
CHUANGRUI
Place of Origin:
China
Model Number:
BT600LC
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin /Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CHUANGRUI
Place of Origin China
Model Number BT600LC
Application Other, BT600LC
Fuel Gasoline
Power Electric
Usage Water
Theory Electromagnetic Pump
Standard or Nonstandard Standard
Structure Other, peristaltic pump
Pressure Low Pressure
Quick Details

  • Warranty:

  • 1 year, 1 Year

  • Customized support:

  • OEM, ODM, OBM

  • Brand Name:

  • CR

  • Model Number:

  • BT600LC

  • Place of Origin:

  • China

  • Application:

  • Water Treatment

  • Horsepower:

  • None

  • Power Source:

  • Electric

  • Pressure:

  • Low Pressure

  • Structure:

  • peristaltic pump

  • Cable Length:

  • Other

  • Outlet Size:

  • Max 7.9mm

  • Voltage:

  • AC220V or AC110V

  • Power:

  • <50W

  • Certification:

  • ce, TUV, ISO9001

  • Model:

  • BT600LC

  • Pump head:

  • YZ1515X

  • Speed Range:

  • 0.1-600 rpm

  • Speed resolution:

  • 0.1 rpm

  • Flow rate:

  • Max 2280ml/min/channel

  • Display Mode:

  • LCD(English and Chinese optional)

  • Control Method:

  • Touch screen + keypad

  • MOQ:

  • 1 Set
Supply Ability

  • Supply Ability

  • 3000 Parcel/Parcels per Month

Packaging & Delivery

  • Packaging Details

  • 1. The package contains a peristaltic pump and its accessories.
    2. Carton and foam packaging can protect the safety of the product during transportation.
    3. If you have special packaging requirements, please contact us in time.

  • Port

  • Tianjin,Shanghai,Guangzhou

  • Lead Time:

  • Quantity(Pieces)1 - 3>3
    Est. Time(days)7To be negotiated
Product Description

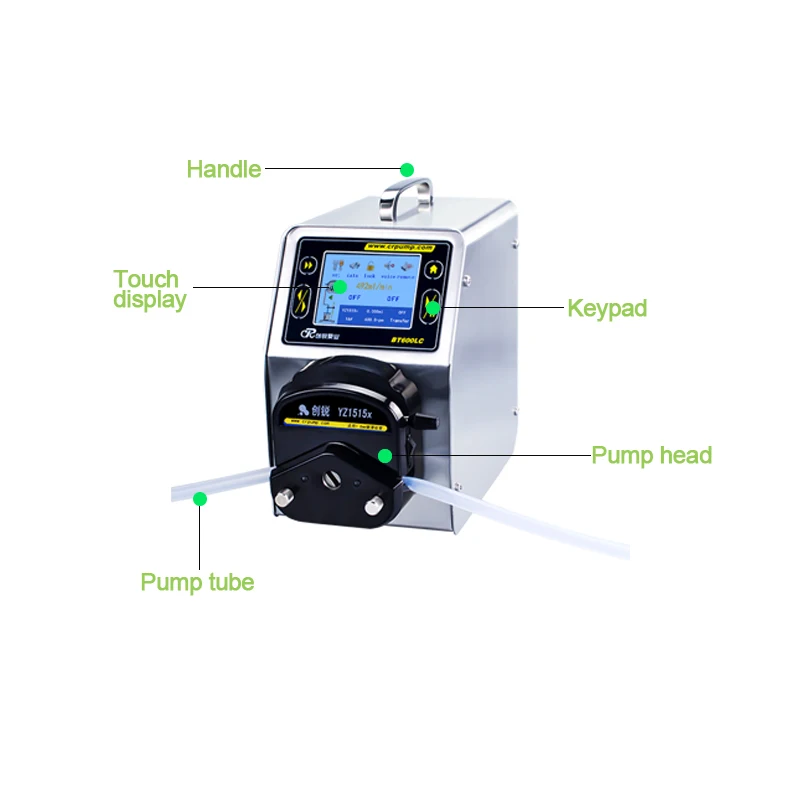

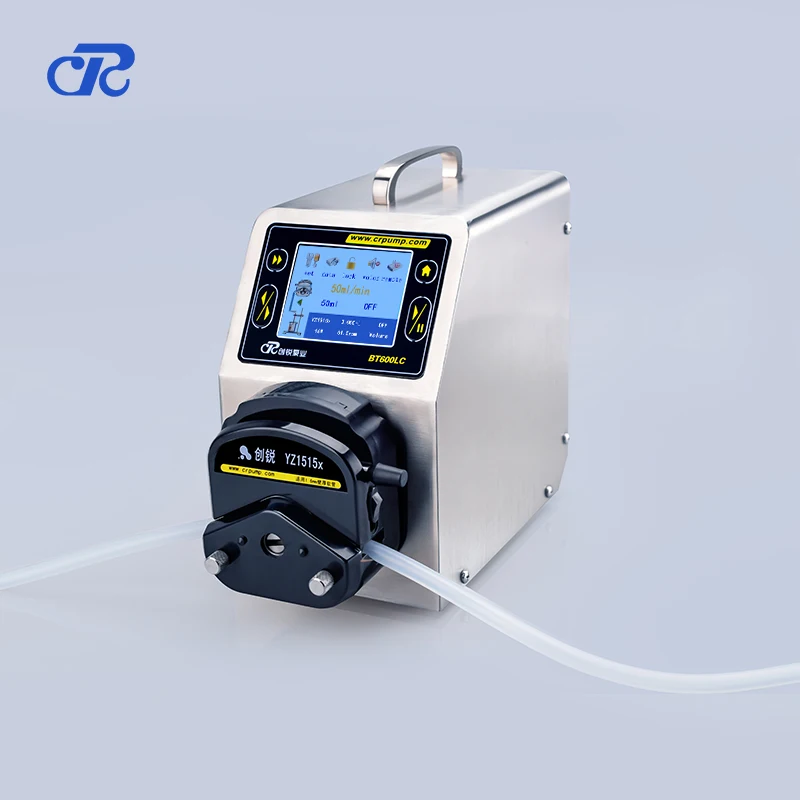

Model: BT600LC/YZ1515x
Speed range: 0.1-600 rpm Flow range : 0.007-2280ml/min Max Number of Channel: 2 Power supply: AC 110V or AC 220V Ideal lab transfer pump

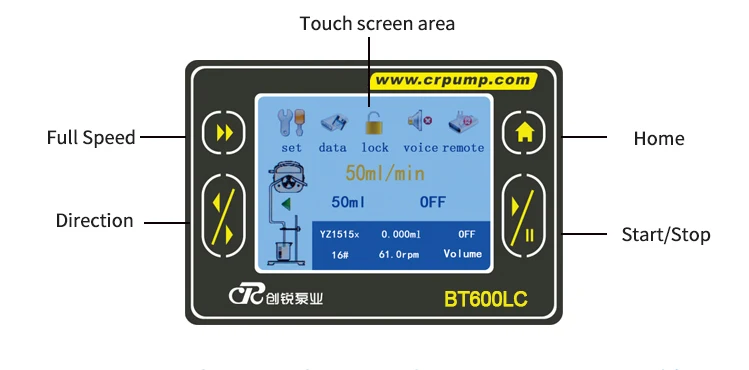

With touch screen setting
With Calibration function to ensure the precise
Support foot pedal Control
CE certified product based on request.
Water is a precious commodity, drinking water quality and treated waste water affects health and the environment requiring reliable and maintenance-free  compact peristaltic pumps. The necessary part for water treatment is to use of sodium hypochlorite for disinfecting water requires the use of metering pumps or dosing pump. As a result, peristaltic hose pumps produce highly accurate metered flow for dosing treatment chemicals such as sodium hypochlorite. Typically both hose and tube pumps are used as chemical dosing pumps accurately and repeatedly delivering a wide range of chemicals whilst addressing the problems of the liquid, our model BT600LC/YZ1515x is very popular for water treatment application.

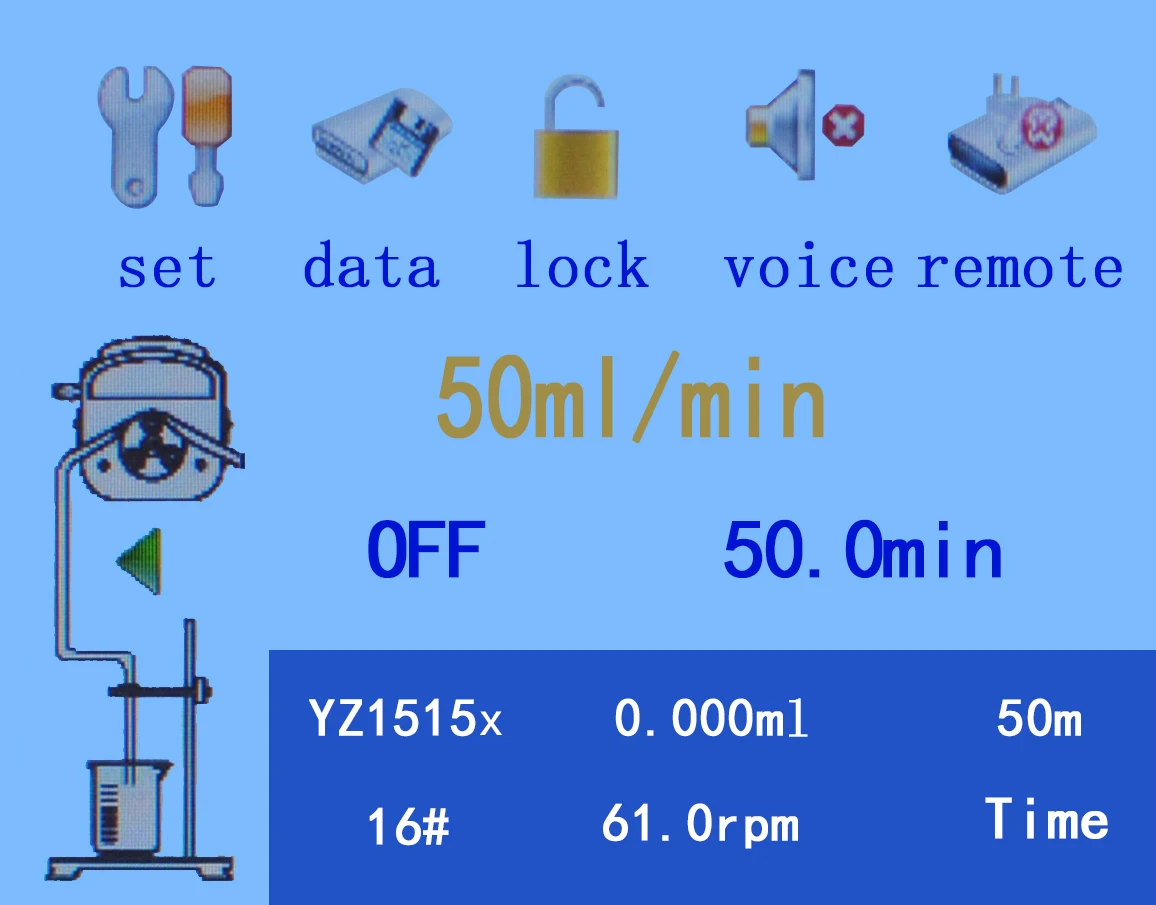

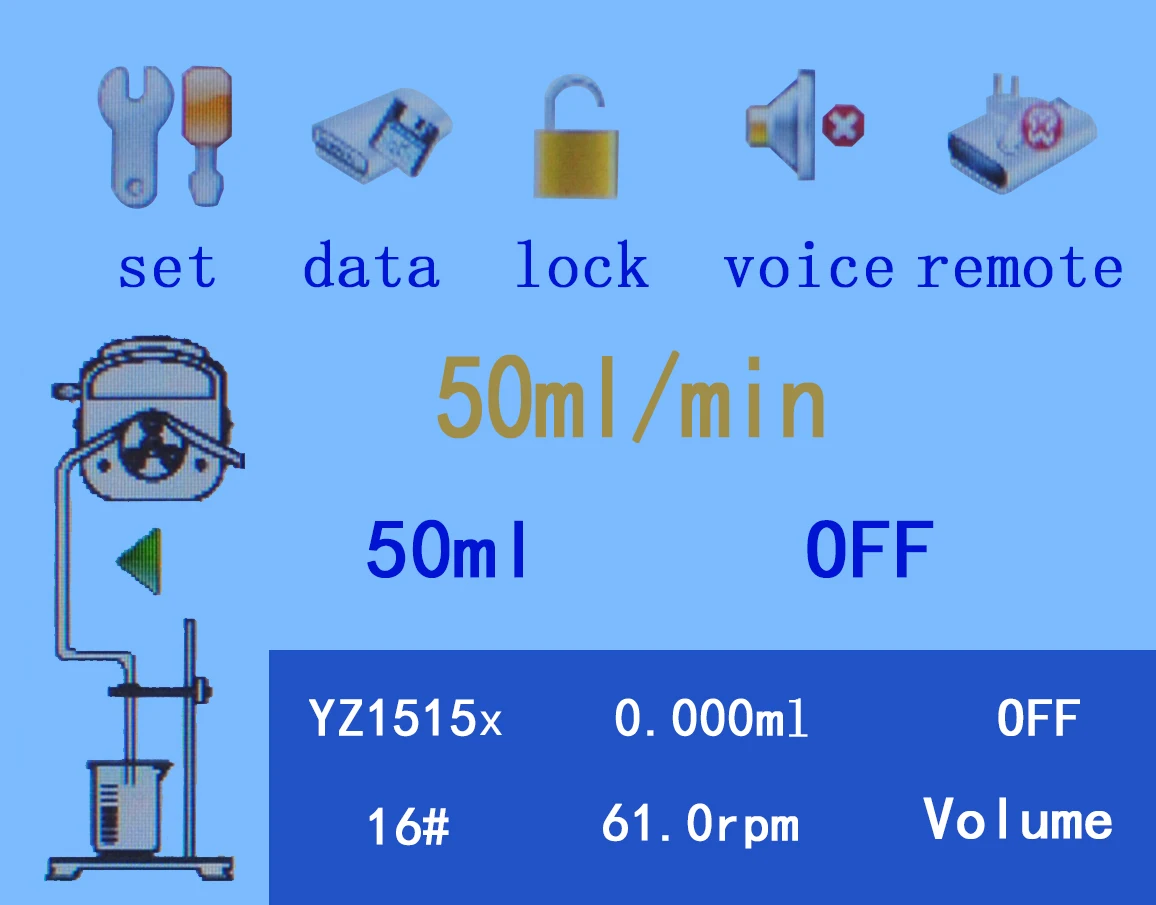

Four working modes
Parameter   Model : BT600LC/YZ1515x
Speed
0.1-600rpm
Speed resolution
0.1rpm
Flow rate
0.007-2280ml/min
Control Method
Touch screen + keypad
Display Mode
LCD（English and Chinese optional）
Power supply
AC220V±10%(standard) or AC110V±10%(optional)
External control
Start & stop, direction control, speed control( 0-5v, 0-10v, 4-20mA optional )
Communication interface
RS232 and RS485, support MODBUS protocol mode
Foot pedal
Yes
Tube specifications for the pump head YZ1515x(black is defaulted)
Noted : The standard tube which will come with the pump is model 18#, If you need other tube model , pls contact our sales in advance.
Tube model
ID(mm)
OD(mm)
Standard material
Flow range(ml/min)
18#
7.9
11.1
Silicon tube
0.38-2280
17#
6.4
9.6
Silicon tube
0.29-1740
25#
4.8
8
Silicon tube
0.17-1020
16#
3.2
6.4
Silicon tube
0.082-492
19#
2.4
5.6
Silicon tube
0.051-306
14#
1.6
4.8
Silicon tube
0.027-162
13#
0.8
4
Silicon tube
0.007-42
