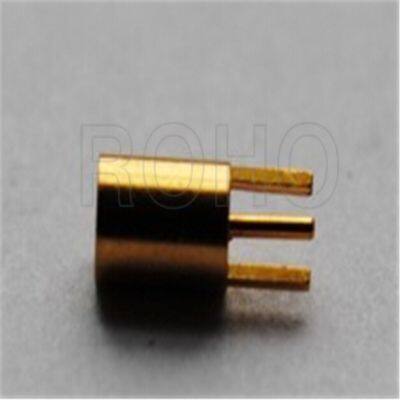

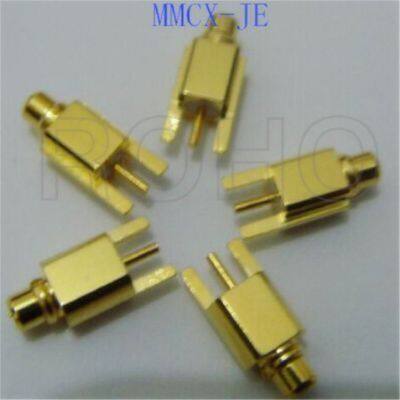

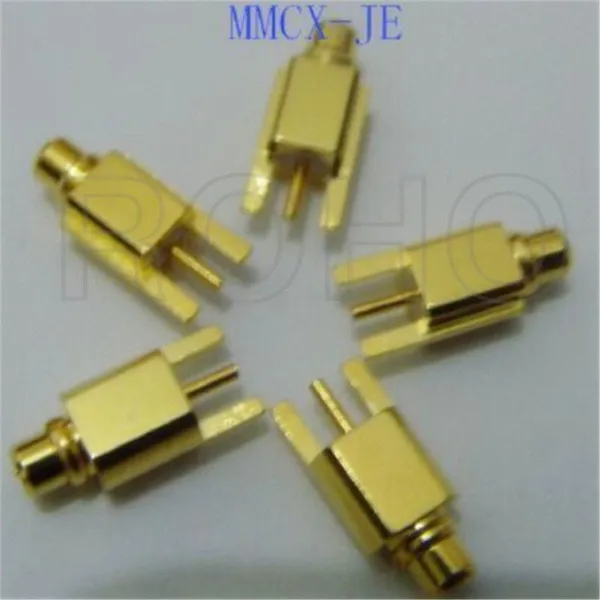

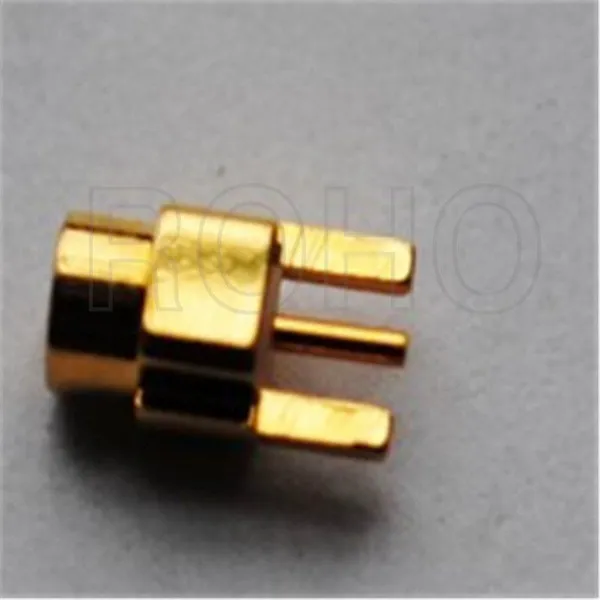

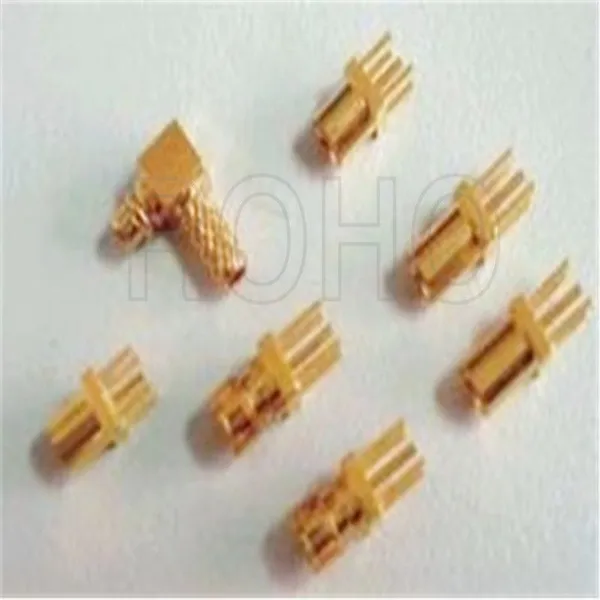

Gold Plated MMCX RF Coaxial Connector for PCB Mount

FOB Price

USD $1 - $10 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ROHO	Place of Origin	China
Model Number	Right Angle RF Coaxial Male Plug MMCX Connector	Type	MMCX
Application	RF	Gender	Male

ELECTRICAL DATA
Impedance	50Ω
Frequency range	DC-6GHz
Dielectric withstanding voltage (at sea level)	≥750Vrms,50Hz
Working voltage	≥170Vrms,50Hz (at sea level) / ≥42Vrms,50Hz (at 21000m/70000ft)
Insulation resistance	≥ 10000 mΩ
Contact resistance	Inner conductor: ≤5mΩ
Contact resistance	Outer conductor: ≤1mΩ
RF leakage(measured at 1GHZ)	Flexible: ≥60dB
RF leakage(measured at 1GHZ)	Semi-rigid cable: ≥70dB
MECHANICAL DATA
Engagement force	≤25Nm /5.6lbs
Disengagement force	≥8N-20N / 1.8 lbs-4.5lbs
Contact captivation	≥10N / 2.3 lbs
Durability (matings)	≥500

ENVIRONMENTAL DATA
Temperature range	-55°C to +155°C

MATERIAL DATA
Bodies	Brass--Au plated
Pin contacts	Brass--Au plating
Socket contacts	Coppper beryllium alloy / Phosphor bronze--Au plating
Crimp ferrules	Brass--Au plating
Insulator	PTFE
