Female Plug Straight RF Coaxial BNC Connector for Rg58 59 6 11 Cable

Female Plug Straight RF Coaxial BNC Connector for Rg58 59 6 11 Cable thumbnail-1
Female Plug Straight RF Coaxial BNC Connector for Rg58 59 6 11 Cable thumbnail-2
Female Plug Straight RF Coaxial BNC Connector for Rg58 59 6 11 Cable thumbnail-3
Female Plug Straight RF Coaxial BNC Connector for Rg58 59 6 11 Cable thumbnail-4
Female Plug Straight RF Coaxial BNC Connector for Rg58 59 6 11 Cable thumbnail-5
Female Plug Straight RF Coaxial BNC Connector for Rg58 59 6 11 Cable photo-1
Female Plug Straight RF Coaxial BNC Connector for Rg58 59 6 11 Cable photo-2

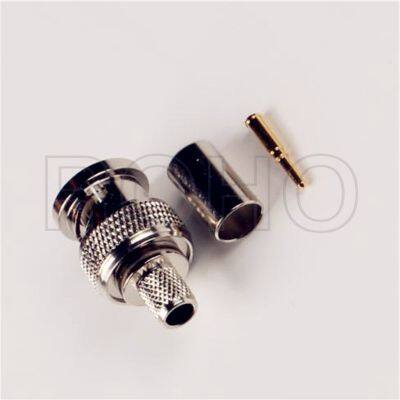

Female Plug Straight RF Coaxial BNC Connector for Rg58 59 6 11 Cable photo-3

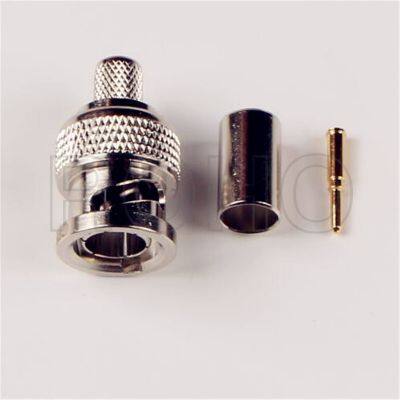

Female Plug Straight RF Coaxial BNC Connector for Rg58 59 6 11 Cable photo-4

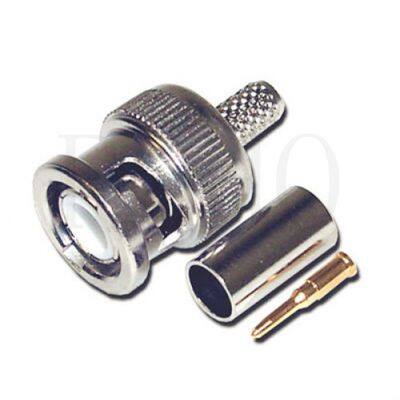

Female Plug Straight RF Coaxial BNC Connector for Rg58 59 6 11 Cable photo-5
US$ 1 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ROHO
Place of Origin:
China
Model Number:
Waterproof BNC RF Coxial Connector
Contact Supplier Request Quote Chat Now
Roho Connector Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ROHO
Place of Origin China
Model Number Waterproof BNC RF Coxial Connector
Type BNC
Application RF
Gender Female
ELECTRICAL DATA
Impedance                                                                   50Ω
Frequency range (for connector interface) DC~4GHz
Dielectric withstanding Voltage (at sea level) 1500V rms, 50Hz (depending on cable)
Working voltage (at sea level) 500V rms, 50Hz (depending on cable)
Insulation resistance ≥ 5000 mΩ
Contact resistance centre contact≤1.5mΩ
outer contact: ≤ 1  mΩ
RF-leakage (between 2÷3 GHz) ≥55 dB
MECHANICAL DATA
Coupling nut torque 7Ncm--28Ncm / 0.6 in.lbs--2.5 in.lbs
Coupling nut retention force ≥450N / 101.2 lbs
Contact captivation ≥27N / 6.1 lbs
Durability (matings) ≥500
ENVIRONMENTAL DATA
Temperature range -65°C  to +165°C
MATERIAL DATA
Bodies Brass--Ni plating
Pin contacts Brass--Au / Ag plating
Socket contacts Copper--beryllium Au / Ag plating
Crimp ferrules Copper alloy--Ni plating
Insulator PTFE
Gaskets Silicone rubber




ELECTRICAL DATA
Impedance                                                                   75Ω
Frequency range (for connector interface) DC~1GHz
Dielectric withstanding Voltage (at sea level) 1500V rms, 50Hz (depending on cable)
Working voltage (at sea level) 500V rms, 50Hz (depending on cable)
Insulation resistance ≥ 1000 mΩ
Contact resistance centre contact≤1.5mΩ
outer contact: ≤ 1  mΩ
Durability (matings) ≥500
VSWR Right angle ≤ 1.3
MATERIAL DATA
Bodies Brass--Ni plating
Pin contacts Brass--Au / Ag plating
Socket contacts Copper--beryllium Au / Ag plating
Crimp ferrules Copper alloy--Ni plating
Insulator PTFE
Gaskets Silicone rubber

Product Tags: RF Connectors , RF Coaxial Connectors , BNC RF Coaxial Connectors , Coaxial Cable Connectors , Electrical Connectors , Wire Connector , Audio Connector , Cable Connector , Adapter
