Acrel Infrared Communicationsupports RS485 Communication 470MHzwireless Communication Easy to Install Wireless MeterAEW100-D20WX

Acrel Electric Co., Ltd

Acrel Infrared Communicationsupports RS485 Communication 470MHzwireless Communication Easy to Install Wireless MeterAEW100-D20WX thumbnail-1

Acrel Infrared Communicationsupports RS485 Communication 470MHzwireless Communication Easy to Install Wireless MeterAEW100-D20WX photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2003

Factory Size:

3,000-5,000 square meters

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

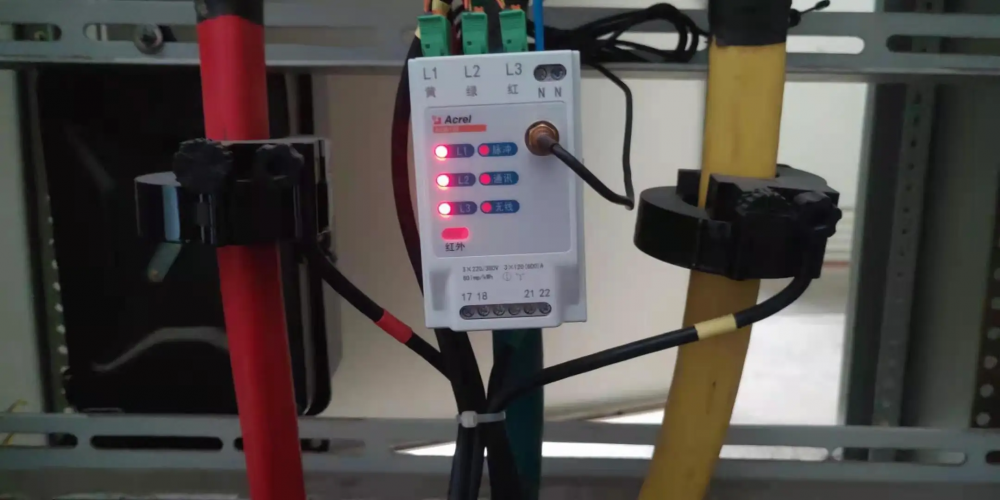

AEW100 wireless meter is mainly used to measure three-phase active energy of low-voltage network. It has RS485 communication and 470MHz wireless communication function, which is convenient for users to monitor, collect and manage electricity consumption. It can be flexibly installed in the distribution box to realize sub-item electric energy measurement, statistics and analysis for different areas and different loads.

Function	Function description
Energy metering	Active kWh (positive and negative)
Electrical measurement	U,I, P,Q,S,PF,F
Pulse output	Active pulse output
LED display	(L1,L2,L3)powered display, pulse, communication, wireless status
Communication	Wireless transmission on 470MHz
	Infrared communication
	Communication interface: RS485

Voltage input	Rated voltage	3×220/380V,3×380V,3×57.7/100V,3×100V
	Reference frequency	50Hz
	Consumption	<2VA(Each phase)

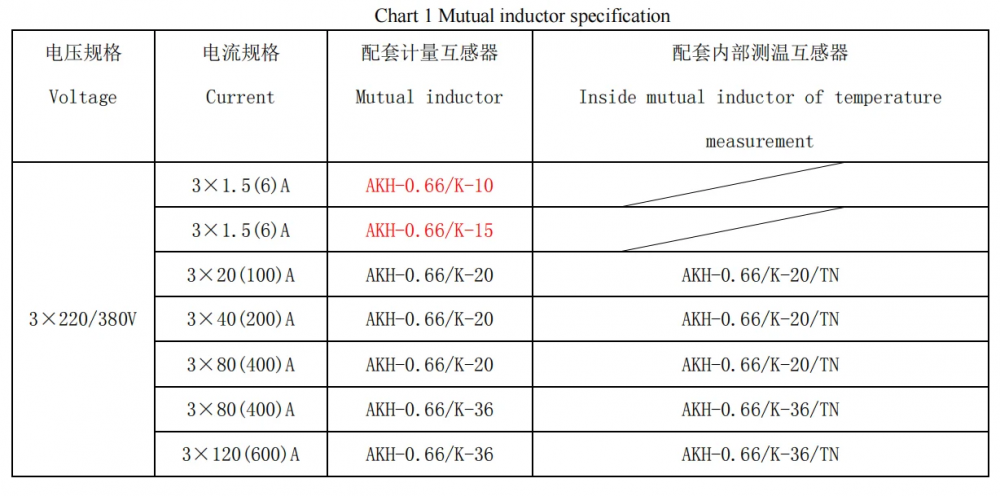

Current input	Input current	3×1.5(6)A,3×20(100)A, 3×40(200)A,3×80(400)A,3×120(600)A
	Start current	4‰Ib(1 Class)
	Consumption	<2VA
Measurement performance	Standard	GB/T17215.321-2008
	Active energy accuracy	1 Class
	Temperature accuracy	±2℃
Pulse	Width of pulse	80±20ms
Pulse	Pulse constant	6400imp/kWh ,400imp/kWh,200imp/kWh,100imp/kWh,60imp/kWh
Communication	Wireless	Transmission on 470MHz and maximum distance in open space is 1km
	Infrared communication	The constant baud rate is 1200
	Interface	RS485(A+,B-)
	Connection mode	Shielded twisted pair conductors
	Protocol	MODBUS-RTU
