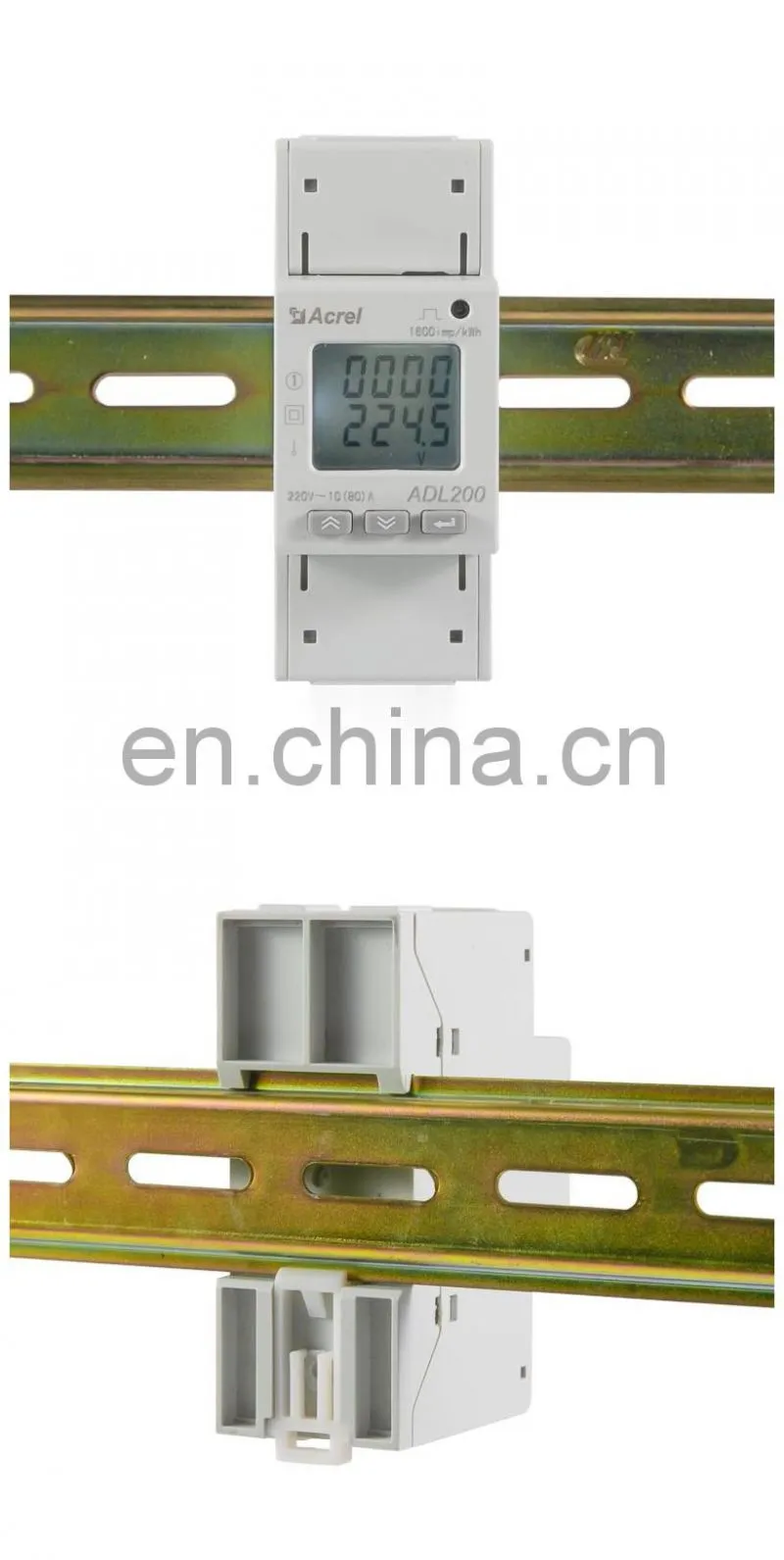

2P Single Phase Din Rail Energy Meter ADL200-C
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Smart Mini Power Single Phase Din Rail Electricity Energy Meter ADL200-CNegotiableMOQ: 1 -
Acrel Factory New Small Din Rail Installation Kwh Energy Meter ADL200-CNegotiableMOQ: 1
-
Single Phase Two Wire Din Rail Counter Type Modbus Watt Hour Energy Electricity KWh Meter ADL200NegotiableMOQ: 1
-
Acrel 2P Din Rail Single Phase Digital Energy KWH Meter ADL200 With RS485 CommunicationNegotiableMOQ: 1
-
3 Phase Energy Meter Din Rail ct or Direct 80A Connection Kwh Power Meter ADL3000-ENegotiableMOQ: 1
ADL200 Single Phase Energy Meter
Product Description
Characteristic
ADL200 single-phase electronic watt-hour meter is mainly used to measure single-phase active energy in low-voltage networks. It can also measure voltage, current, power and other electricity. It can also be equipped with RS485 communication function to facilitate users to monitor, collect and manage electricity consumption. It can be flexibly installed in the distribution box to realize the sub-item electric energy measurement, statistics and analysis of different areas and different loads. The product meets the requirements of the national standard GB/T17215.321-2008 and the enterprise standard Q31/0114000129C035-2017 "Enterprise Standard for Rail Mounted Electric Energy Meters".
Rated U : AC220V
Rated I : AC10(80)A
Display : LCD display U,I,P,Q,S,PF,F
Option function/C: RS485,MODBUS-RTU
Option function/F : Multi tariff energies
Option function/F : Multi tariff energies
Accuracy
kWh: Class 0.5, kVarh:Class 2Frequency
50/60HZ(Optional),range: 45~65HZ
Pulse output
Pulse output kWh/kvarh
Consumption
<10VA(Single phase)

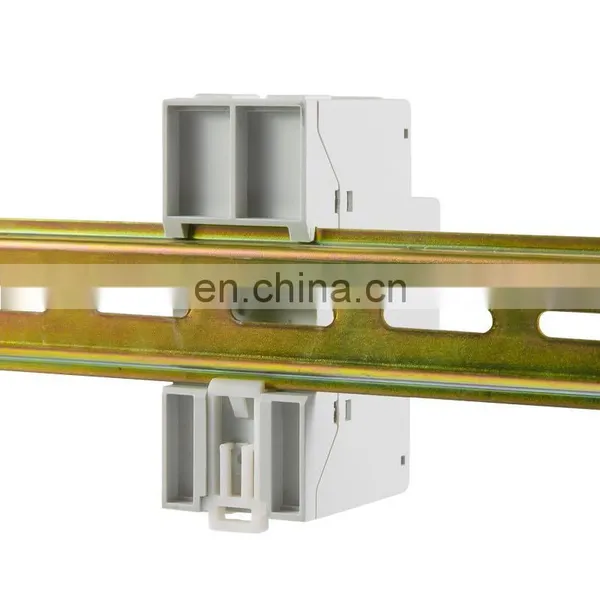

Installation: DIN 35mm
Dimension(L*W*H): 36*90*65mm
Clock: ≤0.5S / per day
Dimension(L*W*H): 36*90*65mm
Clock: ≤0.5S / per day
Working temperature: -25℃~55℃
Specification
Specification |
|||||||
Reference voltage |
AC220V |
||||||
Consumption
|
＜10VA |
||||||
Impedance |
>2MΩ |
||||||
Accuracy |
Error±0.2% |
||||||
Current |
Reference current |
10(80)A |
|||||
Starting current |
0.4%Ib |
||||||
Consumption |
＜4VA |
||||||
Power |
Active, reactive, apparent power, error±1.0℅ |
||||||
Display |
LCD |
||||||
Frequency |
45～65Hz |
||||||
Communication |
RS485, Modbus-RTU protocol |
||||||
Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates；Max demanded kWh and time happened；Frozen data on last 48 month，last 90 days； |
|||||||
Operation Temperature |
-25 ºC~+55 ºC |
||||||
Storage Temperature |
-40 ºC ~+70 ºC |
||||||
Altitude |
≤ 2000m |
||||||
Relative humidity |
≤95%RH, no condensation, without corrosive gas |
||||||
Quotation
Model |
Function |
FOB Shanghai(USD) |
Wholesale price |
||
ADL200 |
Single phase multi-function energy meter |
44 |
Please contact us in detail. We can offer you the best price.
|
||
ADL200-C |
Single phase multi-function energy meter
RS485 Modbus-RTU
|
44 |
|||
ADL200-F |
Single phase multi-function energy meter
Multi tariff energies
|
50 |
|||
ADL200-FC |
Single phase multi-function energy meter
RS485 Modbus-RTU; Multi tariff energies
|
50 |
|||

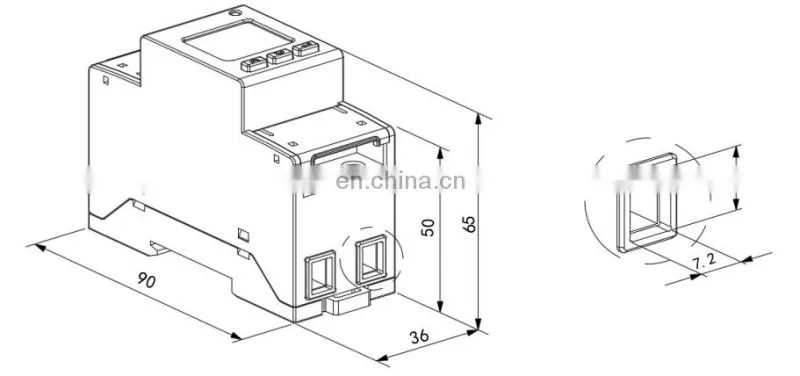

Dimension
Wiring
Packing & Delivery
