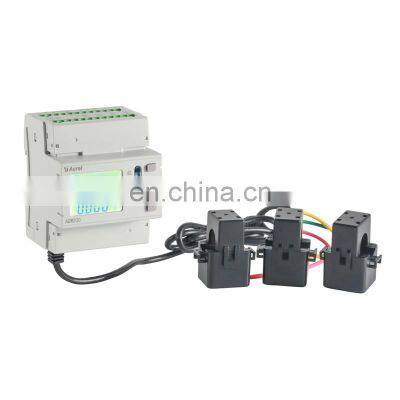

Acrel ADW350 Series 5G Base Station Power Monitoring Din Rail Energy Meter With NB-IOT Communication
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4g Wireless AC/DC Power Meter ADW350WA/4G With 3 CTs for Base StationNegotiableMOQ: 1 -
5G Base Station Din Rail RS485 Modbus Energy Meter ADW350WA/C With 3 Split Core CTsNegotiableMOQ: 1
-
AC Din Rail Three Phase Power Meter ADW350WA With 3 Split Core CTs for Telecom StationNegotiableMOQ: 1
-
5G Base Station Din Rail Wireless DC Energy Meter ADW350WDNegotiableMOQ: 1
-
AC Din Rail Wireless Energy Meter ADW350WA for BTS ProjectNegotiableMOQ: 1
ADW350 Base Station AC Energy Meter
Product Description
Brief Introduction

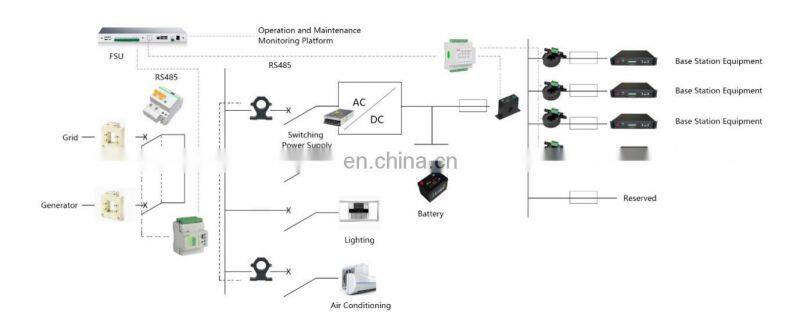

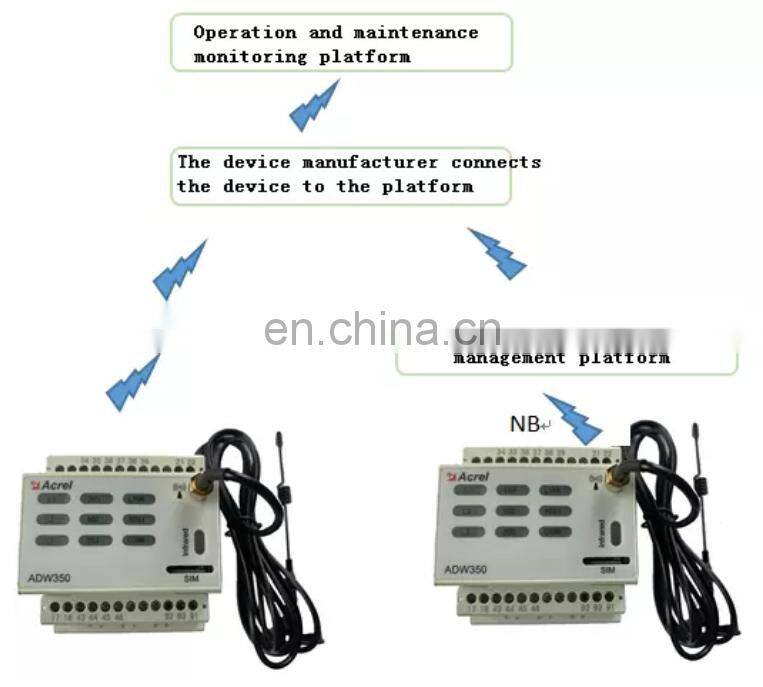

ADW350 Wireless Metering Meter is mainly used to metering three phase active energy on low voltage network. The product boasts of advantages including compact size, high precision, rich features. According to different requirements, there are many communications functions like RS485 communication, NB, 4G, adding the new current sampling mode using external transformer. It can be flexibly installed in the distribution box to achieve sub-item electric energy metering, operation and maintenance supervision or power monitoring requirements for different regions and different loads.
Name |
Model |
Function |
||||
AC energy meter |
ADW350A |
1 channel three phase or 3 channel single phase measurement |
||||
DC energy meter |
ADW350WD |
3 channel dc power measurement |
||||
Optional function |
||||||||
Module |
Function |
Note |
||||||
/C |
RS485 Modbus-RTU |
Contact us for more product information and price information.
|
||||||
/NB |
NB communication |
|||||||
/4G |
4G wireless communication |
|||||||
/KT |
3DO and 2 way temperature measurement |
|||||||

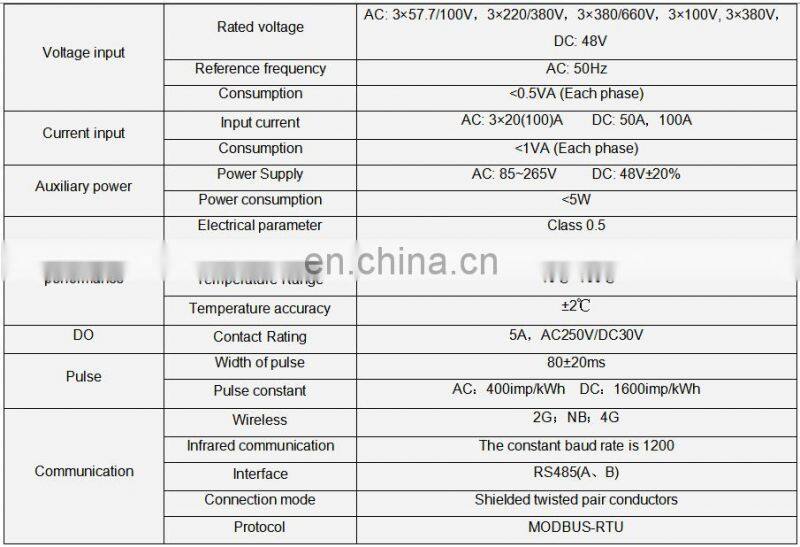

Specification
Dimension
Wiring
Interfaces of Auxiliary power supply, Communication and Pulse
