Home > Products > ADL Series Din Rail Energy Meter > Din Rail Three Phase Energy Meter ADL400 for electrical power monitoring system

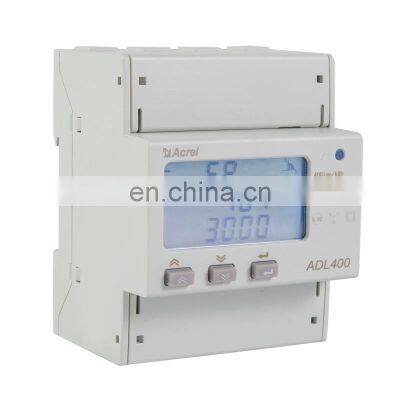

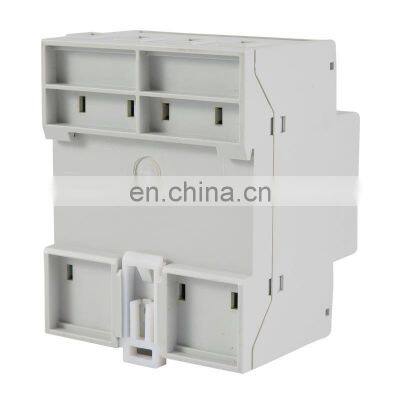

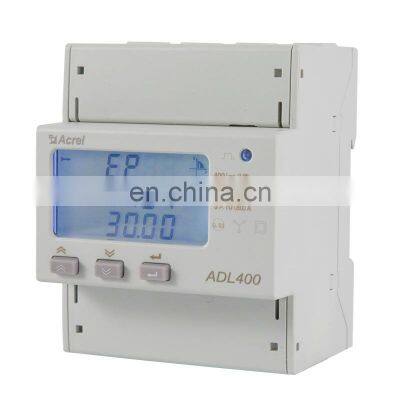

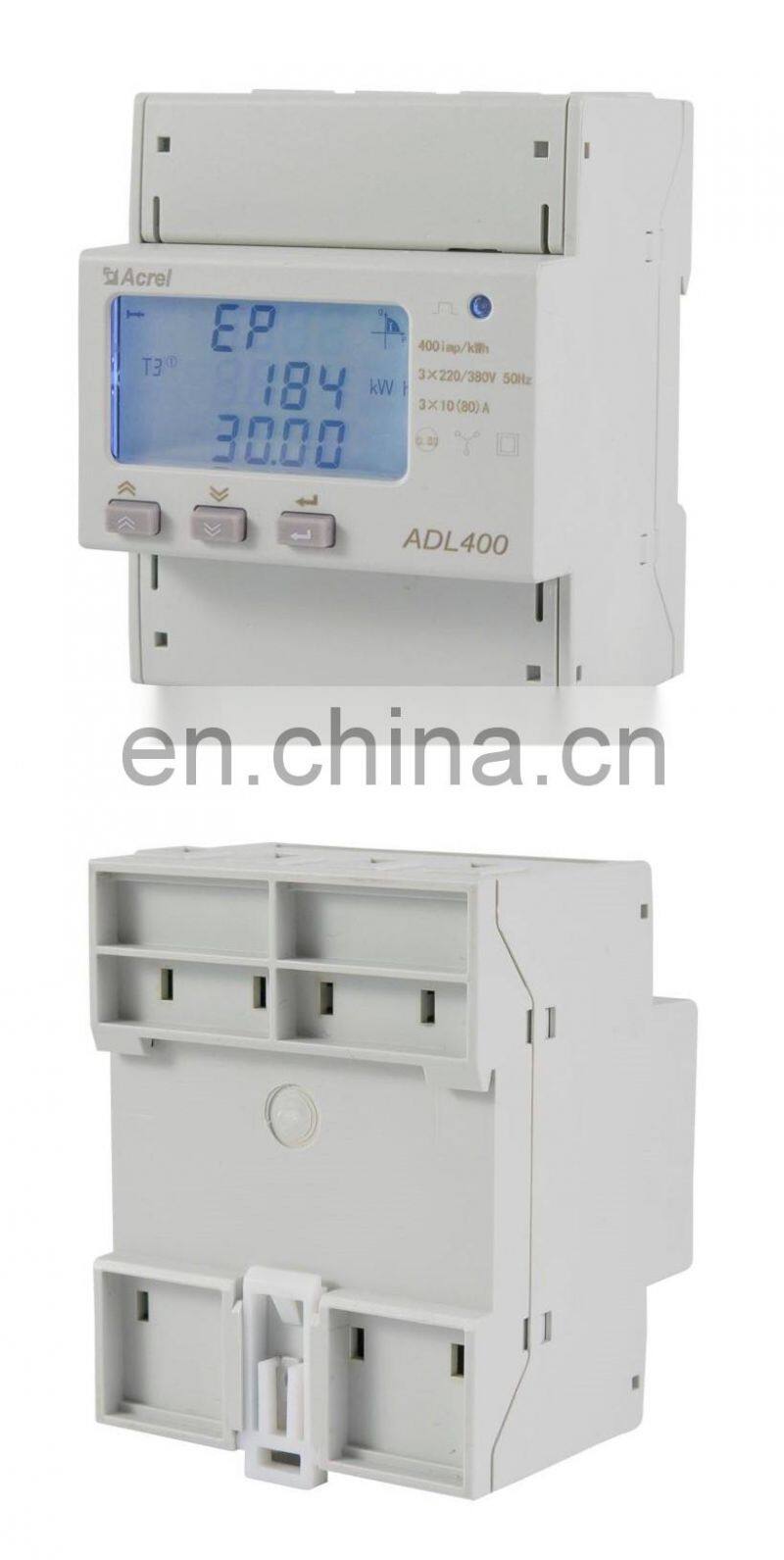

Din Rail Three Phase Energy Meter ADL400 for electrical power monitoring system
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- Acrel Din rail 3 phase energy meter ADL400-C for EV charging CE approved
- Acrel 1 phase kwh energy meter for EV charging pile CE approved
- din rail single phase energy meter ADL200-C for EV charging station CE approved
- Rail-Type Single phase Energy Meter with External Split Core CT ACR10R-D16TE for Solar Inverters
- Acrel AGF-AE-D/200 solar energy meter connected directly to the inverter
- 2P single phase din rail multi tariff energies kwh meter ADL200-FC with RS485 modbus
Product Description
Three Phase Energy Meter
Product Description
Characteristic
Model:ADL400
Rated U : AC3×100V、 3×380V、3×57.7/100V、 3×220/380V
Rated I : 3×1(6)A,3×10(80)A
Display : LCD display U、I、P、Q、S、PF、F
Option function/C: RS485,MODBUS-RTU
Option function/F : Multi tariff energies
Accuracy
kWh: Class 0.5, kVarh:Class 2Frequency
50/60HZ(Optional),range: 45~65HZ
Pulse output
Pulse output kWh/kvarh
Consumption
<10VA(Single phase)
Installation: DIN 35mm
Dimension(L*W*H): 72*90*65mm
Clock: ≤0.5S / per day
Starting current: 0.1%Ib
Dimension(L*W*H): 72*90*65mm
Clock: ≤0.5S / per day
Starting current: 0.1%Ib
Communication:RS485(Modbus-RTU)
Working temperature: -25℃~55℃

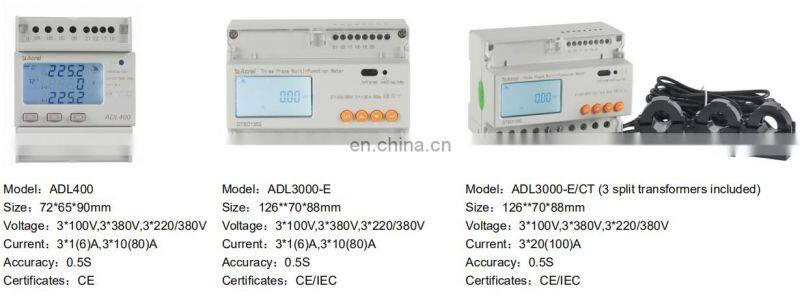

Type selection

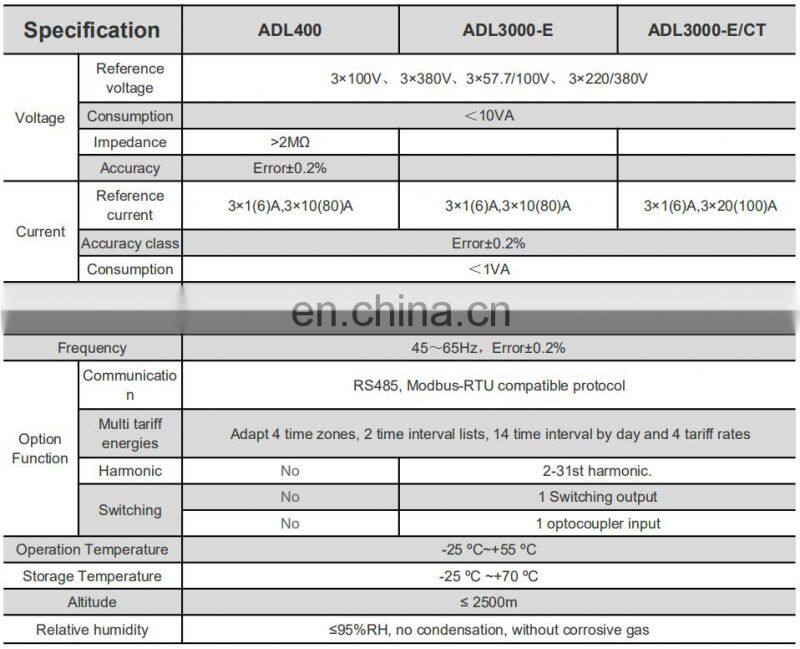

Specification
Quotation
Model | Function | FOB price | Wholesale price | ||
ADL400 | 4P three phase kwh meter, 1(6)A or 10(80)A | 66.6 | |||
ADL400/C | 4P three phase kwh meter, 1(6)A or 10(80)A /C: RS845 Modbus-RTU Communication | 66.6 | |||
4P three phase kwh meter, 1(6)A or 10(80)A /F: Multi tariff energies /C: RS845 Modbus-RTU Communication | 72..5 | ||||
ADL3000-E | 7P three phase kwh meter, 1(6)A or 10(80)A | 70 | |||
ADL3000-E/C | 7P three phase kwh meter, 1(6)A or 10(80)A /C: RS845 Modbus-RTU Communication | 76.3 | |||
7P three phase kwh meter, 1(6)A or 10(80)A /F: Multi tariff energies /C: RS845 Modbus-RTU Communication | 82.6 | ||||
ADL3000-E/CT | 7P three phase kwh meter with CT, 20(100)A | 101.5 | |||
ADL3000-E/CTC | 7P three phase kwh meter with CT, 20(100)A /C: RS845 Modbus-RTU Communication | 107.8 | |||
7P three phase kwh meter with CT, 20(100)A /F: Multi tariff energies /C: RS845 Modbus-RTU Communication | 114.1 |

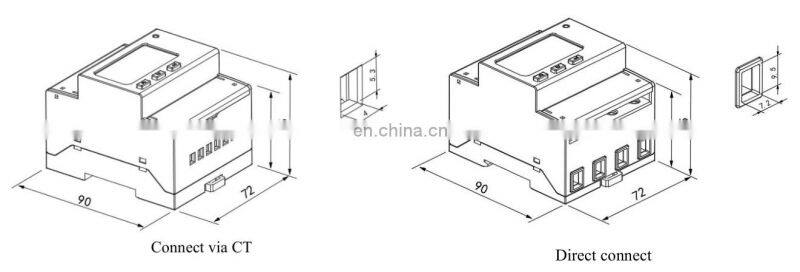

Dimension
Note:The torque of direct connect should not be greater than 4.0N·m,and the torque of connect via CT should not be greater than 2.0N·m。

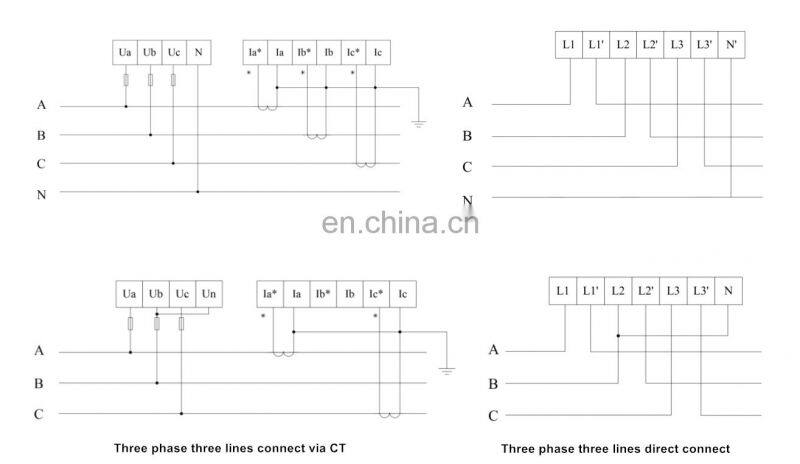

Wiring
