Acrel 6 channel single phase Combination Multi-Circuits power meter ADF400L-6D

Name: Acrel 6 channel single phase Combination Multi-Circuits power meter ADF400L-6D
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

ADF400L Multi-Circuits Energy Meter

Product Description

Characteristic

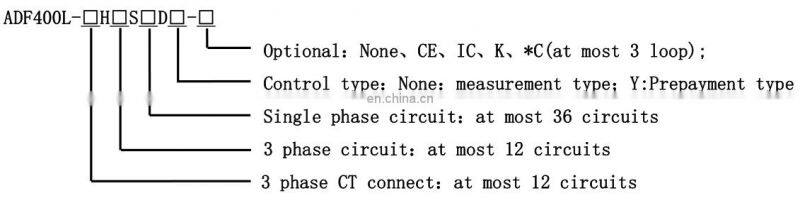

Model	ADF400L-2S	ADF400L-3H	ADF400L-4H	ADF400L-6D
Channel	2 channel 3 phase	3 channel 3 phase	4 channel 3 phase	3 circuits single phase
Current input	3*10(80)A	3*1(6)A	3*1(6)A	10(80)A
Voltage input	3*220/380V	3*220/380V	3*220/380V	220V
Price (FOB Shanghai)	$155	$155	$155	$155

Product description

Note: 1、this product is combined with main module , direct connect and CT connect module；
2、This product can be max 12 circuits 3 phase (36 circuits single phase)

Specification

Product module description

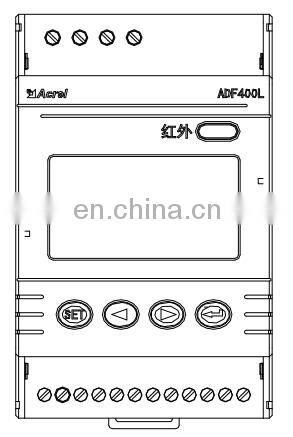

Main module
* 3 phase 3 * 220 / 380V power supply, providing power for later measurement module； * HMI：LCD and button * Infrared； * RF（IC card）； * 2 channel RS485 modbus-rtu（C function）； 3 rd wireless module RS485communication（RJ45 connection）； * Max 2DI/2DO（K function）； * Max 1circuits ethernet（CE function）；

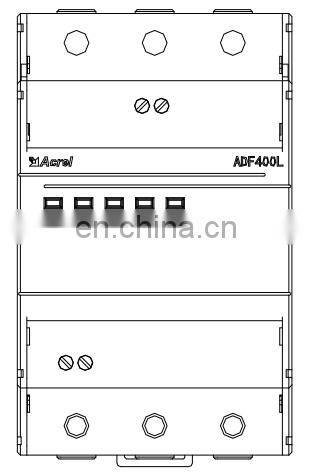

Direct connect
* 1 channel 3 phase 310（80）or 3 circuits single phase 10（80）A; 1 channel pulse output； * 3 phase working condition、pulse and communication LED；

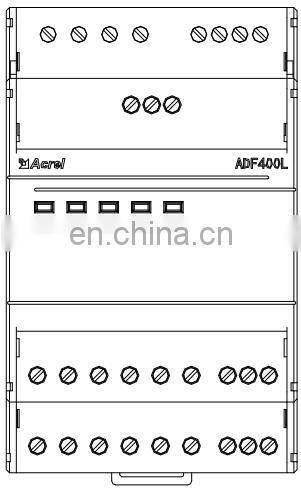

CT connect
* 2 channel 3 phase 31（6）A； 2 channel pulse output； * 2 channel working condition、pulse and communication LED； * Max 4DI/4DO（K function）；

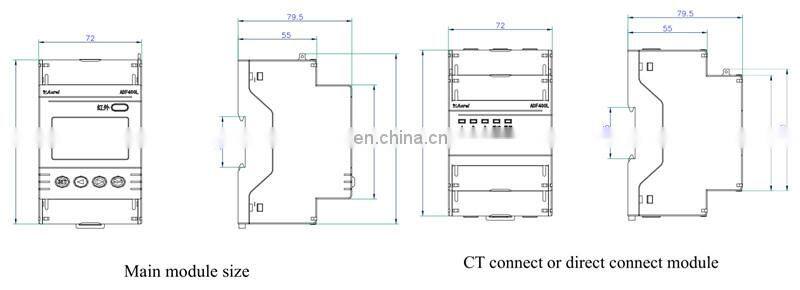

Dimension

Packing & Delivery
