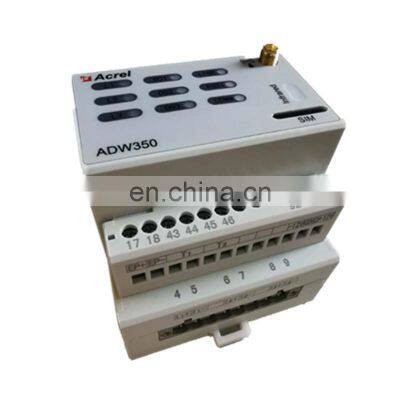

ADW350 Wireless Energy Meter
Product Description
General
ADW350 wireless energy meter is mainly used for measuring low voltage network of three-phase active power, has the advantages of small size, high precision, feature-rich, and optional communication way, more can support RS485 communication and Lora, 2 g, NB,4g wireless communication methods, increased external CT , and convenient for the user to install and use in different occasions.It can be flexibly installed in the distribution box to realize the demand of electricity metering, operation and maintenance supervision or power monitoring for different areas and different loads.
Display: Light-emitting diode indication
Accuracy:
Voltage,current and power:class 0.5
Active powe:class 1.0Frequency: 50Hz
Power Supply: AC 85V~265V or DC 48V
Pulse constant:
AC 400imp/kWh DC1600imp/kWh ;
Input consumption
Voltage:Power consumption:<0.5VA;
Current:Power consumption:< 1.0VA;
Power supply:power consumption≤5W
Input consumption
Voltage:Power consumption:<0.5VA;
Current:Power consumption:< 1.0VA;
Power supply:power consumption≤5W
Installation: DIN35mm
Dimension(L*W*H): 72*87.8*71.5mm
Switch relay: DC 30V/5A AC 250V/5A
Dimension(L*W*H): 72*87.8*71.5mm
Switch relay: DC 30V/5A AC 250V/5A

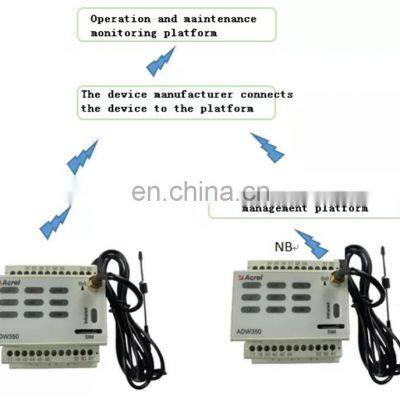

Communication:
Infrared communication
RS485（optional C)
GPRS（optional 2G）
NB-IOT（optional NB）
4G（optional 4G）

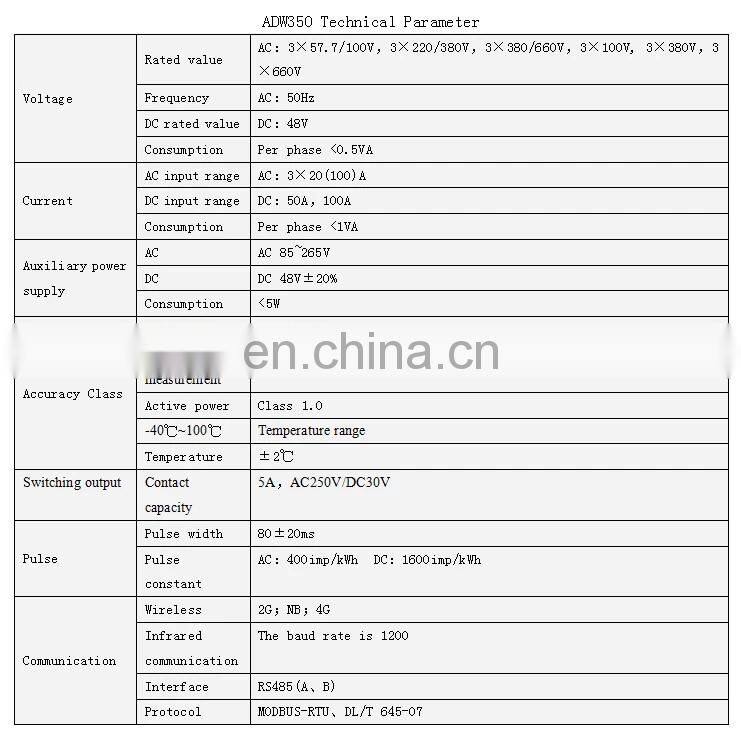

Specification
Main function
Function |
Functional specifications |
||||||
Display mode |
Light-emitting diode indication |
||||||
Electric energy metering |
Active power measurement (positive and negative), Four quadrant reactive energy |
||||||
Power measurement |
Voltage, current, power factor, frequency, active, reactive, apparent power |
||||||
DC power parameters measurement |
Voltage, current, active power, |
||||||
Harmonic |
THD、2-31st individual harmonic distortion |
||||||
Pulse output |
Active pulse output |
||||||
Three-phase unbalance degree |
Degree of voltage and current unbalance |
||||||
Temperature measurement |
2 channels（optional T） |
||||||
DI/DO |
3DO（optional K） |
||||||
External CT or hall sensor |
External CT or hall sensor（optional W） |
||||||
Alarm |
Undervoltage, overvoltage, undercurrent, overcurrent, underload, overload, etc |
||||||
Communication
|
Infrared communication |
||||||
RS485（optional C） |
|||||||
GPRS（optional 2G） |
|||||||
NB-IOT（optional NB） |
|||||||
4G（optional 4G） |
|||||||

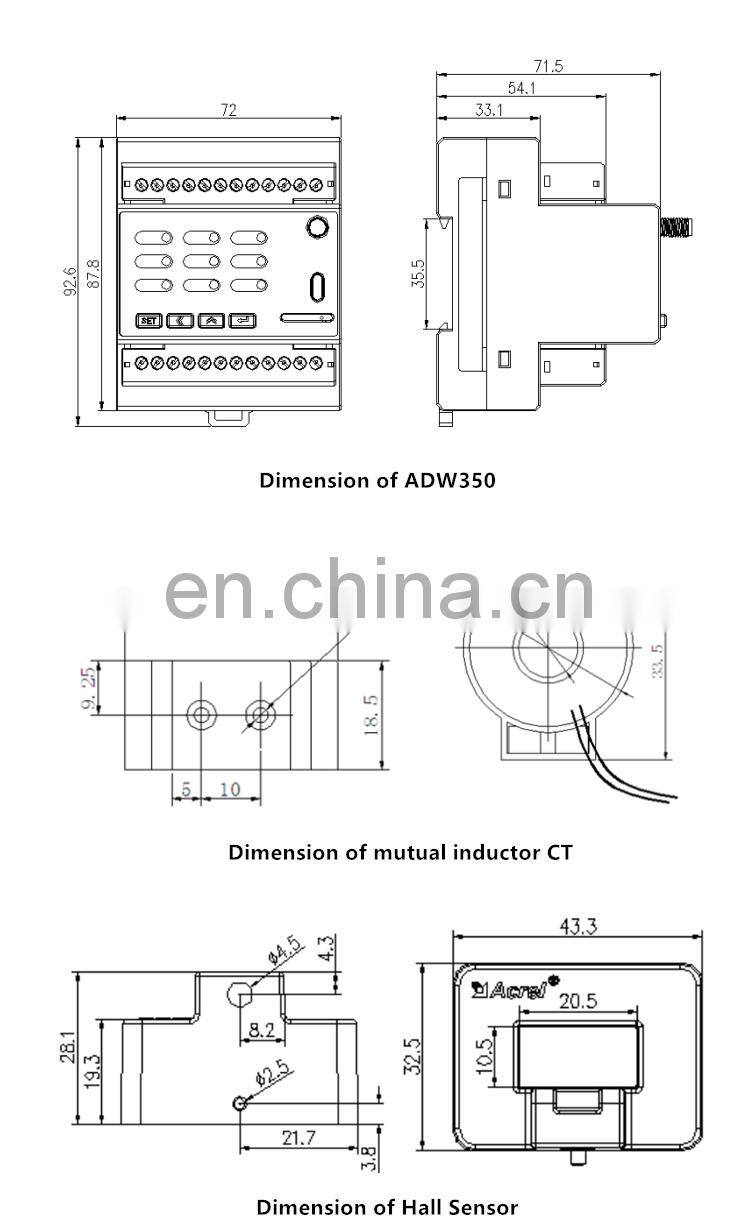

Dimension
