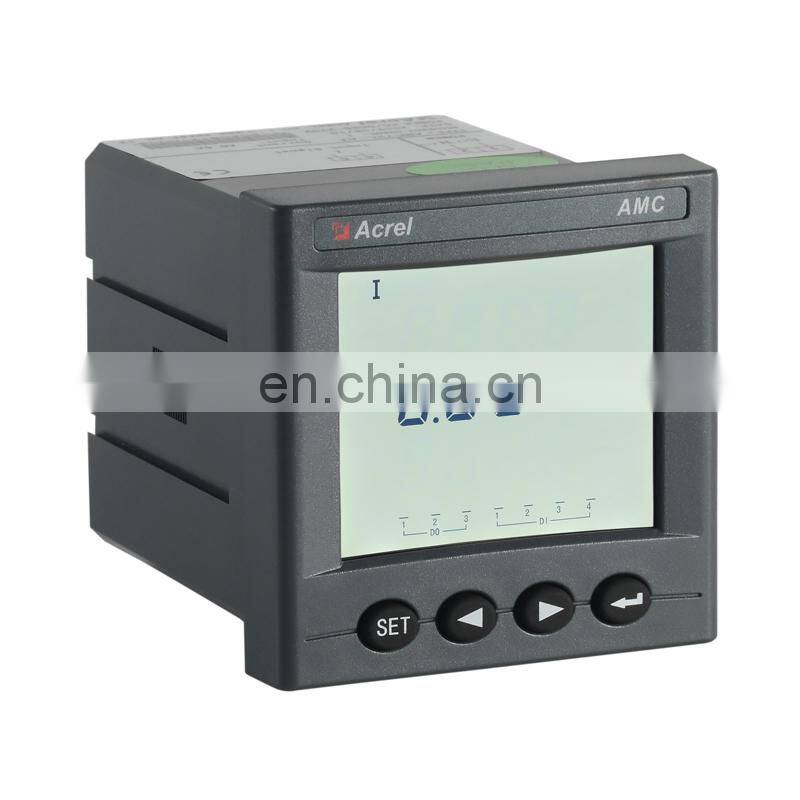

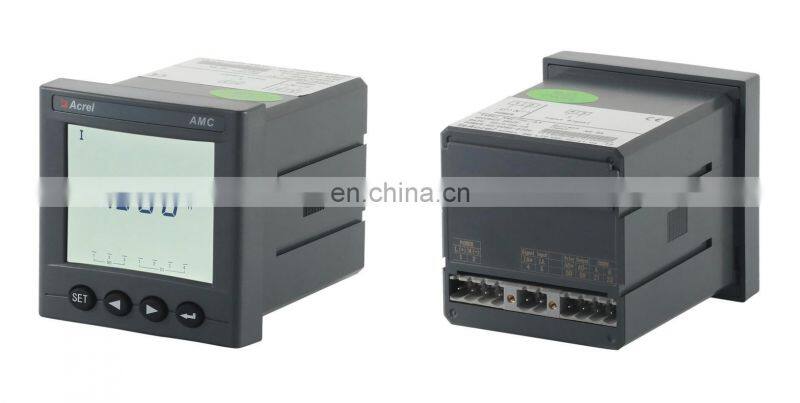

AMC72L-AI AC Single Phase Current Meter
Product Description
Characteristic
Rated I :Current:AC 1A,5A
Four keys to communication and set parameters

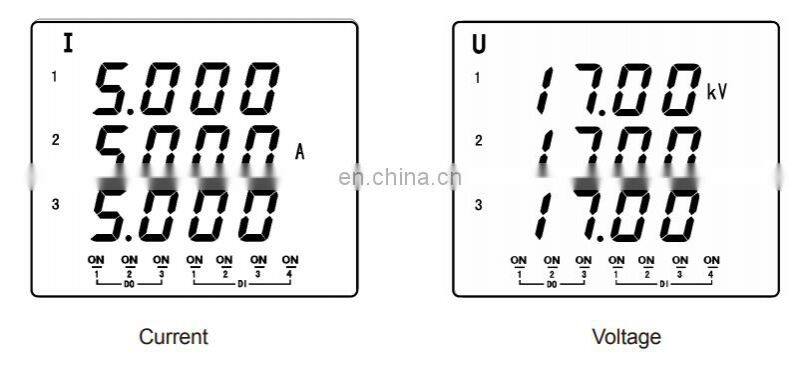

LCD display for three phase current measurement
LCD display for three phase current measurement
Display: LCD display
Option function/C:RS485, Modbus-RTU DL/T645-07/97
Option function/M: 1 analog output(programmable 4-20mA)
Option function/K: 2DI/2DO
Option function/J: 1 alarm output
Accuracy
Active energy: Class 0.5
Auxiliary power supply
AC 220V
Consumption
Current: Power consumption< 0.5VA;
Auxiliary power supply: power consumption≤5VA
Panel mounted
Dimension(L*W*H)
Panel size (L×W): 75*75mm
Cutout(L×W): 67*67mm
Housing (L×W×H): 66*66*94.3mm
Switch relay
DC 30V/3A AC 220V/3A
Starting current
0.3%
Specification
Specification | |||||||
Current | Reference current | AC 1A,5A | |||||
Overload | 1.2 times rated value(continuous); 10 times rated value (1 second) | ||||||
Consumption | < 0.5VA | ||||||
Display | LCD | ||||||
Function | Communication | RS485, Modbus-RTU compatible protocol | |||||
Analog output | Contact capacity: 3A/30V DC, 3A/250V AC 0~5V,0~20mA,4~20mA programmable | ||||||
Switching | 2 channels or 4 channels passive contact input mode | ||||||
Output mode:2 channel relay NO contact output | |||||||
Alarm | 1 alarm output | ||||||
Power supply | Voltage range | AC/DC 85~265V | |||||
consumption | ＜5VA | ||||||
Operation Temperature | -10 ºC~+55 ºC | ||||||
Storage Temperature | -25 ºC ~+70 ºC | ||||||
Insulation resistance | ≥100MΩ | ||||||
Power frequency withstand voltage | Between power supply set of terminals and signal Input, output set of terminals 2kV/1min (RMS) | ||||||
Altitude | ≤ 2500m | ||||||
Relative humidity | ≤93%RH, no condensation, without corrosive gas | ||||||
Dimension
faceplate size | housing size | cutout size | cutout size | ||||||||
width | height | width | height | depth | width | height | |||||
72 square | 75 | 75 | 66.5 | 66.5 | 94.3 | 67 | 67 | ||||
96 square | 96 | 96 | 90 | 90 | 77.8 | 92 | 92 | ||||
Wiring
