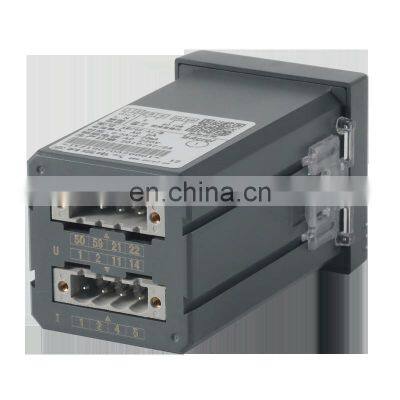

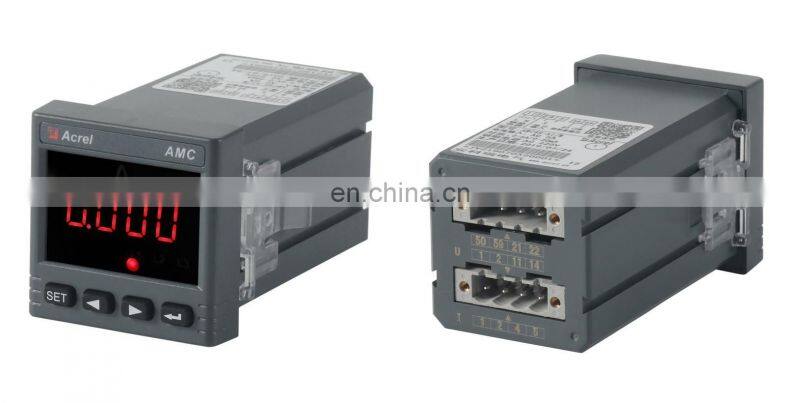

AMC48-AI3 AC Current Meter
Product Description
AMC Series programmable intelligent current meter, adopting AC sampling technology, can measure current. It can be used for local display, and connecting industrial control device to form measurement and control system.
Characteristic
Rated U : Current:AC 1A or 5A
Display: LED display
Accuracy
Class 0.5
Frequency
Range: 45-65Hz
Auxiliary power supply
AC/DC 85-265V
Consumption
Voltage:Power consumption: <0.5VA;
Current:Power consumption:< 0.5VA;
Auxiliary power supply:Consumption<5VA
Frequency
Range: 45-65Hz
Auxiliary power supply
AC/DC 85-265V
Consumption
Voltage:Power consumption: <0.5VA;
Current:Power consumption:< 0.5VA;
Auxiliary power supply:Consumption<5VA
Pannel mounted
Dimension(L*W*H)
Pannel size(L×W):49*49mm
Cutout(L×W):45*45mm
Housing(L×W×H):45*45*93mm
Relay
3A/30VDC,3A/250VAC
Humidity
≤93%RH,no condensation
Specification
Specification | |||||||
Reference current | AC1A or 5A | ||||||
Consumption
| ＜0.5VA | ||||||
Frequency | 45-60Hz | ||||||
Accuracy class | Error±0.5% | ||||||
Display | LED | ||||||
Power supply | Voltage range | AC/DC85-265V | |||||
consumption | ＜5VA | ||||||
Operation Temperature | -10 ºC~+55 ºC | ||||||
Storage Temperature | -25 ºC ~+70 ºC | ||||||
Insulation resistance | ≥100MΩ | ||||||
Altitude | ≤ 2500m | ||||||
Relative humidity | ≤93%RH, no condensation, without corrosive gas | ||||||
