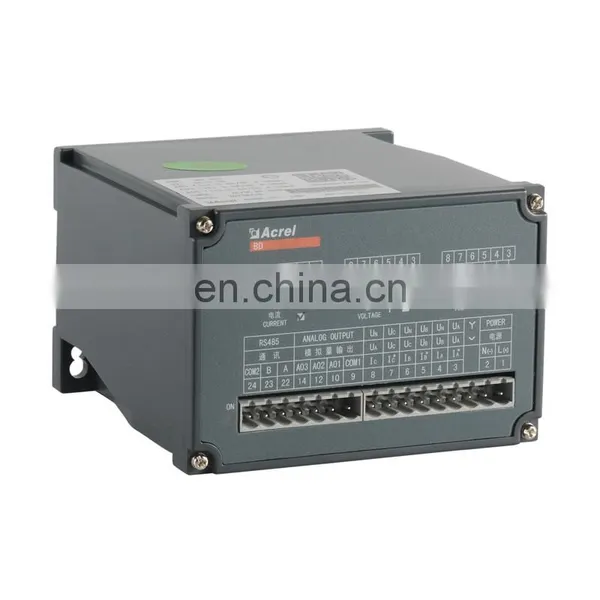

3 Phase Current Transducer BD-3I3 AC Current Transmitter With 4-20ma / 0-5v Output
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DC Current Transducer BD-DI Electricity TransmitterNegotiableMOQ: 1 -
Acrel BD-DV dc Voltage Transformer Input 0-10v/0-75mV With 4-20mA Analog OutputNegotiableMOQ: 1
-
AC Current Transducer BD-AI Measuring 0-5A With 4-20mA Analog OutputNegotiableMOQ: 1
-
Acrel 0-5A Measurement Single Phase AC Current Transducer/sensor BD-AI With Factory PriceNegotiableMOQ: 1
-
BD-AI Acrel AC 1A 5A Measuring Range Single Phase Current Transducer With RS485NegotiableMOQ: 1
AC Three Phase Current Transducer
Product Description
Characteristic
General
BD series is olate and convert electrical parameters(e.g.current,voltage,frequency,power and power factor) in the power grid into DC analog signal or digital signal.
Standards
IEC/EN61869-1,IEC/EN61869-2
* Input: AC 1A or 5A
* Output: DC4-20mA,0-20mA,0-5V,0-10V
* Accuracy: Class 0.5
* Power supply: AC85-265V / DC24V
* Frequency: 45-65Hz
* Frequency: 45-65Hz
* Response time: <400ms
* Insulation resistance: ≥100MΩ* Continuous overload: 120%In
* Environment:
Operating temperature:-10℃ ~ +55℃
Storage temperature:-25℃ ~ +70℃
Humidity, ≤95%RH, no dew, no aggressive gas
Storage temperature:-25℃ ~ +70℃
Humidity, ≤95%RH, no dew, no aggressive gas
* Altitude: ≤2500m
* Installation method: TS35mm rail or screw
Type |
Function |
FOB Shanghai (USD) |
||
BD-3I3 |
Input AC1A or 5A; Output:4-20mA or 0-5V Power supply:AC/DC85-270V or DC24V
|
84 |
||
BD-3V3 |
Input AC0-120V,0-300V,0-500V; Output:4-20mA or 0-5V Power supply:AC/DC85-270V or DC24V
|
84 |
||
Specification
Dimension

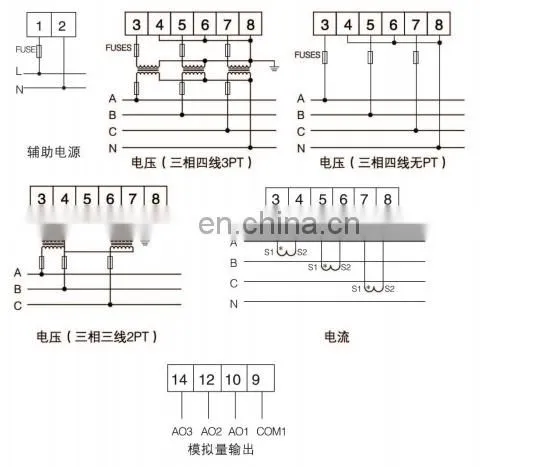

Wiring
