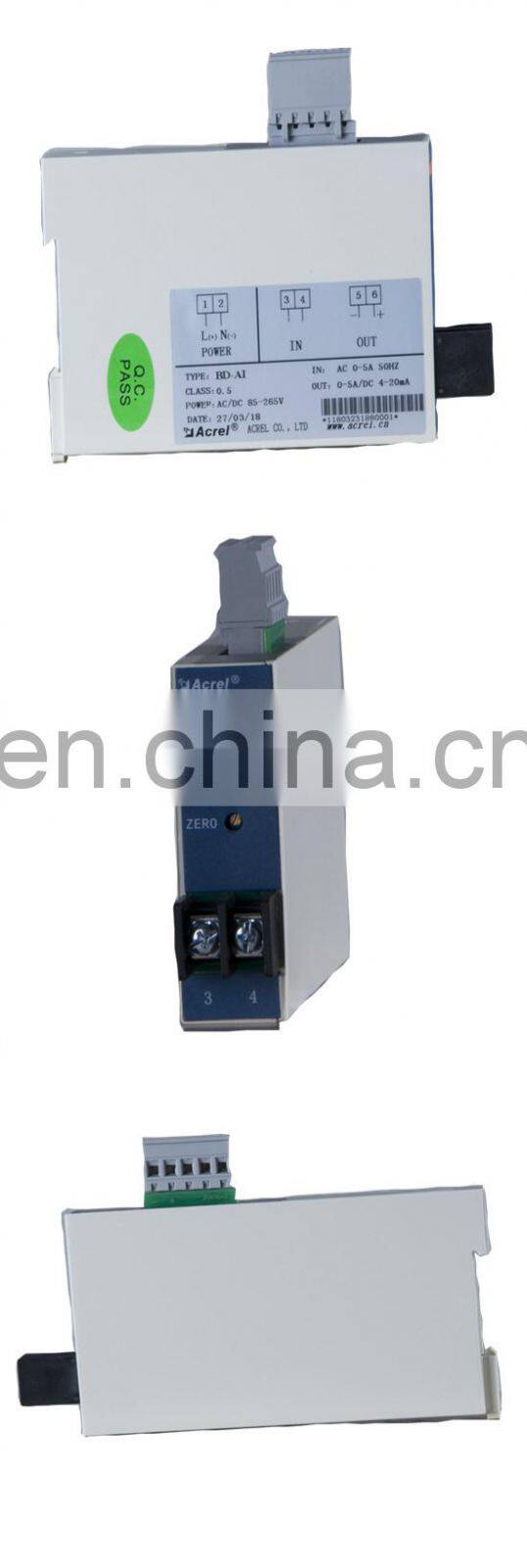

Help CenterAcrel BD-DV dc Voltage Transformer Input 0-10v/0-75mV With 4-20mA Analog Output
Related Products
-
AC Current Transducer BD-AI Measuring 0-5A With 4-20mA Analog OutputNegotiableMOQ: 1 -
Acrel 0-5A Measurement Single Phase AC Current Transducer/sensor BD-AI With Factory PriceNegotiableMOQ: 1
-
BD-AI Acrel AC 1A 5A Measuring Range Single Phase Current Transducer With RS485NegotiableMOQ: 1
-
Single Phase Current Transducer BD-AI/C With RS485 CommunicationNegotiableMOQ: 1
-
Acrel Energy Transducer 3p4w Multi-electric Transmitter BD-4E With RS485 CommunicationNegotiableMOQ: 1
BD series electricity transducer
General
BD series is olate and convert electrical parameters(e.g.current,voltage,frequency,power and power factor) in the power grid into DC analog signal or digital signal.The product complies with GB/T13850-1998 and IEC-688.
Technical Features
Dimension
| Model | Function | FOB Shanghai USD |
| BD-AI | AC Single-phase Current transducer Input:0-1/5A;Output:4-20mA or 0-5V;AC/DC85-270V or DC24V | 35 |
| BD-AI2 | AC Single-phase Current transducer Input:0-1/5A;Output:2 way 4-20mA or 0-5V;AC/DC85-270V or DC24V | 42 |
| BD-AI/C | AC Single-phase Current transducer Input:0-1/5A;Output:4-20mA or 0-5V;AC/DC85-270V or DC24V /C: RS485 Communication(Modbus-RTU protocol) | 41.3 |
| BD-AV | AC Single-phase Voltage transducer Input:0-120/300/500V;Output:4-20mA or 0-5V;AC/DC85-270V or DC24V | 35 |
| BD-AV2 | AC Single-phase Voltage transducer Input:0-120/300/500V;Output:2 way 4-20mA or 0-5V;AC/DC85-270V or DC24V | 42 |
| BD-AV/C | AC Single-phase Voltage transducer Input:0-120/300/500V;Output:4-20mA or 0-5V;AC/DC85-270V or DC24V /C: RS485 Communication(Modbus-RTU protocol) | 41.3 |
| BD-DI | DC Single-phase current transformer Input:DC4-20mA,0-20mA;Output:4-20mA or 0-5V;AC/DC85-270V or DC24V | 57.4 |
| BD-DV | DC Single-phase voltage transformer Input:DC0-10V,0-75mV Output:4-20mA or 0-5V;AC/DC85-270V or DC24V
| 57.4 |

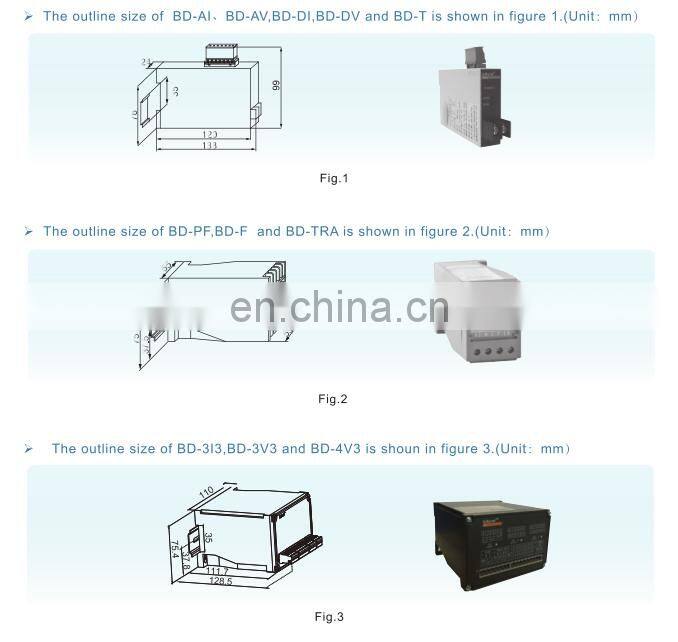

Dimension

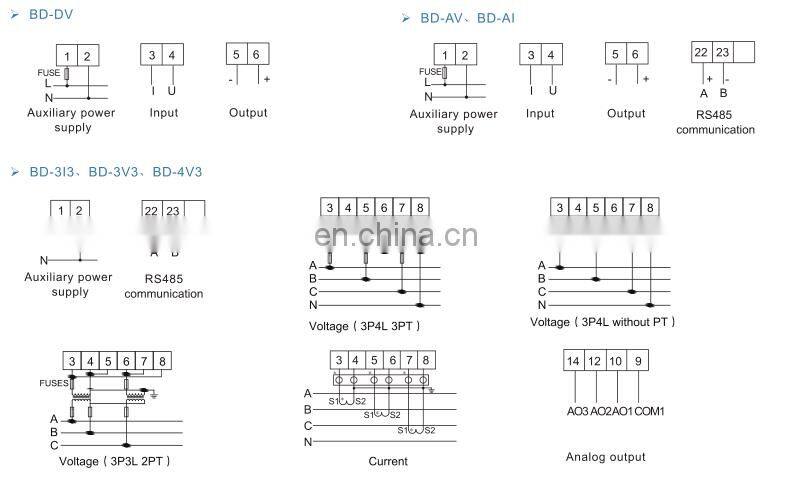

Wiring
