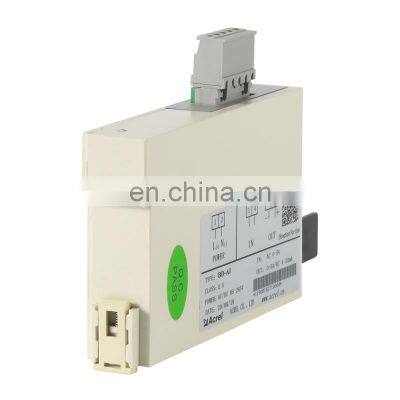

Acrel 0-5A Measurement Single Phase AC Current Transducer/sensor BD-AI With Factory Price

Acrel Electric Co., Ltd

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Manufacturer

Year Established:

2003

Factory Size:

3,000-5,000 square meters

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

BD-AI

Single Phase AC Current Transducer

* Single phase AC current Measurement
* Overload: 1.2 times of rated value
* Analog Output DC 0-5V/0-10V/0-20mA/4-20mA

INFORMATION

Characteristic

Model: BD-AI

Current input: AC0-1A or 0-5A

Output: DC 0-5V/0-10V/0-20mA/4-20mA

Auxiliary power supply: AC85-265V/DC100-350V/DC24V/DC48V

Accuracy: class 0.5

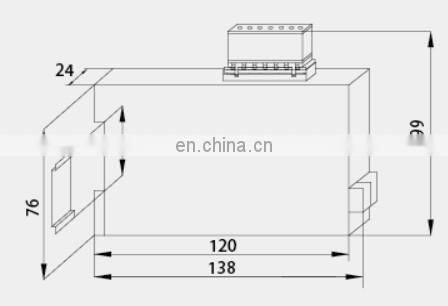

Spec. and size

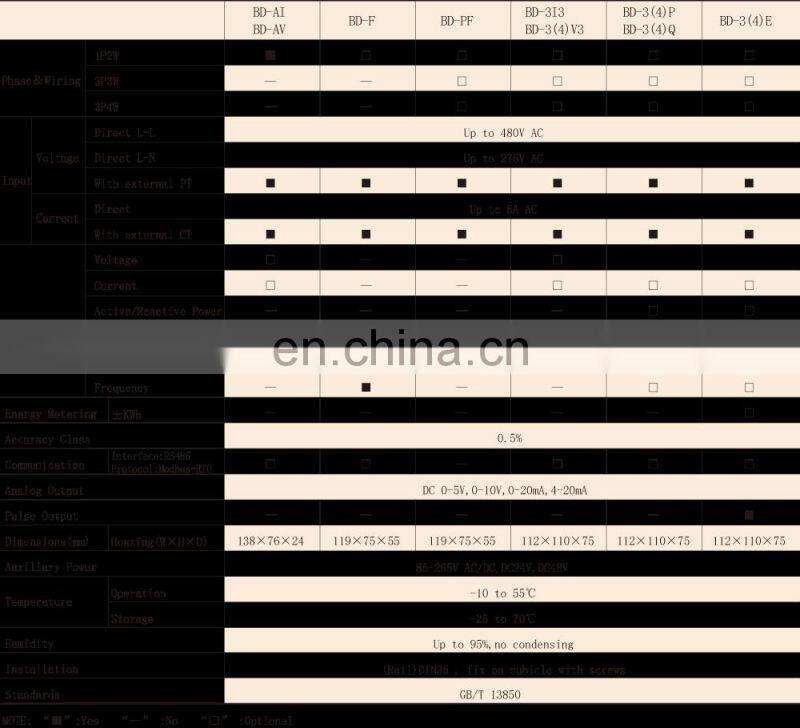

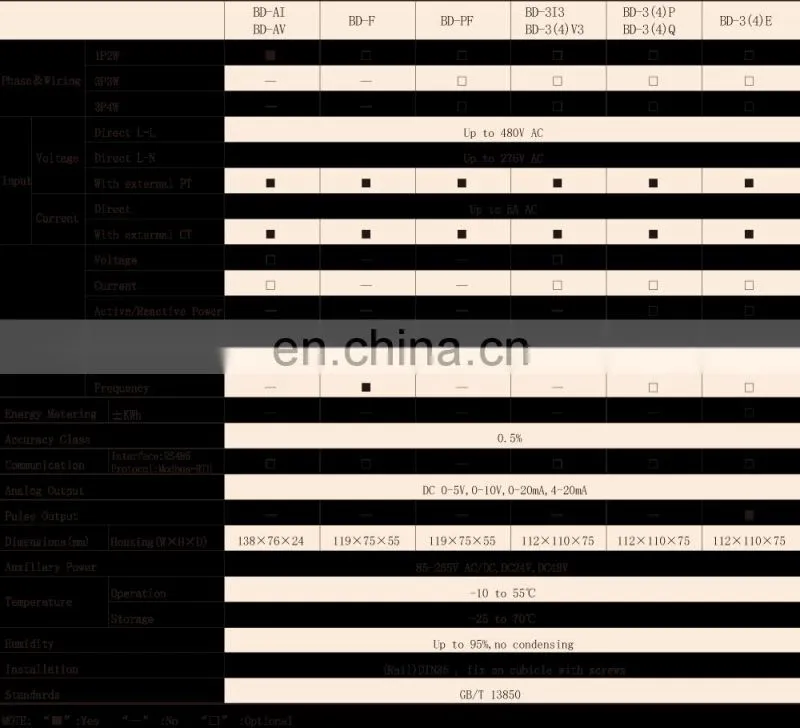

PARAMETER

Type	Function	Output(4 selection1)	Unit Price
BD-AI	Current Transducer AC	4~20mA 0~20mA 0~5V 0~10V	37.1
BD-AI/C	Current Transducer AC with RS485		43.4
BD-AV	Voltage Transducer AC		37.1
BD-DI	Current Transducer DC		57.4
BD-DV	Voltage Transducer DC		57.4
BD-3I3	Three phase current Transducer		84
BD-3V3	3p3w three phase voltage transducer		84
BD-4V3	3p4w three phase voltage transducer		84
BD-3P, BD-4P	Active power transducer		95.2
BD-3Q, BD-4Q	Reactive power transducer		95.2
BD-3P/Q/I	Multifunctional power transducer combination transducer		112
BD-F	Frequency transducer		51.1
BD-PF	power factor transducer		67.2
BD-3E	3p3w Multi-electric transducer		150.5
BD-4E	3p4w Multi-electric transducer		150.5
