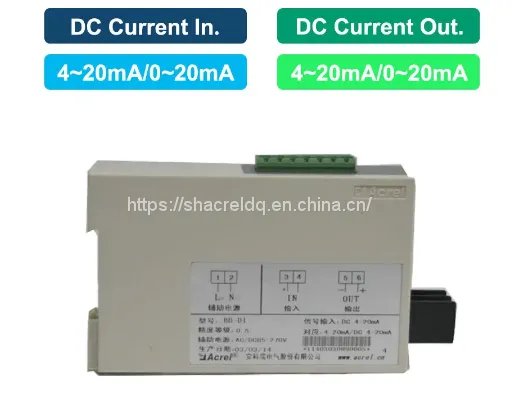

DC Current Transducer BD-DI (1-phase 2-wire)


▋ General

      Series BD electric transmitters is a device which cam isolate and transmit electric parameters ,such as current, voltage, frequency ,power ,power factor, into linear DC analog signal or digital signal. It meet the requirements of National standard GB/T13850-1998, IEC-688.


▋ Product Overview

● Measurement: 1-phase DC Current
● Accuracy: Class 0.5
● Input: 4~20mA/0~20mA DC
● Output: 4~20mA/0~20mA DC or 0~5V/0~10V DC
● Power Supply: 85~265V AC(50Hz) or 100~350V DC or 24V DC
● Wiring: 1-phase 2-wire
● Applicaiton: Paired with PLC for Industrial Automation; Used for Metering
● Response Time: ≤400ms
● Installation: 35mm DIN Rail/Screw fixed
● Standard&Certificate: CE

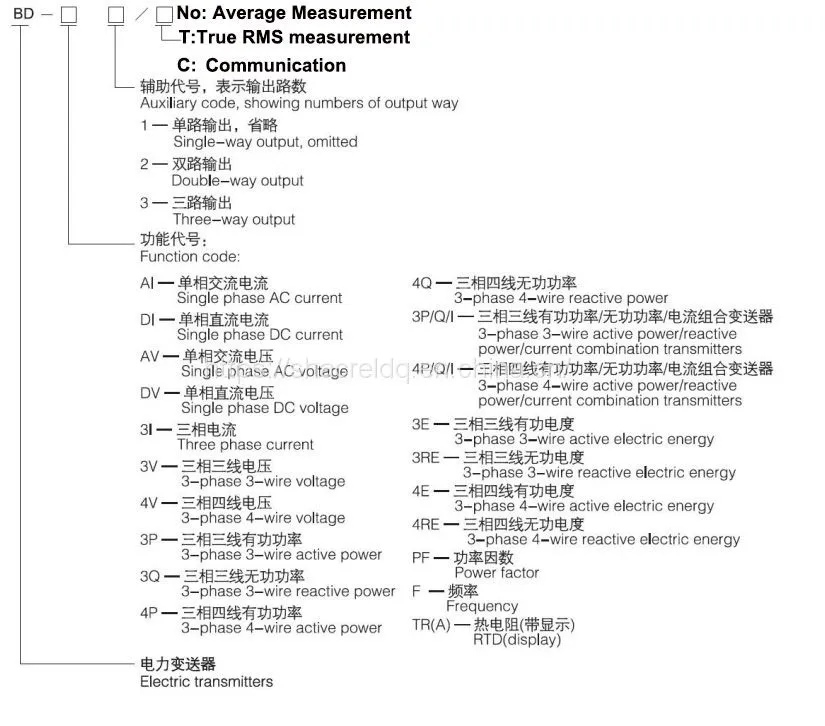

▋ Type explanation

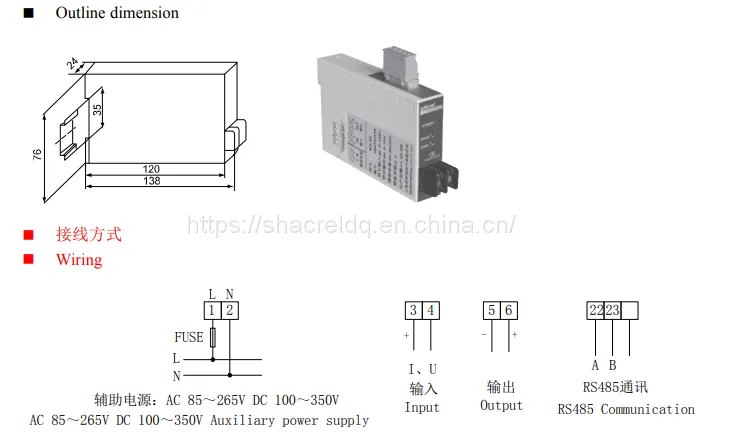

▋ Dimension&Wiring

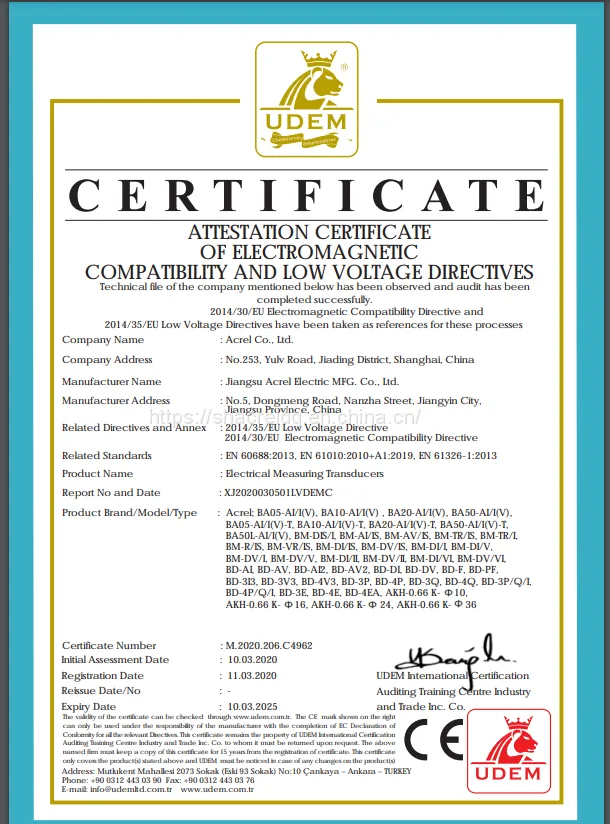

▋ Certificate


▋ Work Site Application

Work Site Installation of AKH-0.66/K-φ Series Split Core Current Transformer
