0.5 High Accuracy Input AC 0-5a or 0-1a Current Transducer With 4-20mA Output

0.5 High Accuracy Input AC 0-5a or 0-1a Current Transducer With 4-20mA Output thumbnail-1
0.5 High Accuracy Input AC 0-5a or 0-1a Current Transducer With 4-20mA Output thumbnail-2
0.5 High Accuracy Input AC 0-5a or 0-1a Current Transducer With 4-20mA Output thumbnail-3
0.5 High Accuracy Input AC 0-5a or 0-1a Current Transducer With 4-20mA Output thumbnail-4
0.5 High Accuracy Input AC 0-5a or 0-1a Current Transducer With 4-20mA Output thumbnail-5
0.5 High Accuracy Input AC 0-5a or 0-1a Current Transducer With 4-20mA Output photo-1
0.5 High Accuracy Input AC 0-5a or 0-1a Current Transducer With 4-20mA Output photo-2
0.5 High Accuracy Input AC 0-5a or 0-1a Current Transducer With 4-20mA Output photo-3
0.5 High Accuracy Input AC 0-5a or 0-1a Current Transducer With 4-20mA Output photo-4
0.5 High Accuracy Input AC 0-5a or 0-1a Current Transducer With 4-20mA Output photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Contact Supplier Request Quote Chat Now
Acrel Electric Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
AC Current Transducer

Product Description

Characteristic

General
BD Series transducer is a kind of device which can isolate and transmit electric parameters such as current, voltage
frequency,power,power factor or temperature,resistance and so on non-electrical parameters,into linear DC analog signal or digital signal. They can directly connect with the pointer table, digital meters, also can connected with automatic control devices (eg PLC), a variety of A / D converter, and the computer system.
Standards
IEC/EN61869-1,IEC/EN61869-2

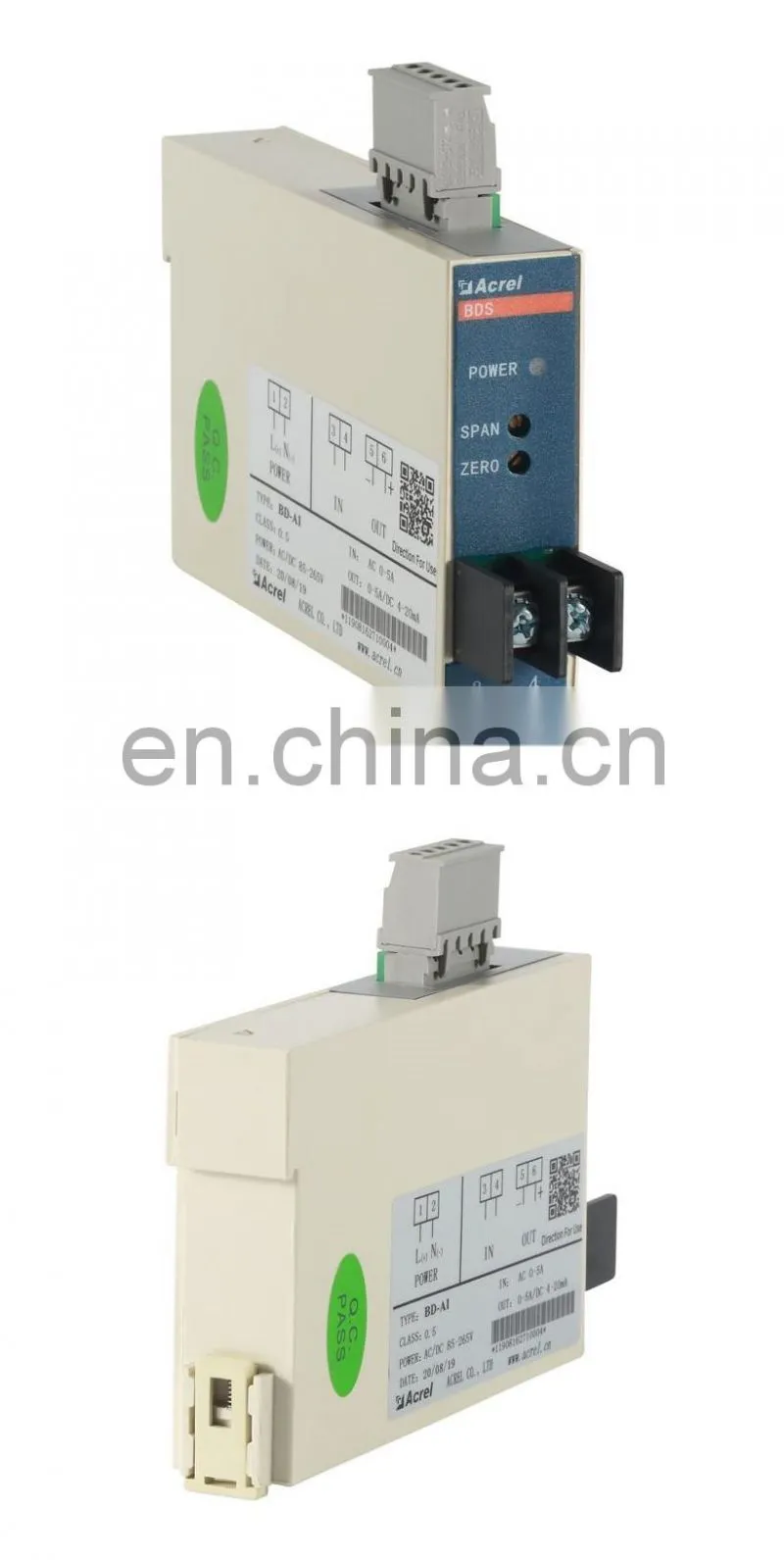

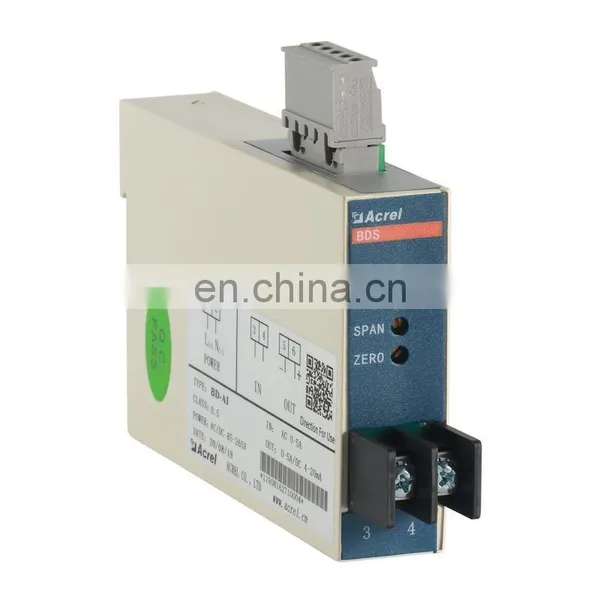

Model: BD-AI
Input: AC0-5A or 0-1A
Output: DC4-20mA,0-20mA,0-5V,0-10V
Accuracy: Class 0.5
Power supply: AC85-265V / DC24V
Frequency: 45-65Hz




Response time: <400ms
Insulation resistance: ≥100MΩ
Continuous overload: 120%In
Environment:
Operating temperature:-10℃ ~ +55℃
Storage temperature:-25℃ ~ +70℃
Humidity: ≤93%RH
Altitude: ≤2500m
Installation method: TS35mm rail or screw
Quotation
Type
Function
FOB Shanghai (USD)
BD-AI
AC current transducer
Input: AC0-1/5A   Output: 4-20mA or 0-5V
31.8
BD-AV
AC voltage transducer
Input: AC0-100/300/500V Output: 4-20mA or 0-5V
31.8
BD-DI
DC current transducer
Input DC4-20mA,0-20mA;Output:4-20mA or 0-5V
57.4
BD-DI
DC current transducer
Input DC4-20mA,0-20mA;Output:4-20mA or 0-5V
57.4
BD-DV
DC voltage transducer
Input DC0-10V,0-75mV;Output:4-20mA or 0-5V
57.4
BD-3I3
Three phase AC current transducer
Input: AC0-1/5A Output: 4-20mA or 0-5V
84
BD-3(4)V3
Three phase AC voltage transducer
Input: AC0-100/300/500V Output: 4-20mA or 0-5V
84
BD-3(4)P
Three phase AC power transducer
Input: AC0-1/5A, AC0-120/250/450V    Output: 4-20mA or 0-5V
95.2
BD-4E
Measuring I,U,P,Q,F,PF,kWh,Kvarh,etc.
Output: one 4-20mA or 0-5V channel analog output
150.5
Specification

Dimension
Wiring
