AMC16B series multi-circuit monitoring device
1. General
AMC16 series multi-circuit monitoring device of Acrel Company is a measuring device designed specifically for the power supply management of server in the data center. Such device is small and exquisite in design, capable of centralized monitoring on various electric parameters and on-off states of dozens of circuits, including incoming line circuit and outgoing line circuit, and it achieves the highly integration of monitoring circuits in volume.
2.Technical Features
|
Type Technical parameters |
AMC16B-3E3 | |
| Voltage | Rated input | AC220V |
| Measuring range | AC40~400V |
|
| Overload | Instantaneous voltage 2 times during 30s | |
| Current | Rated input | 5A |
| Measuring range | 5~1000A | |
| Overload | 1.2 times(continuous),10 times during 5s | |
| Frequency | 45Hz~60Hz | |
| Switching input | Passive contact input,with power insert, Optocoupler isolation | |
| Relay output | 1 relay output,5A/250VAC,5A/30VDC | |
| Communication | RS485 Modbus-RTU Protocol | |
| Accuracy | voltage/current:0.5 Power, electric energy:1 | |
| Power supply | AC85~265V or DC100~350V |
|
| Power consumption | <3VA | |
| Insulation resistance | ≥100MΩ | |
| Environment | temperature |
Operating temperature:-15~+55℃ storage temperature:-25~+70℃ |
| humidity | Humidity rating:≤93%RH(non-condensing) | |
| Height | ≤2500m | |
3.Product Specifications
| Model | The Basic Functions | FOB Shanghai Quotation(USD) | Optional Functions | Module Price(USD) |
| AMC16B-3E3 | Three-phase bus voltage, three-phase three-phase current, active power, reactive power, active energy, reactive energy, THDi, THDu, harmonic distortion rate, RS485/Modbus communication |
115
|
/K:9DI/1DO | 18 |
4.DImension
Shape and size(mm):

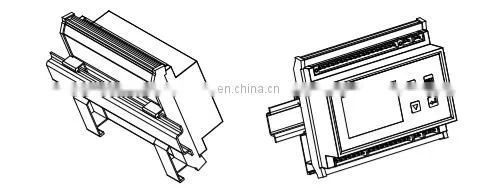

5.Installation
Rail mounting:
→
