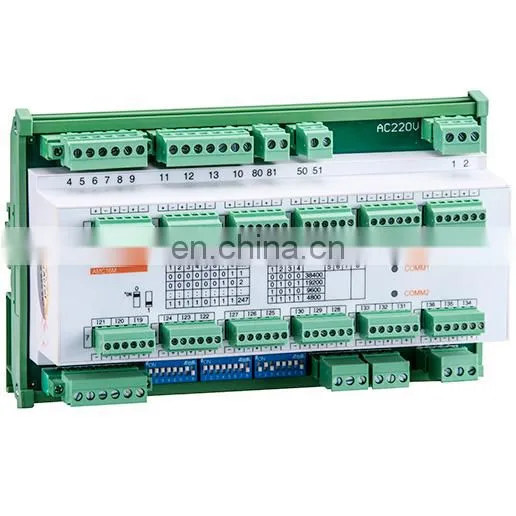

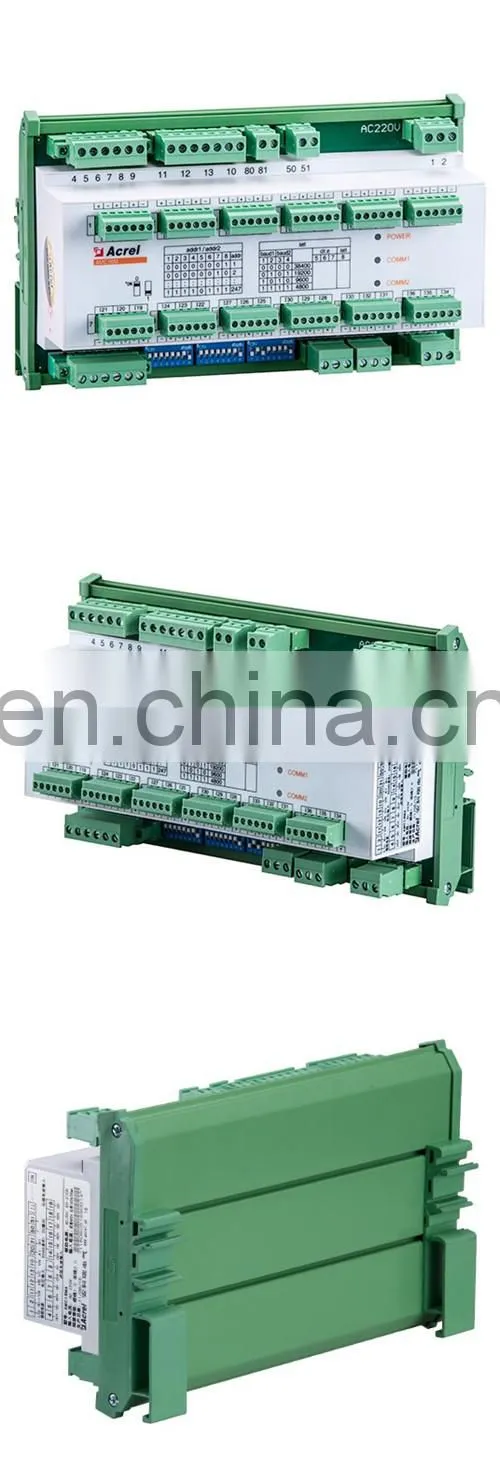

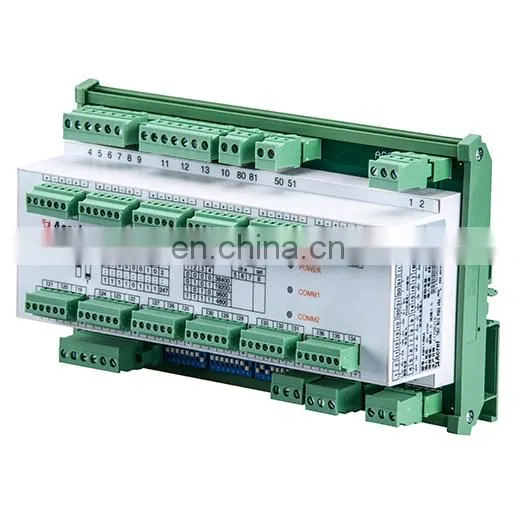

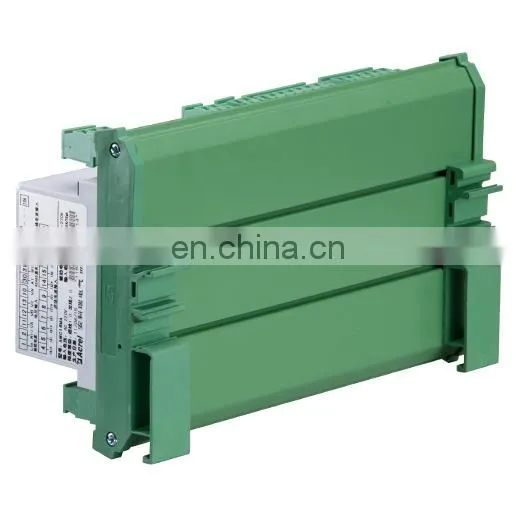

AMC16 series multi-circuit monitoring device
1. General
AMC16 series multi-circuit monitoring device of Acrel Company is a measuring device designed specifically for the power supply management of server in the data center. Such device is small and exquisite in design, capable of centralized monitoring on various electric parameters and on-off states of dozens of circuits, including incoming line circuit and outgoing line circuit, and it achieves the highly integration of monitoring circuits in volume.
2.Technical Features
|
Type Technical parameters |
AMC16Z | |
| Busbar Voltage | Rated input | AC220V |
| Measuring range | AC40~400V |
|
| Overload | 1.2 times(continuous), 2 times during 1s | |
| Current circuit | Rated input | 5A |
| Measuring range | 5~10000A | |
| Overload | 1.2 times(continuous),10 times during 5s | |
| Frequency | 45Hz~60Hz | |
| Switching input | 21 active contacts, 1 passive contact | |
| Relay output | 5A/250VAC,5A/30VDC | |
| Communication | RS485 Modbus-RTU Protocol | |
| Accuracy | voltage/current:0.5 Power, electric energy:1 | |
| Power supply | AC85~265V or DC100~350V |
|
| Power consumption | 5VA | |
| Insulation resistance | ≥100MΩ | |
| Environment | temperature |
Operating temperature:-15~+55℃ storage temperature:-25~+70℃ |
| humidity | Humidity rating:≤93% | |
| Height | ≤2500m | |
3.Product Specifications
| Model | The Basic Functions | FOB Shanghai Quotation (USD) |
| AMC16Z | Measure 3 phase input total voltage;1 channel 3 phase input testing I,Kw,Kvar,cosφ,Kwh,Kvarh,21 channels single phase output testing (7 channels 3 phase ) I,Kw,Kvar,cosφ,Kwh,Kvarh (adapted with AKH-0.66/W 100A/20mA current transformer) |
126
|
4.DImension
5.Installation
Wiring
Acrel Co., Ltd. [Stock Code: 300286.SZ] is one of the few leading companies in China who provides various systematic solutions of power monitoring, power control, energy management and electrical safety for smart grid users.
Since June 2003, we has always been focused on the research, production and sales of intelligent electric meters. We concentrates on providing products and services to help customers improve electricity efficiency and safety. So far we had the following comprehensive solutions for different applications: 35(10)/0.4kV substation automation system, building mounted photovoltaic (BMPV) system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, power supply monitoring system for fire protection equipment, fire emergency lighting and evacuate indicating system, fire resistant doorsets monitoring system, smart lighting control system, Lithium battery management system and electric vehicle charging system.
