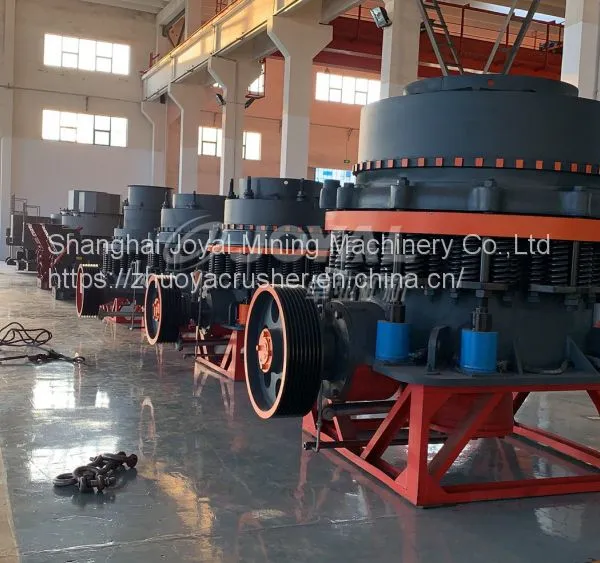

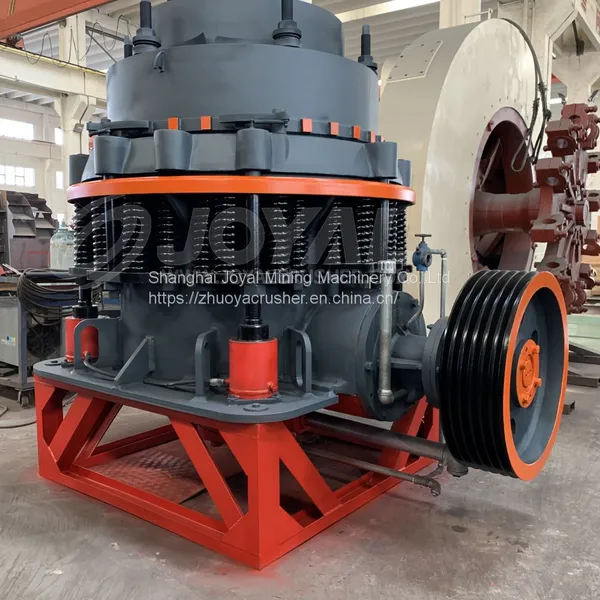

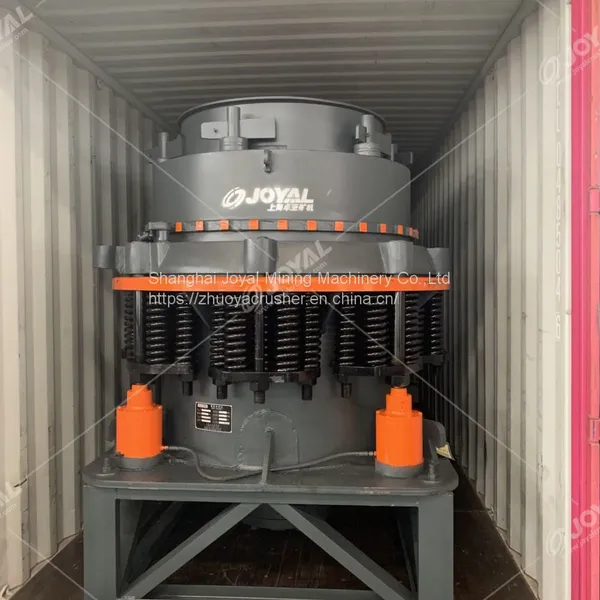

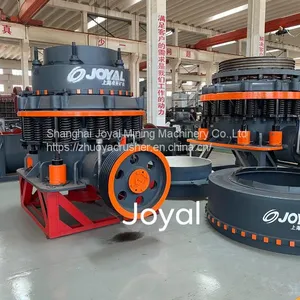

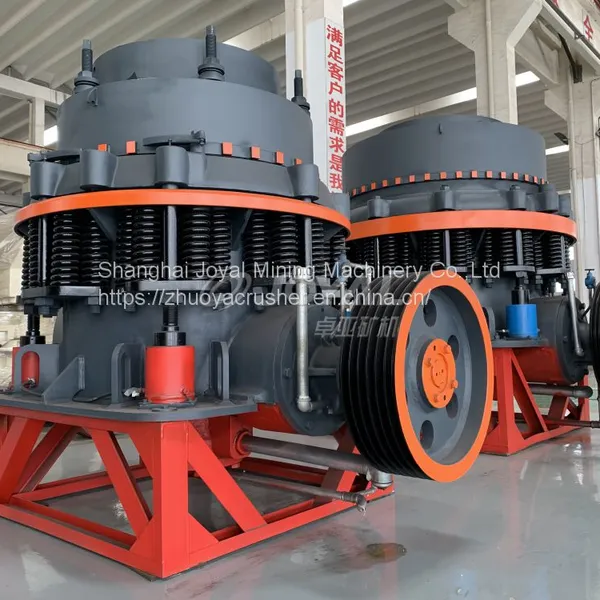

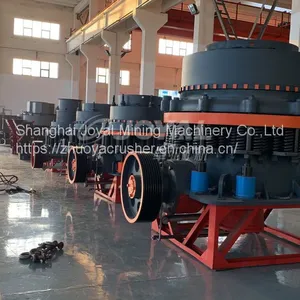

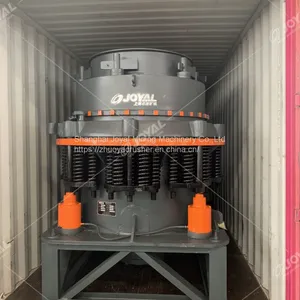

The JOYAL ZYS Cone Crusher is a high-performance model optimized and improved on the basis of PY Series Spring Cone Crusher. The ZYS Cone Crusher is widely used for secondary and fine crushing in the fields of mining, building materials, metallurgies and so on. The ZYS Cone Crusher can crush materials with middle and high hardness, such as, metal ore, basalt, granite, limestone, cobblestone, sandstone and so on.
Applications: ZYS cone crusher is widely used in mining, building materials, metallurgy and other industries.
Working PrincipleDuring the operation of ZYS Series cone crusher, driven by the electric motor ,the eccentric shaft bush will rotate with the triangle belt, small and big bevel gear, big bear, transmission shaft .Driven by the eccentric shaft bush ,the cone crusher axis will move circularly . ,which makes the mantle close or leave the cone from time to time .And then the materials will be crushed by continuously compacting, striking, and crooking in the circle crushing cavity between the fixed and moveable cone. After several times’ repeating, the materials will be crushed to the required size and then they will be discharged by the discharging opening.
| Model | Cavity Size | Max Feeding Size(mm) | Adjusting Range of Output Size(mm) | Capacity (t/h) | Motor Power (KW) | Weight (t) | Overall Dimension (mm) |
| ZYS36B | Fine | 85 | 9~22 | 45~91 | 75 | 14.5 | 2656×1746×2410 |
| Coarse | 150 | 13-38 | 59~163 | ||||
| Extra Coarse | 152 | 25-38 | 118~163 | ||||
| ZYS36D | Fine | 35 | 3~13 | 27~90 | 15 | ||
| Medium | 65 | 5~16 | 36~100 | ||||
| Coarse | 85 | 6~19 | 59~129 | ||||
| ZYS51B | Fine | 115 | 13~31 | 109~181 | 160 | 26.5 | 2958×2354×3156 |
| Medium | 178 | 16~38 | 132~253 | ||||
| Coarse | 205 | 19~51 | 172~349 | ||||
| Extra Coarse | 220 | 25~51 | 236~358 | ||||
| ZYS51D | Fine | 54 | 3~16 | 36~163 | 27 | ||
| Medium | 76 | 6~16 | 82~163 | ||||
| Coarse | 89 | 8~25 | 109~227 | ||||
| Extra Coarse | 113 | 16~25 | 209~236 | ||||
| ZYS66B | Fine | 178 | 16~38 | 181~327 | 250 | 51 | 3941×2954×3771 |
| Medium | 205 | 22~51 | 258~417 | ||||
| Coarse | 228 | 25~64 | 299~635 | ||||
| Extra Coarse | 313 | 38~64 | 431~645 | ||||
| ZYS66D | Fine | 60 | 5~13 | 90~209 | 52 | ||
| Medium | 76 | 6~19 | 136~281 | ||||
| Coarse | 113 | 10~25 | 190~336 | ||||
| Extra Coarse | 125 | 13~25 | 253~336 | ||||
| ZYS84B | Fine | 236 | 19~38 | 381~726 | 315 | 90 | 4613×3251×4732 |
| Medium | 284 | 25~51 | 608~998 | ||||
| Coarse | 314 | 31~64 | 789~1270 | ||||
| Extra Coarse | 391 | 38~64 | 880~1361 | ||||
| ZYS84D | Fine | 89 | 5~16 | 190~408 | 92 | ||
| Medium | 113 | 10~19 | 354~508 | ||||
| Coarse | 151 | 13~25 | 454~599 | ||||
| Extra Coarse | 172 | 16~25 | 508~653 |
