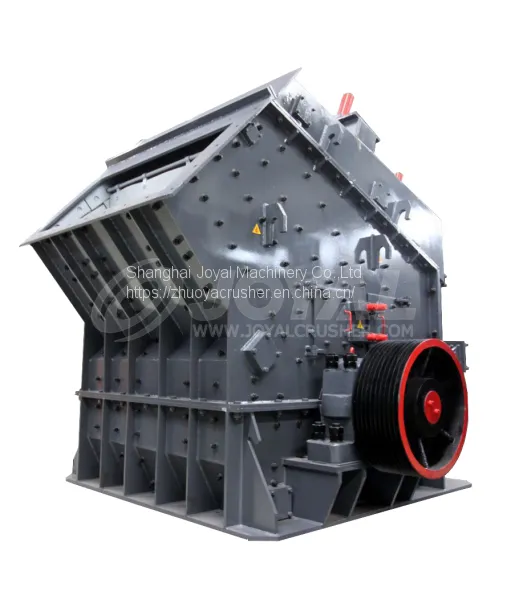

Impact Crusher for Mining Use

Impact Crusher for Mining Use thumbnail-1
Impact Crusher for Mining Use thumbnail-2
Impact Crusher for Mining Use thumbnail-3

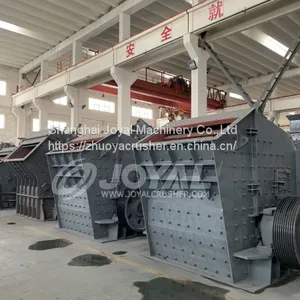

Impact Crusher for Mining Use thumbnail-4
Impact Crusher for Mining Use thumbnail-5
Impact Crusher for Mining Use photo-1
Impact Crusher for Mining Use photo-2
Impact Crusher for Mining Use photo-3
Impact Crusher for Mining Use photo-4
Impact Crusher for Mining Use photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Type:
Impact Crusher
Certification:
CE, ISO, CQC
Contact Supplier Request Quote Chat Now
Shanghai Joyal Mining Machinery Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Type Impact Crusher
Certification CE, ISO, CQC
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12months
Weight 0.8-99tons
Application mining, building materials, chemical industry, metallurgy and so on
Condition New
Power(W) 5500-250000
Motor Type AC Motor
Capacity(t/h) 1-800tph

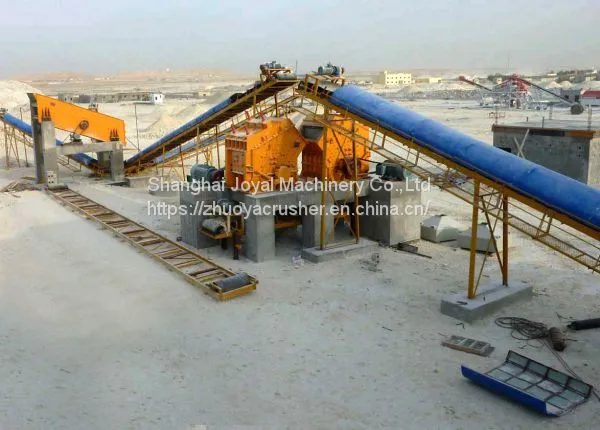

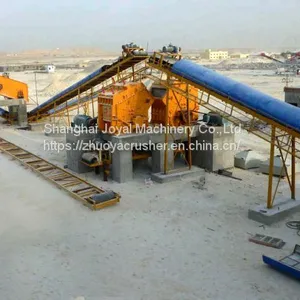

 Impact Crusher is used for primary, secondary and fine crushing of all kinds of stones and rocks with compressive strength less than 350 MPa such as granite, marble, and limestone. The Impact Crusher is widely used for sand and rock production in the industry of roads, railways, reservoir, electricity power, building materials and so on.


Features

  1. Cubic-shaped end products;
    2. Adjustable end products sizes, simple crushing process;
    3. The board hammer is made of high chrome and, abrasion-resistant, and with powerful impacting force;
    4. Non-key connected, easy to maintain, cost-saving;
    5. Sound construction and high efficiency.

    Working Principle

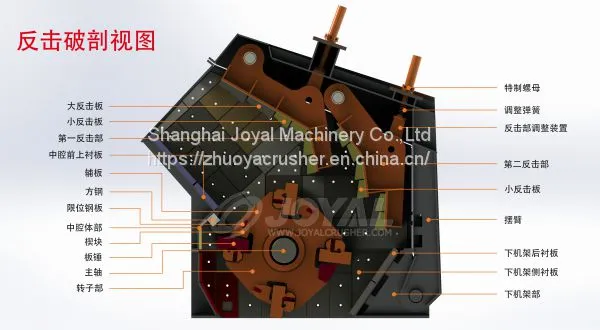

The materials are crushed via impact energy produced in the impact crusher. When the materials enter the zone of the board hammer, they are flung into the impact equipments via the high-speed impact of the board hammer. These materials will be re-crushed after rebounding into the scale board. The large materials are crushed into small pieces until it becomes the specified granularities. The end products come out from the base of the impact crusher.

Technical data

Model Rotor Size (mm) Feed Opening Size (mm) Max. Feeding Size (mm) Capacity (t/h) Motor Power (kw) Weight (t) Overall Dimension (mm)
PF-1007 ø1000×700 400×730 250 15-50 37-55 9.5 2400×1560×2660
PF-1010 ø1000×1050 400×1080 300 50-80 55-75 13.2 2440×2250×2630
PF-1210 ø1250×1050 400×1080 300 70-130 110-132 16.5 2700×2340×2870
PF-1214 ø1250×1400 400×1430 300 90-180 132-160 19.5 2700×2695×2900
PF-1315 ø1320×1500 860×1520 350 120-250 180-260 24.8 2860×2800×3050
PF-1320 ø1320×2000 860×2030 500 160-350 300-375 30 2870×3350×3090



Product Tags: Mining , Aggregates , Impact
