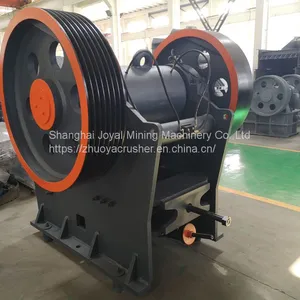

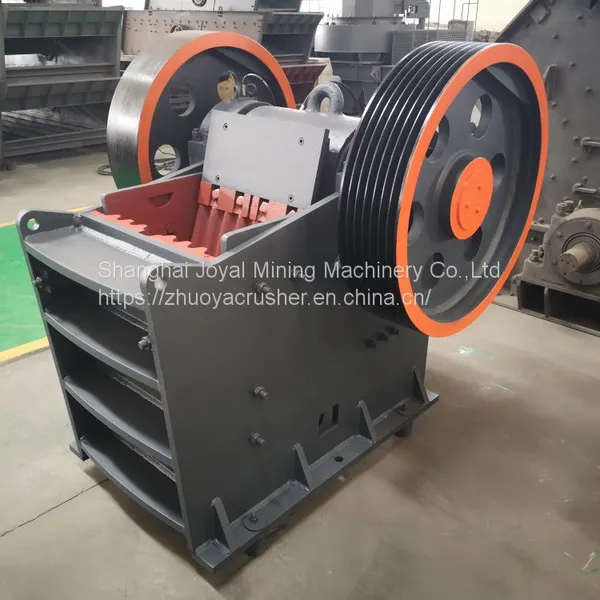

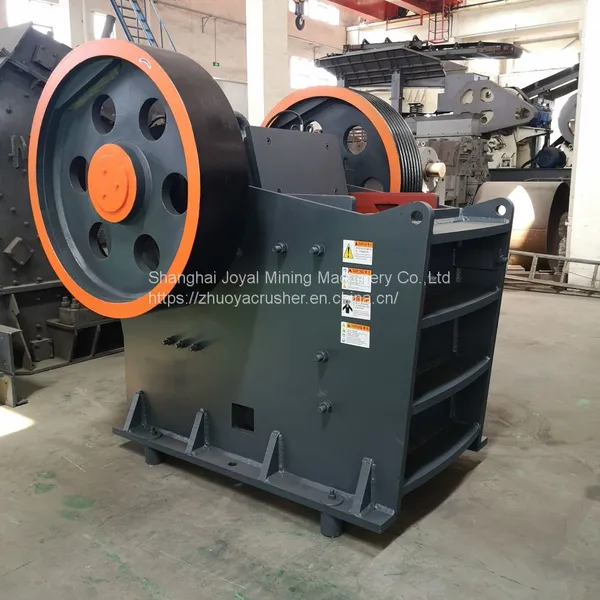

Jaw Crusher PE500*750 for Sale
US$ 1 - 30000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
JOYAL
Place of Origin:
China
Model Number:
PE500*750
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days
Related Products
Brand Name
JOYAL
Place of Origin
China
Model Number
PE500*750
Type
Jaw Crusher
Certification
ISO, CE, CQC
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
12months
Weight
10tons
Dimension(L*W*H)
2035*1921*2000mm
Application
mining industry,building materials, metallurgy, coal, etc
Condition
New
Power(W)
55000
Motor Type
AC Motor
Capacity(t/h)
60-100TPH
JOYAL Jaw Crusher is widely used in mining, building materials, chemical industry, metallurgy and so on. The Jaw Crusher is suitable for primary and secondary crushing all kinds of minerals and rocks with compressive strength less than 320 MPa.
Applications: Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy
Specifications - Technical Data
| Model | Feed Opening Size (mm) | Max. Feeding Size (mm) | Adjustable Range of Output Size (mm) | Capacity (t/h) | Motor Power (kw) | Weight (t) | Overall Dimension (mm) |
| PE250×400 | 250×400 | 200 | 20-50 | 5-20 | 15 | 2.9 | 1430×1310×1340 |
| PE400×600 | 400×600 | 350 | 40-100 | 15-60 | 30-37 | 6.8 | 1700×1732×1653 |
| PE500×750 | 500×750 | 425 | 50-100 | 40-100 | 45-55 | 11.2 | 2035×1921×2000 |
| PE600×900 | 600×900 | 480 | 65-160 | 60-140 | 55-75 | 16.5 | 2290×2206×2370 |
| PE750×1060 | 750×1060 | 630 | 80-150 | 80-230 | 90-110 | 29 | 2655×2302×3110 |
| PE900×1200 | 900×1200 | 750 | 95-165 | 140-320 | 110-132 | 54.5 | 3789×3050×3025 |
| PE1000×1200 | 1000×1200 | 850 | 105-185 | 180-400 | 160-200 | 56.5 | 3900×3320×3280 |
| PE1200×1500 | 1200×1500 | 1020 | 150-300 | 250-800 | 220-250 | 99.6 | 4300×3540×4043 |
| PEX150×250 | 150×250 | 125 | 10-40 | 1-3 | 5.5 | 0.85 | 896×745×935 |
| PEX150×750 | 150×750 | 125 | 12-45 | 5-16 | 15 | 3.8 | 1205×1495×1203 |
| PEX250×750 | 250×750 | 210 | 25-60 | 10-40 | 22-30 | 5 | 1667×1545×1020 |
| PEX250×1000 | 250×1000 | 210 | 25-60 | 15-50 | 30-37 | 6.8 | 1964×1550×1380 |
| PEX250×1200 | 250×1200 | 210 | 25-60 | 20-60 | 37-45 | 8.5 | 2192×1605×1415 |
| PEX400×1200 | 400×1200 | 320 | 35-95 | 28-95 | 45-55 | 11.7 | 2256×2100×1960 |
| JCE1302 | 180×1300 | 150 | 10-30 | 12-50 | 30-37 | 6 | 1320×2150×1175 |
| JCE1003 | 250×1000 | 220 | 20-40 | 15-65 | 30-37 | 5.6 | 1400×1850×1310 |
| JCE1303 | 250×1300 | 220 | 20-40 | 26-85 | 37-45 | 6.8 | 1450×2150×1175 |
| JCE604 | 400×600 | 350 | 35-85 | 15-85 | 30-37 | 10 | 1920×1460×1840 |
