Cone Crusher

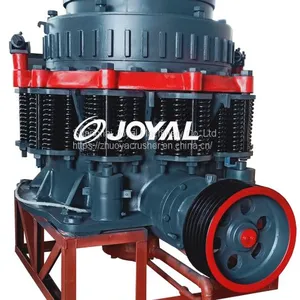

Cone Crusher thumbnail-1

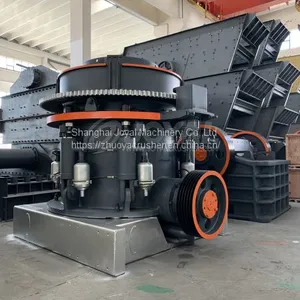

Cone Crusher thumbnail-2

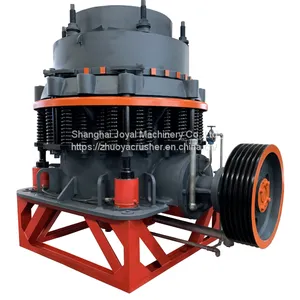

Cone Crusher thumbnail-3

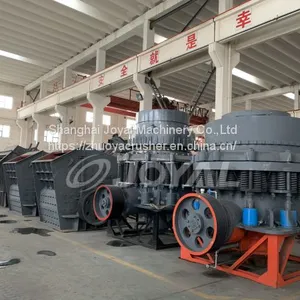

Cone Crusher thumbnail-4

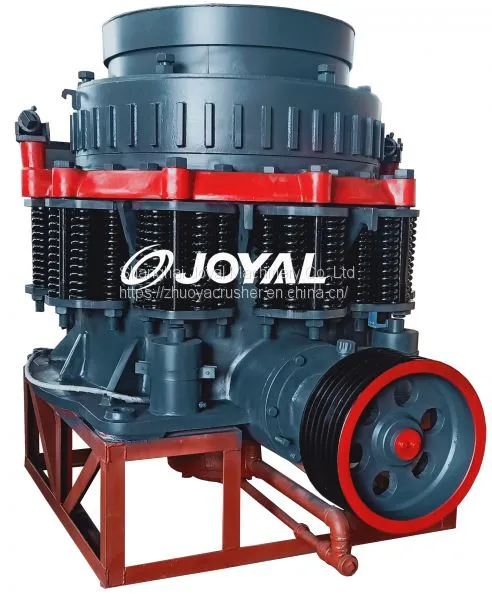

Cone Crusher photo-1

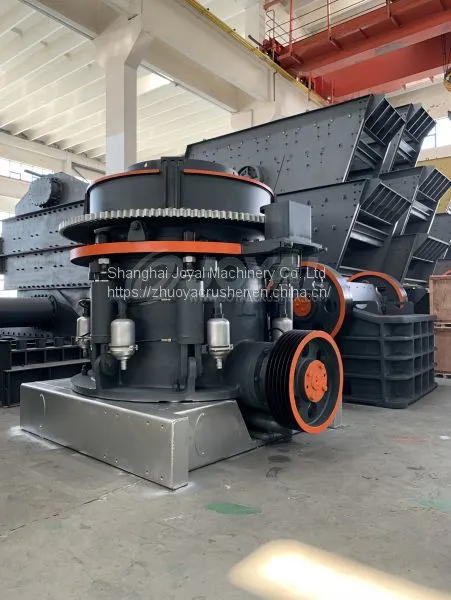

Cone Crusher photo-2

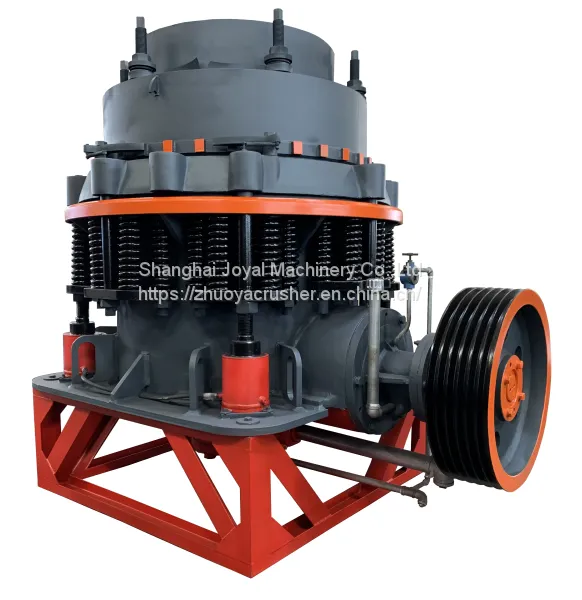

Cone Crusher photo-3

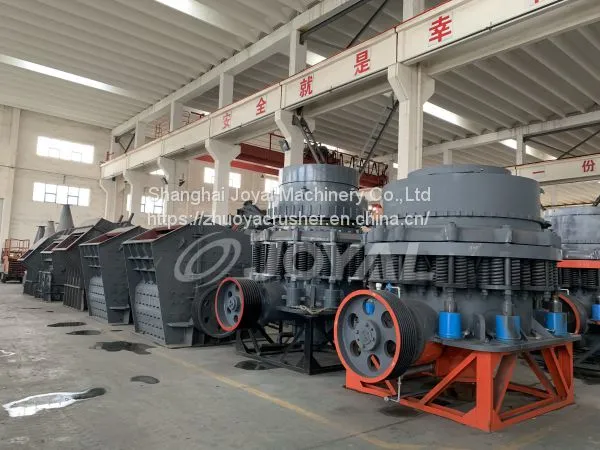

Cone Crusher photo-4
US$ 1500 - 294000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
JOYAL
Place of Origin:
China
Type:
Cone Crusher
Contact Supplier Request Quote Chat Now
Shanghai Joyal Mining Machinery Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name JOYAL
Place of Origin China
Type Cone Crusher
Certification CE, ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12months
Weight 0.8-99tons
Application mining, building materials, chemical industry, metallurgy and so on
Condition New
Power(W) 5500-250000
Motor Type AC Motor
Capacity(t/h) 1-800tph

Cone Crusher is widely used in metal and non-metallic mines, cement, construction, sand and metallurgical industries. It is applicable to materials like iron ore, nonferrous metal ores, granite, limestone, quartzite, sandstone, pebbles and so on.

Features

Simple and sound design of ZYC Cone Crusher is ideal for crushing operations;
2. The spring-loaded discharging system filters non-crushable materials automatically to avoid any damage to the machine;
3. The interlocked lubrication unit is equipped with a main motor for additional safety;
4. A rib liner is installed at the bottom of the frame to protect it from wearing.
5. Generally there are four types of ZYC Cone Crushers: the SGC Standard or the Coarse type, the SGM Fine or the Medium type, the SGF Short Head type &SGEF Super Fine Type. All these types are used for secondary and tertiary crushing both in stationary and portable applications.

Working Principle

  1. When cone crusher work, by the motor through V-belt, host pulley, drive shaft, a small bevel gear, bevel gear driving a large external brass rotation axis line of cone crushing force copper out by rotating the swing next move, making the broken wall near the surface from time to time and mortar wall from time to time to leave the rolling surface, so that the material in the fixed cone and fixed cone crushing cavity composed of the ring constantly under attack, pressing and bending and breaking. After repeated squeezing, shock and bending, the material crushing to the required size, the lower discharge.

Technical data

Standard Chamber
Min discharge
opening (mm)		 Power Capacity(t/h) Weight(kg)
Max feedsize Close discharge size(mm)
（mm） 6 10 13 16 19 22 25 38 51 64
ZYC600 C 95 10 37-45
20 25 30 35 45 50 76

5300
M 72 6 37-45 18 20 25 30 35 40 45 60

5300
ZYC1000 C 160 13 90-110

80 100 135 150 175 235

10800
M 115 10 90-110
65 75 90 120 135 150


10800
F 80 8 90-110 52 62 72 78 115




10510
EF 50 6 90-110 50 55 65 70 102




10510
ZYC1200 C 180 13 110-132

115 135 150 180 200 260

15500
M 130 10 110-132
100 110 120 135 165 175


15500
F 90 10 110-132
80 105 110 140




15500
EF 60 6 110-132 60 74 105 110 130




15500
ZYC1380 C 215 19 185-220



200 220 260 350 440
26300
M 160 16 185-220


155 180 200 220


26300
F 115 13 185-220

150 190 210 230



26300
EF 76 8 185-220
122 148 185 200




26300
ZYC1500 C 235 22 185-220




265 310 420 525 580 37750
M 175 19 185-220



215 240 265 320

37750
F 130 13 185-220

180 210 235 255 275


37750
EF 90 10 185-220
148 178 200 220




37750
ZYC1680 C 267 22 250-300




330 390 525 655 725 44300
M 203 16 250-300


230 270 300 330


44300
F 140 13 250-300
185 225 265 340




44300
EF 95 10 250-300
180 220 260 335




44300



Product Tags: Hydraulic , Cone , Mining , Mineral , Aggregates , Spring Cone Crusher
