Help CenterVibrating Screen 3YZS1548 3deck Screen Low Cost
Related Products

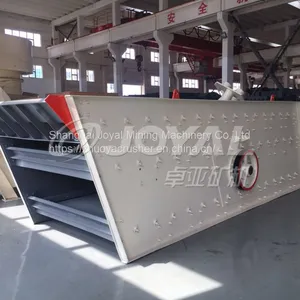

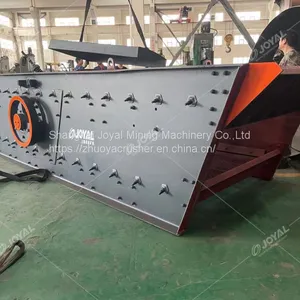

The JOYAL Circular Vibrating Screen is widely used for grading and screening materials in the fields of minerals, quarry, building materials, etc. Our vibrating screen has multi-layers and its screen size is various, it can screen out many kind of materials with different sizes.
Applications: Circular vibrating screen is widely used in product screening and grading in mining, building materials, transportation, energy, chemical and other industries.
Working PrincipleThe vibrating screen is to drive vibrator through V-belt under the power of ordinary motor, so that the screen body along the vibrating power direction to make a cyclical reciprocating, the material in the screen surface to make round movement, so as to make the materials sieved.
Specifications - Technical Data| Model | Screen Cloth Size |
Screen Decks |
Screen Opening Size |
Max. Feeding Size |
Capacity (t/h) |
Motor Power |
Weight (t) |
Overall Dimension (mm) |
| 2YZS1237 | 3700×1200 | 2 | 3-50 | 200 | 10-80 | 11 | 2.40 | 4773×2050×2247 |
| 3YZS1237 | 3700×1200 | 3 | 3-50 | 200 | 10-80 | 11 | 3.05 | 4773×2050×2700 |
| 2YZS1548 | 4800×1500 | 2 | 3-100 | 400 | 30-200 | 15 | 5.35 | 5900×2270×1620 |
| 3YZS1548 | 4800×1500 | 3 | 3-100 | 400 | 30-200 | 15 | 6.07 | 5900×2270×1670 |
| 2YZS1848 | 4800×1800 | 2 | 3-100 | 400 | 50-280 | 18.5 | 6.15 | 5900×2560×1620 |
| 3YZS1848 | 4800×1800 | 3 | 3-100 | 400 | 50-280 | 18.5 | 6.93 | 5900×2560×1670 |
| 2YZS1860 | 6000×1800 | 2 | 3-100 | 400 | 65-550 | 22 | 6.95 | 7060×2560×1620 |
| 3YZS1860 | 6000×1800 | 3 | 3-100 | 400 | 65-550 | 22 | 7.70 | 7060×2560×1670 |
| 4YZS1860 | 6000×1800 | 4 | 3-100 | 400 | 65-550 | 30 | 8.70 | 7060×2560×1930 |
| 2YZS2160 | 6000×2100 | 2 | 3-100 | 400 | 81-720 | 22 | 8.48 | 7130×2990×1760 |
| 3YZS2160 | 6000×2100 | 3 | 3-100 | 400 | 81-720 | 30 | 9.24 | 7130×2990×1810 |
| 4YZS2160 | 6000×2100 | 4 | 3-100 | 400 | 81-720 | 30 | 10.45 | 7130×2990×1930 |
| 2YZS2460 | 6000×2400 | 2 | 3-150 | 400 | 100-810 | 30 | 12.35 | 7130×4121×1810 |
| 3YZS2460 | 6000×2400 | 3 | 3-150 | 400 | 100-810 | 37 | 13.85 | 7130×4121×1940 |
| 4YZS2460 | 6000×2400 | 4 | 3-150 | 400 | 100-810 | 37 | 15.60 | 7130×4121×2080 |
