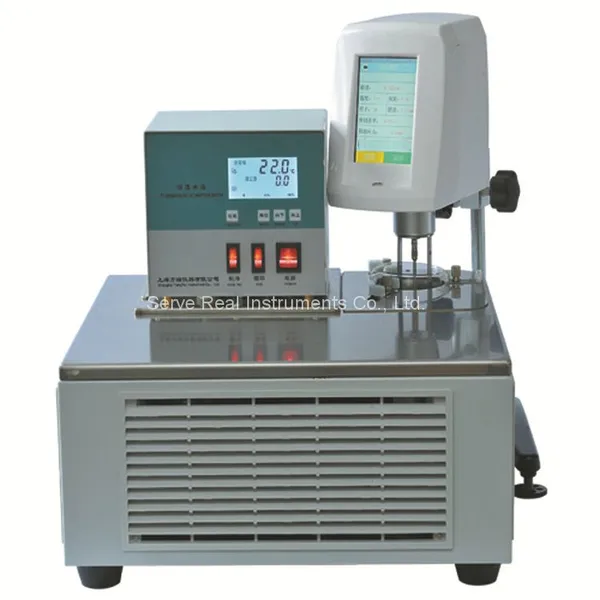

The SSR series viscometer adopts a coaxial cylinder structure and uses a small sample adapter. The sample volume required for each measurement is very small, only 7ml-13ml (No. 0 rotor is 21ml), and optional thermostatic water jacket with circulation, Cooperate with the constant temperature bath to control the temperature of the tested sample. The operation is very convenient and the measured value is accurate. It is very suitable for measuring precious and rare samples.
Features
1. Front location of the horizontal bubble, convenient for level adjustment
2. Timing measurement function
3. Coaxial cylinder structure
4. The measurement accuracy of the data is two decimal places
5. Convenient and reliable operation

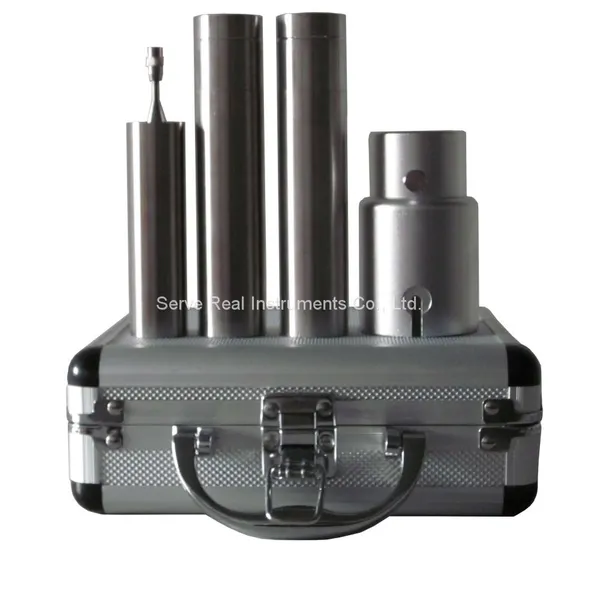

6. Use a small number of sample adapters, the amount of sample required for testing is very small
7. The viscometer is equipped with two RS232 interfaces, which can be directly connected to a micro thermal printer and a computer
Specification
Model |
NDJ-SSR |
Display method |
Backlit LCD, digital display |
Speed (r/min) |
0.3/0.6/1.5/3/6/10/12/15/20/25/30/40/50/60/70/80/90/100, totally 18 types |
Rotor |
18#,25#,31#,34#(equip 1 of them), 0# optional |
Measuring range |
8# rotor：3 –10000 mPa.s 25# rotor：480 –1600000 mPa.s 31# rotor：30 –100000 mPa.s 34# rotor：60 –200000 mPa.s |
Sample size |
18# rotor: Sample quantity 7ml 25# rotor: Sample quantity 9ml 31# rotor: Sample quantity 10.5ml 34# rotor: Sample quantity 11ml |
Measurement error |
±2% (Newtonian liquid) |
Repeat error |
±1% (Newtonian liquid) |
Output Interface |
There are two RS232 ports, which can be connected to printer and computer |
Temperature probe interface |
Equipped |
Overall size |
300×300×450mm |
Model |
RV-SSR |
HA-SSR |
HB-SSR |
Display method |
Backlit LCD, digital display |
||
Speed (r/min) |
0.5/1/2/2.5/4/5/10/15/20/25/30/40/50/60/70/80/90/100 |
||
Rotor |
21#,27#,28#,29# |
||
Measure range |
6.4-2M |
12.8 – 4M |
51.2 – 16M |
0#：6.4-1K |
0#：12.8-1K |
0#：51.2-2K |
|
K = 1000; M = 1000000 | |||
Sample quantity |
ULR(0#):21ml |
||
Measurement error |
±2% (Newtonian Liquid) |
||
Repeat error |
±1% (Newtonian Liquid) |
||
Output Interface |
There are two RS232 ports, which can be connected to printer and computer |
||
Temperature probe interface |
Equipped |
||
Dimensions (mm) |
300×300×450 |
||
