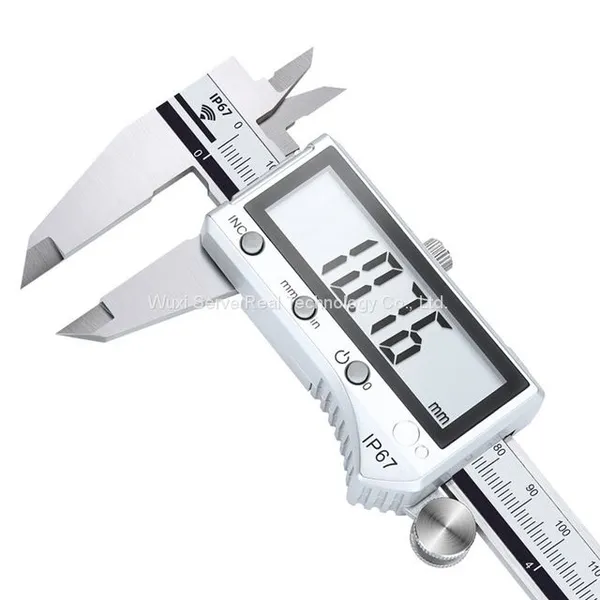

Help CenterStainless Steel Digital Calipers IP54 IP67 DIN 862
Related Products
-
Outside Micrometer 0.01mmUS$ 50 - 500MOQ: 1 Set -
Two-jaw Inside Micrometer Internal MicrometerUS$ 50 - 500MOQ: 1 Set
-
Three-jaw Inside Micrometer 3-jaw Internal MicrometerUS$ 50 - 500MOQ: 1 Set
-
Micrometer Head 0-6.5mm 0-13mm 0-25mm 0-50mm Flat Sepheric HeadUS$ 10 - 100MOQ: 1 Set
-
Portable Digital Thickness Gauge 0-10mm 0-25mm 0.01mm 0.001mmUS$ 10 - 100MOQ: 1 Set
4CR13 Stainless steel body, high strength and durable in usage
3.5mm thickened body
Industry degree DIN862 standard
High temperature quench measure claw
Aluminum alloy plating cover
Locking nut micro-tunning wheel for stable reading
Magnetic stripe film with clear reading
Bluetooth transmission

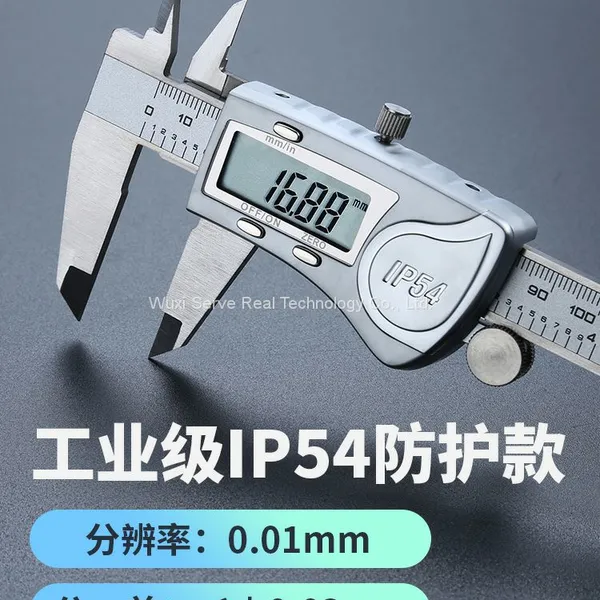

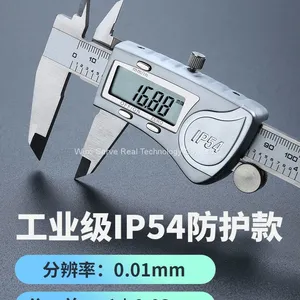

IP54/IP67 protection degree optional
Laser coding
INC Origin function
ABS Origin measurement function
Standard model
Model |
MG-CG15D |
MG-CG20D |
MG-CG30D |
Measure range |
0-150mm |
0-200mm |
0-300mm |
Readout |
0.01mm |
||
Net dimensions |
236*61mm |
286*74mm |
400*85mm |
Accuracy |
±0.03mm |
±0.04mm |
|
Scale material |
Magnetic film |
||
ABS/INC function |
/ |
||
Depth measurement |
Optional |
||
Body material |
4CR13 Stainless steel |
||
Battery |
3V Li battery CR2032 |
||
Battery life |
Approx 12months |
||
Operation temp. |
0-40 ℃ |
||
Operation humidity limit |
No limit |
||
Display Unit |
mm/in |
||
Bluetooth |
/ |
||
Standard |
GB/T21389 |
||
Protection model
Model |
MG-CG15P |
MG-CG20P |
MG-CG30P |
||||
Measure range |
0-150mm |
0-200mm |
0-300mm |
||||
Protection degree |
IP54 |
IP67 |
IP54 |
IP67 |
IP54 |
IP67 |
|
Readout |
0.01mm |
||||||
Net dimensions |
236*61mm |
236*77mm |
286*74 |
286*88 |
400*85 |
400*102 |
|
Accuracy |
±0.02mm |
±0.03mm |
|||||
Scale material |
Sensing grid film |
||||||
ABS/INC function |
l |
l |
l |
||||
Depth measurement |
Optional |
||||||
Body material |
4CR13 Stainless steel, thickness 3.5mm |
||||||
Battery |
3V Li battery CR2032 |
||||||
Battery life |
Approx 12months |
||||||
Operation temp. |
0-40 ℃ |
||||||
Operation humidity limit |
No limit |
||||||
Display Unit |
Mm/in |
||||||
Bluetooth |
l |
l |
l |
||||
Standard |
DIN862 |
||||||
