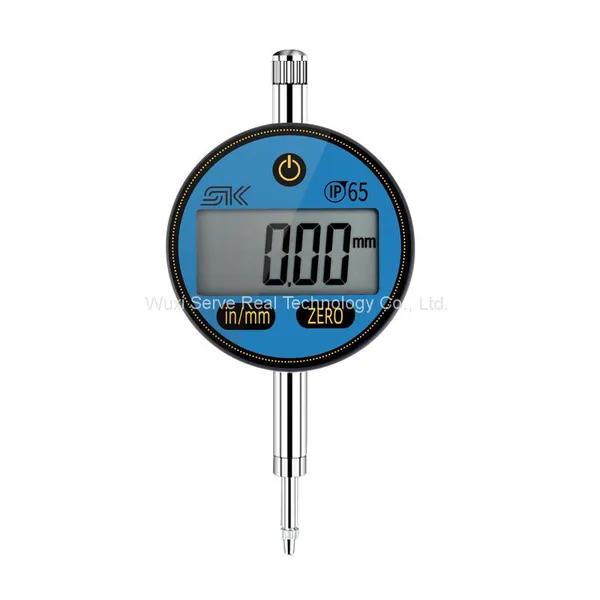

Digital Dial Gauge With Data Acquisition FunctionUS$ 100 - 500MOQ: 1 Set -
Caliper 150mm 200mm 300mm 500mm 600mm 1000mmUS$ 50 - 500MOQ: 1 Set
-
Stainless Steel Digital Calipers IP54 IP67 DIN 862US$ 50 - 500MOQ: 1 Set
-
Outside Micrometer 0.01mmUS$ 50 - 500MOQ: 1 Set
-
Two-jaw Inside Micrometer Internal MicrometerUS$ 50 - 500MOQ: 1 Set

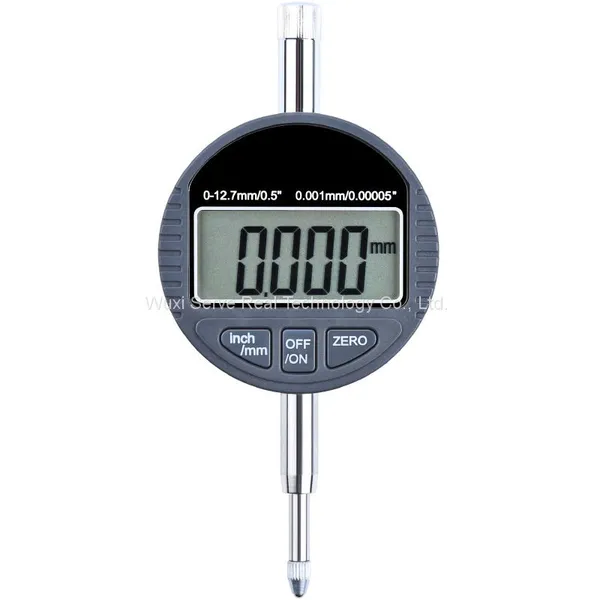

Measure range | 0-12.7mm/0.5” | 0-25.4mm/1” | 0-12.7mm/0.5” | 0-25.4mm/1” | ||
Resolution | 0.01mm | 0.001mm | ||||
Test force | <1.5N | <2.0N | <1.5N | <2.0N | ||
Accuracy | <±0.01mm | <±0.02mm | <±0.005mm | <0.007mm | ||
Dial size | Dia.57*25mm (thickness) | |||||
Total length/mm | 123 | 125 | 123 | 125 | ||
Power | Button Battery | |||||
Dial plate size | 57mm | |||||
Back cover | Detachable | |||||
Optional function | Bluetooth transmission, RS232 | |||||
Protection degree | IP54/IP65 optional | |||||
Measure range | 0-50.8mm/2” | 0-100mm/4” | 0-50.8mm/2” | 0-100mm/4” | ||
Resolution | 0.01mm | 0.001mm | ||||
Test force | <2.0N | <2.0N | <2N | <2.0N | ||
Accuracy | <±0.01mm | <±0.01mm | <±0.005mm | <0.006mm | ||
Dial size | Dia.57*37mm (thickness) | |||||
Total length/mm | 242 | 421 | 242 | 421 | ||
Power | Button Battery | |||||
Dial plate size | 57mm | |||||
Back cover | Detachable | |||||
Optional function | Bluetooth transmission, RS232 | |||||
Protection degree | IP54/IP65 optional | |||||
Equipped with data output port, data can be output in Excel or other documents
Datable measure probe
Bluetooth function optional
RS232 port optional
IP54 /IP65 protection degree optional
