Home > Industrial Equipment & Components > Valve > Ball Valve > J11H/Y Class 150~2500 A105/ F304/F316/ LF2 Globe Valve, BW/SW/Flange/Thread

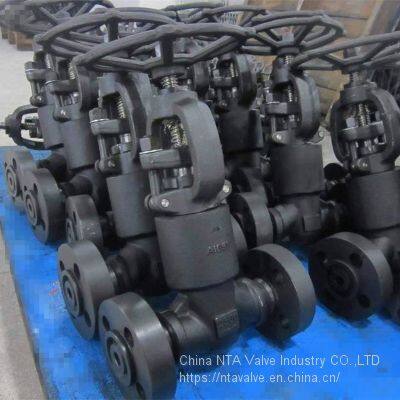

J11H/Y Class 150~2500 A105/ F304/F316/ LF2 Globe Valve, BW/SW/Flange/Thread
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
NTA
Place of Origin:
China
Material:
Forged
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
API 6D/ JIS Carbon Steel Globe ValveNegotiableMOQ: 1 Piece -
150LB/300LB CF8, CF8M Globe ValveNegotiableMOQ: 1 Piece
-
WCB/ CF8/CF8M Y-type Globe ValveNegotiableMOQ: 1 Piece
-
CF8 304 Stainless Steel Center Line Butterfly ValveNegotiableMOQ: 1 Piece
-
DN1200 Centerline Butterfly Valve - Single FlangeNegotiableMOQ: 1 Piece
Brand Name
NTA
Place of Origin
China
Material
Forged
Application
General
Structure
Stop
Standard or Nonstandard
Standard
Pressure
Medium Pressure
Power
Manual
Media
Oil
Temperature of Media
Normal Temperature
| Type | J11H/Y,J11W | |||||
| Body Material | A105. LF2/LF3, F304, F11/F22 | |||||
| Seat | A182 F6a, A182 F304, A182 F316 | |||||
| Size Range | 1/4”-2 1/2” (DN8-DN65) | |||||
| Class Rating | PN16~PN420 | |||||
| End Connection | Flange, Welded | |||||
| Operator | / | |||||
| Technical Specifications | ||||||
| Design Basis | GB | API | ASME | |||
| Design Standard | GB/T 12234 | API 600 | API 6D | ASME B16.34 | ||
| Face-to-Face | GB/T 12221 | ASME B16.10 | API 6D | ASME B16.10 | ||
| Connection End | Flanged | GB/T 9113 | ASME B16.5 | |||
| Material | NACE MR0175 | |||||
| Test & Inspection | JB/T 9092 | GB/T 13927 | API598 | API 6D | ASME B16.34 | |
| Fire Test | JB/T 6899 | API 6FA/API 607 | ||||
| Main performance parameter | ||||||
| DN | PN | Test pressure | Suitable Temperature | Suitable Medium | ||
| Shell test (Mpa) | High pressure seal test (Mpa) | Low pressure seal test (Mpa) | ||||
| 8-65 | 1.6 | 2.4 | 1.76 | 0.6 | -46℃~425℃(Different temp. for different raw material) | Water, Gas, and other causticity medium; |
| 2.5 | 3.8 | 2.8 | ||||
| 4.0 | 6.0 | 4.4 | ||||
| 6.4 | 9.6 | 7.0 | ||||
| 10.0 | 15.0 | 11.0 | ||||
We offers all types of industrial valve, includes ball valve, butterfly valve, gate valve, globe valve, check valve, safety valve, ect.
Material cover WCB, CF8, CF8M, A105, F304, F316, F316L and other steel alloy.
