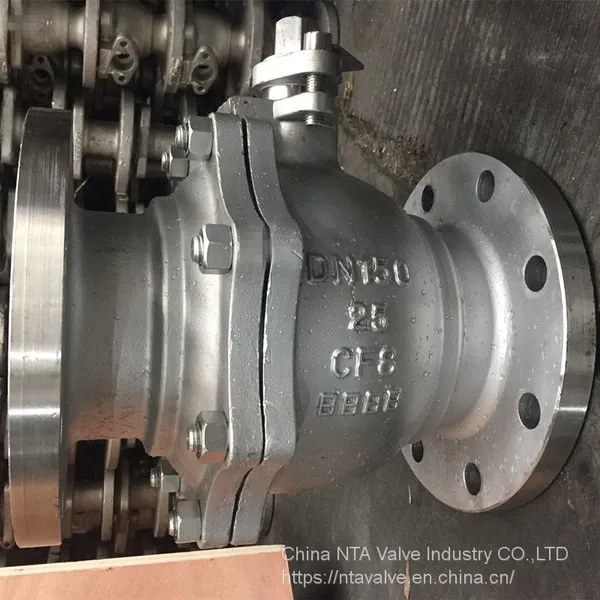

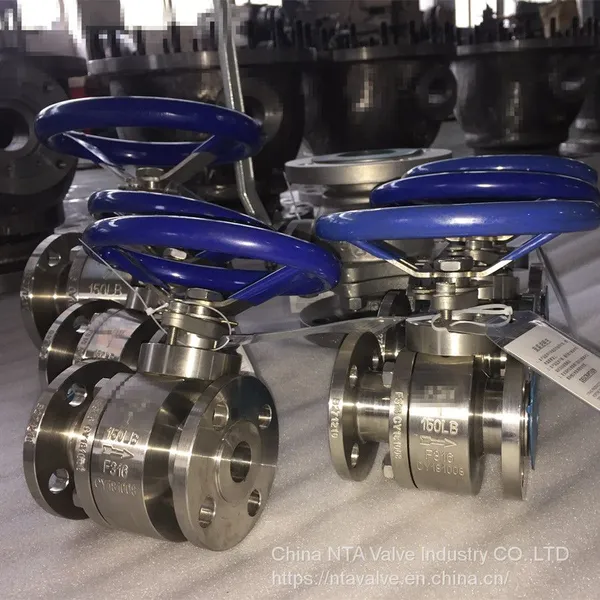

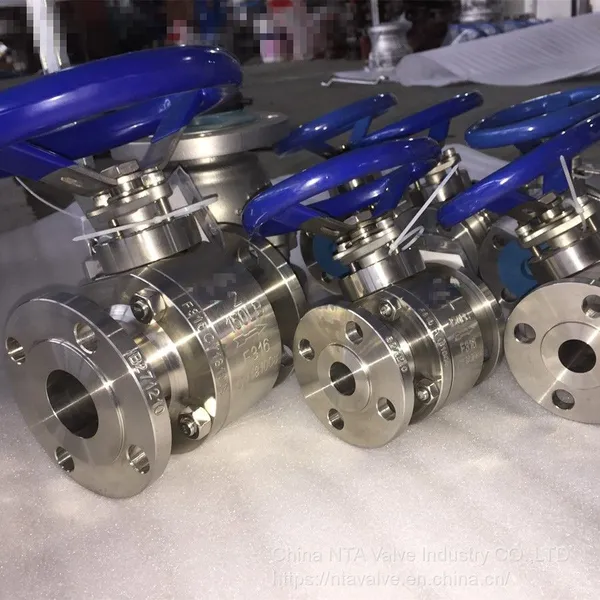

Floating Ball Valve Q41F/ Casting & Forged Material, CF8, CF8M, F304,F316
Negotiable
MOQ: 4 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
NTA
Place of Origin:
China
Material:
Forged
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CF8M/CF8/ WCB Ball ValveNegotiableMOQ: 1 Piece -
Trunnion Ball Valve Q347F/ Worm Gear ControlNegotiableMOQ: 1 Piece
-
Trunnion Ball Valve Q347F/ WCB,CF8,CF8M Body, ReducerNegotiableMOQ: 1 Piece
-
Eccentric Semi-ball Valve-NTANegotiableMOQ: 1 Piece
-
Flange API 6D Separating Pig Valve Ball Valve(Cleaning Pig Valve)NegotiableMOQ: 1 Piece
Brand Name
NTA
Place of Origin
China
Material
Forged
Structure
Ball
Standard or Nonstandard
Standard
Pressure
Medium Pressure
Power
Manual
Media
Water
Temperature of Media
Normal Temperature
| Type | Bolted Body/Welded Body | |||||
| Body Material | 25# steel, ASTM A105, LF2, F304, F316 | |||||
| Seat | Soft Seated | PTFE, RPTFE, Nylon, PEEK, PPL, Delrin, Devlon, PCTFE, PTFE Glass Filled, PTFE Carbon Filled | ||||
| Metal Seated | Stellite, Tunsten Carbide, Chrome Carbide | |||||
| Size Range | 1/2”-6” (DN15-DN150) | |||||
| Class Rating | ANSI Class 150-1500 | |||||
| End Connection | Flanged, Butt Welding | |||||
| Operator | Lever, Worm Gear, Electric, Penumatic | |||||
| Technical Specifications | ||||||
| Design Basis | GB | API | ASME | |||
| Design Standard | GB/T 12237 | API 608 | API 6D | ASME B16.34 | ||
| Face-to-Face | GB/T 12221 | ASME B16.10 | API 6D | ASME B16.10 | ||
| Connection End | Flanged | GB/T 9113 | ASME B16.5 | |||
| Butt-welding | GB/T 12224 | ASME B16.25 | ||||
| Material | NACE MR0175 | |||||
| Test & Inspection | JB/T 9092 | GB/T 19672 | API598 | API 6D | ASME B16.34 | |
| Fire Test | JB/T 6899 | API 6FA/API 607 | ||||
| Main performance parameter | ||||||
| DN | PN | Test pressure | Suitable Temperature | Suitable Medium | ||
| Shell test (Mpa) | High pressure seal test (Mpa) | Low pressure seal test (Mpa) | ||||
| 15-150 | 1.6 | 2.4 | 1.76 | 0.6 | -196℃~155℃(Different temp. for different raw material) | Water, Steam, Oil, Gas, Petrochemical and others; |
| 2.5 | 3.8 | 2.75 | ||||
| 4.0 | 6.0 | 4.4 | ||||
| 6.3 | 9.5 | 6.9 | ||||
| 10.0 | 15.0 | 11.0 | ||||
We offers all types of gate valve, includes casting wedged gate valve, forged gate valve, flat gate valve, knife gate valve, ect.
Material cover WCB, CF8, CF8M, A105, F304, F316, F316L and other steel alloy.
