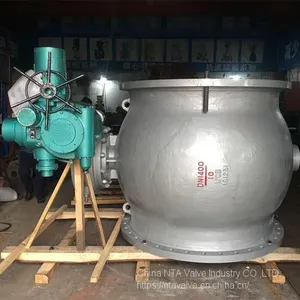

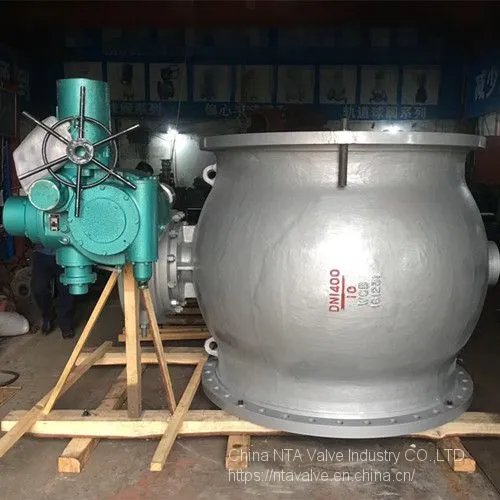

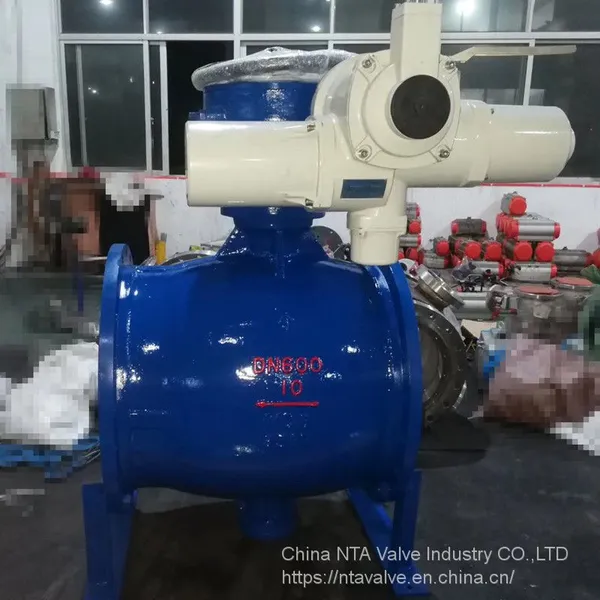

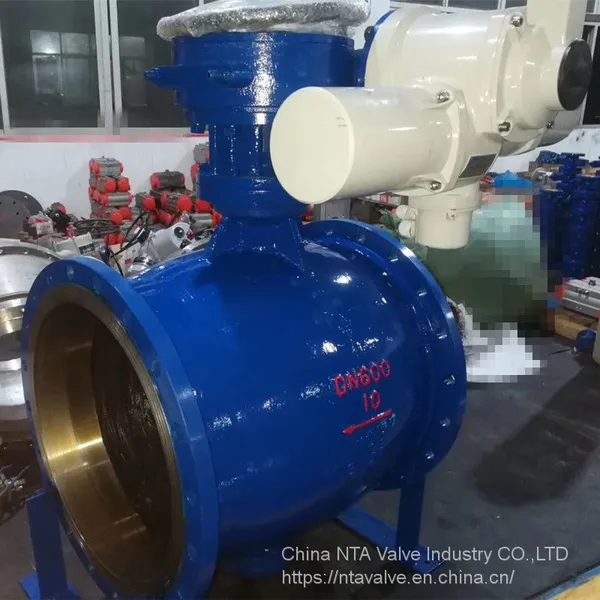

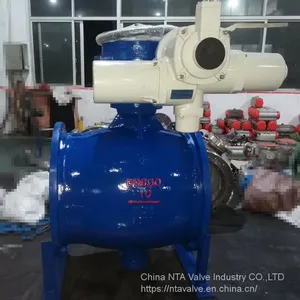

Help CenterEccentric Semi-ball Valve-NTA
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
NTA
Place of Origin:
China
Material:
Casting
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Flange API 6D Separating Pig Valve Ball Valve(Cleaning Pig Valve)NegotiableMOQ: 1 Piece -
3 Way Double Flanged Stainless Steel Ball Valve With Pneumatic ActuatorNegotiableMOQ: 1 Piece
-
Fully Welded Ball Valve All-welded Stainless Steel Ball ValveNegotiableMOQ: 1 Piece
-
Floating Ball Valve Q41F/ Casting & Forged Material, CF8, CF8M, F304,F316NegotiableMOQ: 4 Pieces
-
CF8M/CF8/ WCB Ball ValveNegotiableMOQ: 1 Piece
Brand Name
NTA
Place of Origin
China
Material
Casting
Application
General
Structure
Ball
Pressure
Medium Pressure
Power
Pneumatic
Media
Oil
Temperature of Media
Normal Temperature
| Type | Eccentric half ball | |||||
| Body Material | WCB,CF8, CF8M,CF3M | |||||
| Seat | PTFE, RPTFE, Nylon, PEEK, PPL, Delrin, Devlon | |||||
| Size Range | 1 1/2”-40” (DN40-DN800) | |||||
| Class Rating | Class 150~300 (PN2.5~ PN40) | |||||
| End Connection | Flanged, Butt Welding | |||||
| Operator | Lever, Worm Gear, Electric, Penumatic | |||||
| Technical Specifications | ||||||
| Design Basis | GB | API | ASME | |||
| Design Standard | GB/T 12237 | API 608 | API 6D | ASME B16.34 | ||
| Face-to-Face | GB/T 12221 | ASME B16.10 | API 6D | ASME B16.10 | ||
| Connection End | Flanged | GB/T 9113 | ASME B16.5 | |||
| Butt-welding | GB/T 12224 | ASME B16.25 | ||||
| Material | NACE MR0175 | |||||
| Test & Inspection | JB/T 9092 | GB/T 19672 | API598 | API 6D | ASME B16.34 | |
| Fire Test | JB/T 6899 | API 6FA/API 607 | ||||
| Main performance parameter | ||||||
| DN | PN | Test pressure | Suitable Temperature | Suitable Medium | ||
| Shell test (Mpa) | High pressure seal test (Mpa) | Low pressure seal test (Mpa) | ||||
| 40-800 | 1.0 | 1.5 | 1.1 | 0.6 | -196℃~600℃(Different temp. for different raw material) | Water, Steam, Oil, Gas, Petrochemical and others; |
| 1.6 | 2.4 | 1.76 | ||||
| 2.5 | 3.8 | 2.75 | ||||
| 4.0 | 6.0 | 4.4 | ||||
We offers all types of ball valve, includes floating ball valve, trunnion ball valve, three-way ball valve, eccentric semi-ball valve, V-port ball valve, pig valve,ect.
Material cover WCB, CF8, CF8M, A105, F304,F316, and other steel alloy.
