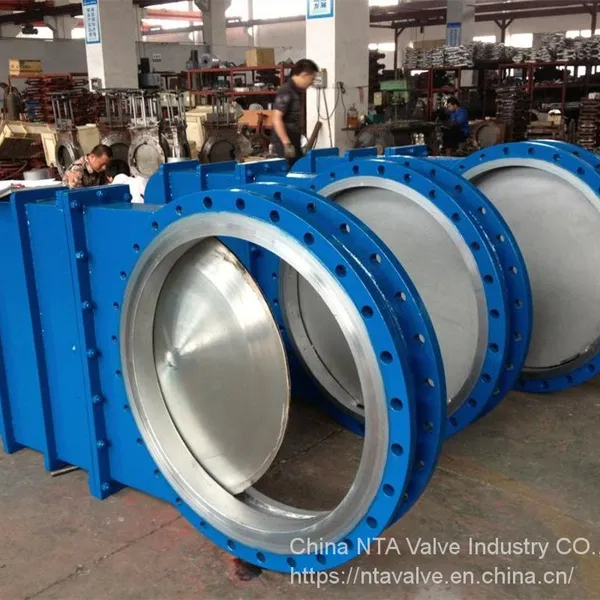

PZ573H/Y Flanged Wafer Electric Pneumatic Slurry Knife Gate Valve
Negotiable
/ Piece
1 Piece(Min.Order)
- 10000 Piece / Pieces per Month
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
You May Like
Product Details
Brand Name: | NTA | Place of Origin: | China | Material: | Casting |
Application: | General | Structure: | Gate | Standard or Nonstandard: | Standard |
Pressure: | Low Pressure | Power: | Pneumatic | Media: | Water |
Temperature of Media: | Normal Temperature |
Product Description
Type | PZ573H/Y | |||||
Body Material | ASTM A216 WCB, CF8, HT250 | |||||
Seat | EPDM, PTFE | |||||
Size Range | 3”-64” (DN80-DN1600) | |||||
Class Rating | PN6~PN16 | |||||
End Connection | Wafer, Flange | |||||
Operator | Hand wheel, Gear box operator, Electrical actuator, Pneumatic actuator | |||||
Technical Specifications | ||||||
Design Basis | GB | API | ASME | |||
Design Standard | JB/T 8691 | API 600 | API 6D | ASME B16.34 | ||
Face-to-Face | GB/T 12221 | ASME B16.10 | API 6D | ASME B16.10 | ||
Connection End | Flanged | GB/T 9113 | ASME B16.5 | |||
Material | NACE MR0175 | |||||
Test & Inspection | JB/T 9092 | GB/T 13927 | API598 | API 6D | ASME B16.34 | |
Fire Test | JB/T 6899 | API 6FA/API 607 | ||||
Main performance parameter | ||||||
DN | PN | Test pressure | Suitable Temperature | Suitable Medium | ||
Shell test (Mpa) | High pressure seal test (Mpa) | Low pressure seal test (Mpa) | ||||
80-1600 | 0.6 | 0.9 | 0.7 | 0.6 | -40℃~80℃(Different temp. for different raw material) | Water, Gas, and other causticity medium; |
1.0 | 1.5 | 1.1 | ||||
1.6 | 2.4 | 1.76 |
We offers all types of gate valve, includes casting wedged gate valve, forged gate valve, flat gate valve, knife gate valve, ect.
Material cover WCB, CF8, CF8M, A105, F304, F316, F316L and other steel alloy.
