KZ543WBF-16С Flat Gate Valve

KZ543WBF-16С Flat Gate Valve thumbnail-1
KZ543WBF-16С Flat Gate Valve thumbnail-2
KZ543WBF-16С Flat Gate Valve photo-1

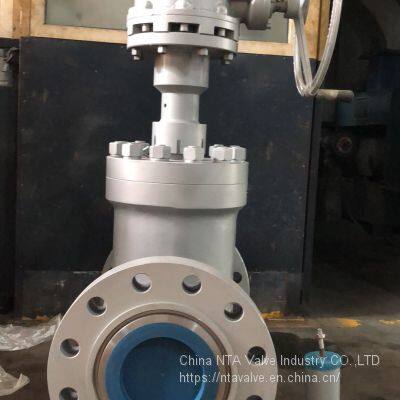

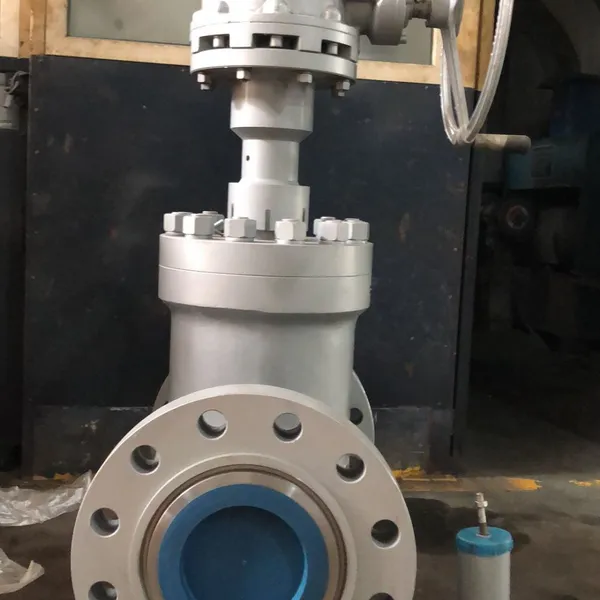

KZ543WBF-16С Flat Gate Valve photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
NTA
Place of Origin:
China
Material:
Casting
Contact Supplier Request Quote Chat Now
China NTA Valve Industry CO.,LTD
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name NTA
Place of Origin China
Material Casting
Application General
Structure Gate
Standard or Nonstandard Standard
Pressure Medium Pressure
Power Manual
Media Gas
Temperature of Media Normal Temperature
Type Z43WF, Z543WF, Z643WF, QZ 43WHF, Z43PF
Body Material ASTM A216 WCB WCC; ASTM A217 WC1 WC6 WC9;     ASTM A351 CF8,A351 CF8M,
  A351 CF3,A351 CF3M,A351 CN7M; ASTM A352 LC1 LCB LCC LC3                               (Cast Steel, Alloy Steel, Stainless Steel, Special Steel)
Seat Surfacing 13Cr, 304, STL
Size Range 2”-64” (DN50-DN1600)
Class Rating ANSI Class 150-1500
End Connection BW,SW
Operator Hand wheel, Gear box operator, Electrical actuator, Pneumatic actuator







Technical Specifications





Design Basis GB API ASME
Design Standard GB/T 12234 API 600 API 6D ASME B16.34
Face-to-Face GB/T 12221 ASME B16.10 API 6D ASME B16.10
Connection End Flanged GB/T 9113 ASME B16.5
Butt-welding GB/T 12224 ASME B16.25
Material NACE MR0175
Test & Inspection JB/T 9092 GB/T 19672 API598 API 6D ASME B16.34
Fire Test JB/T 6899 API 6FA/API 607







Main performance parameter





DN PN Test pressure Suitable Temperature Suitable Medium
Shell test (Mpa) High pressure seal test (Mpa) Low pressure seal test (Mpa)
50-1600 1.6  2.4 1.76 0.6  -196℃~350℃(Different temp. for different raw material) Water, Steam, Oil, Gas, Petrochemical and others;
2.5  3.8 2.75
4.0  6.0  4.4
6.3  9.5  6.9
10.0  15.0  11.0


We offers all types of gate valve, includes casting wedged gate valve, forged gate valve, flat gate valve, knife gate valve, ect.

Material cover WCB, CF8, CF8M, A105, F304, F316, F316L and other steel alloy.

Email: office@ntavalve.com

What's app: (086)15308643535

Skype: Julie Seh


Product Tags: China , manufacturer , KZ43WBF , Flat Gate Valve , KZ47WF , gate valve , Z43WF , Z43PF , flat-plate
