Vibrating Feeder

Vibrating Feeder thumbnail-1
Vibrating Feeder thumbnail-2
Vibrating Feeder thumbnail-3
Vibrating Feeder thumbnail-4
Vibrating Feeder thumbnail-5
Vibrating Feeder photo-1

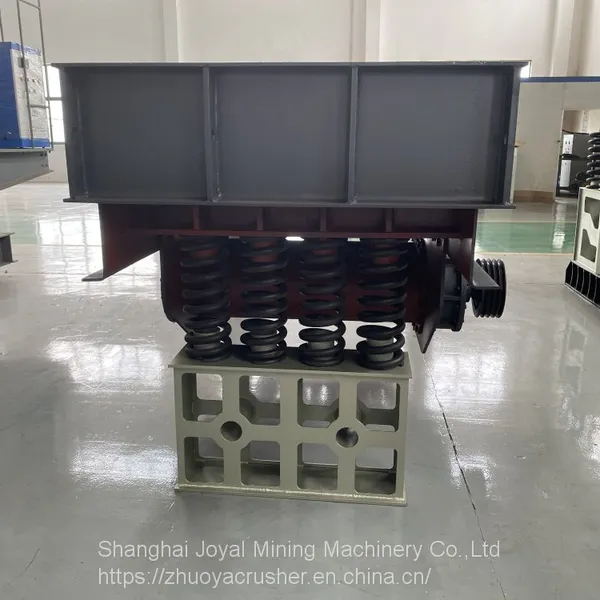

Vibrating Feeder photo-2

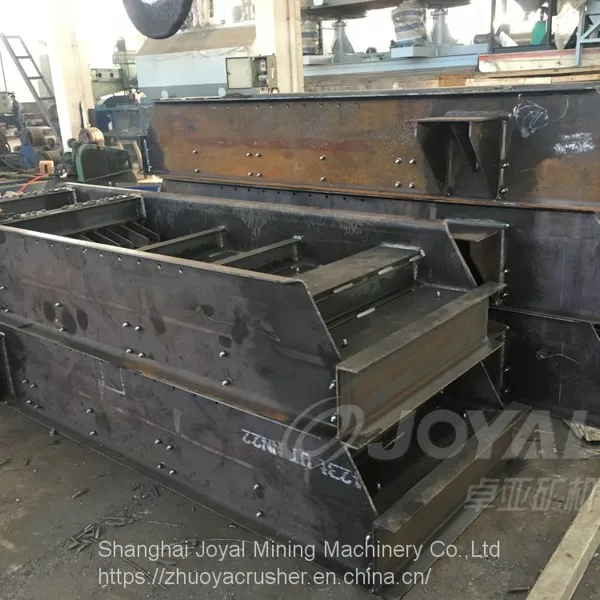

Vibrating Feeder photo-3
Vibrating Feeder photo-4

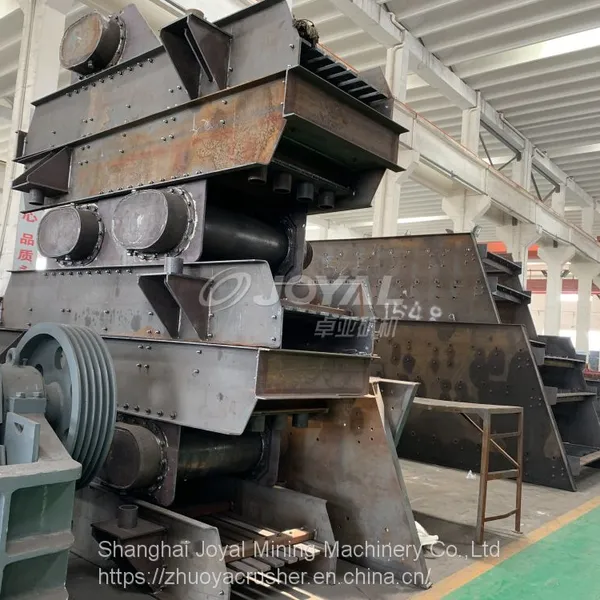

Vibrating Feeder photo-5
US$ 5000 - 23000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
JOYAL
Place of Origin:
China
Model Number:
GZD750X2500, GZD850X3000,GZD960X3800,GZD1100X4200,GZD1100X4900,GZD1300X4900,GZD1500X6000
Contact Supplier Request Quote Chat Now
Shanghai Joyal Mining Machinery Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name JOYAL
Place of Origin China
Model Number GZD750X2500, GZD850X3000,GZD960X3800,GZD1100X4200,GZD1100X4900,GZD1300X4900,GZD1500X6000
Certification ISO, CE, CQC
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12months
Weight 1.6-8.7tons
Dimension(L*W*H) 2580x1100x1400mm
Power Type Electric
Application mining industry,building materials, metallurgy, coal, etc
Condition New
Power(W) 3000-30000
Capacity(t/h) 50-700

The JOYAL Vibrating Feeder is a kind of linear direction feeding equipment. It can send shaped and granule materials into crusher evenly, timely and continuously as well as screen the materials roughly. The vibrating feeder is widely used in crushing and sieving production line such as metallurgy, building material, chemical industry, coal, mining and grinding industry.


Applications: Vibrating feeders are widely used in crushing and screening production lines in metallurgy, building materials, chemical, coal, mineral processing, abrasives and other industries.

Working Principle

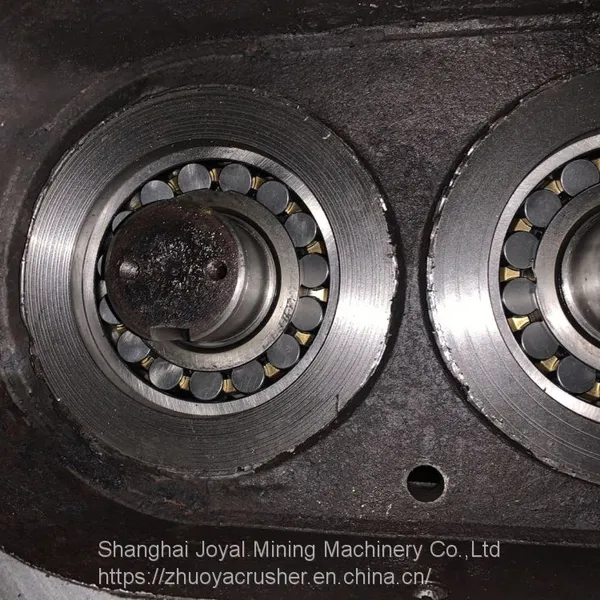

Vibrating feeder is made of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator consists two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. By drive of the motor, the two eccentric shafts start rotating to generate a linear huge power which forces the feeder to vibrate back and forth. Through the vibration, The materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller material will fall down, avoiding the further crushing, so screening purpose is reached.

Product Advantages

  1. The feed chute is equipped with single layer of grate bars, which can be simply pre-screen the materials, to remove the fine materials and sundries inside of raw materials.

  2. Simple and compact structure, no rotary parts, few quick-wear parts and able to run under dusty or watery environment.

  3. This machine adopts double eccentric shaft vibrating exciter, stable amplitude and continuous feeding with high efficiency.

  4. Low noise, no pollution.


Product Tags: GZD Feeder , Vibrating Feeder
