Home > Products > Screening machine > Vibrating Screen

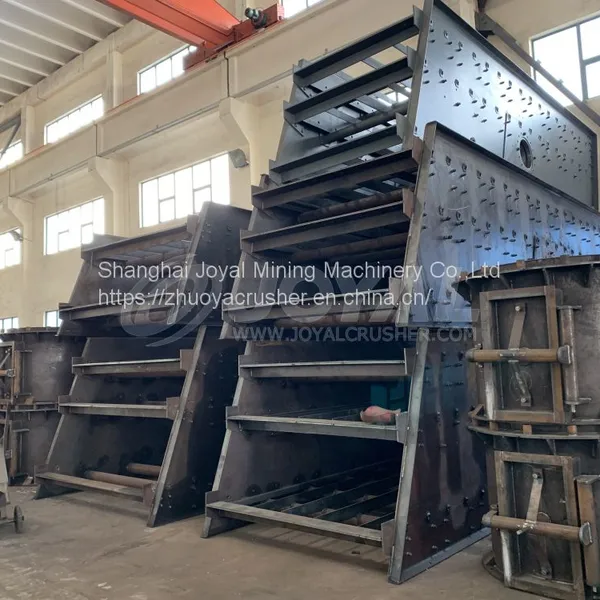

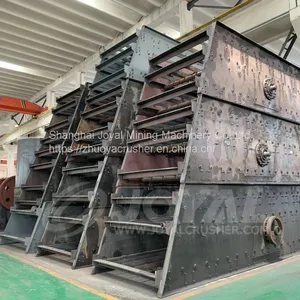

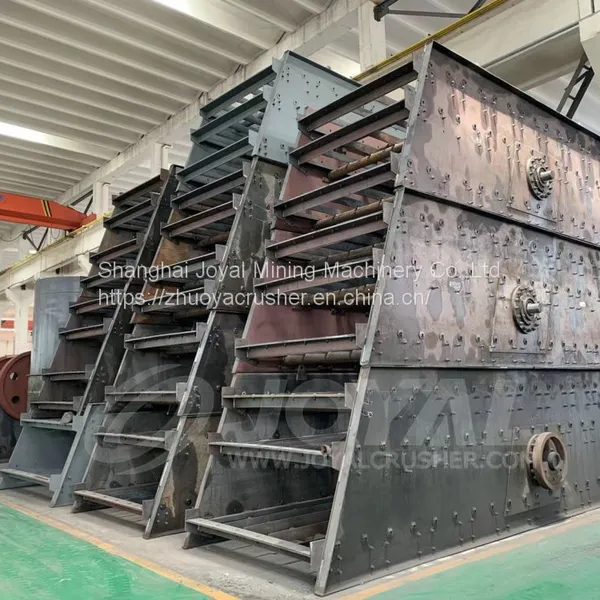

Vibrating Screen
USD $10000 - $10500
/ Set
1 Set(Min.Order)
- 0 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Cash Other
- 30 days
You May Like
Product Details
| Brand Name: | JOYAL | Place of Origin: | China | Model Number: | 2YZS1237,3YZS1237 |
| Type: | Circular | Certification: | ISO, CE, CQC | Application: | Other, mining, ore screening |
| After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 12months | Weight: | 2400kgs |
| Dimension(L*W*H): | 4773x2050x2700mm | Voltage: | 380/460/440/415V,50/60HZ | Condition: | New |
| Power(W): | 11000 |
Product Description
Circular Vibrating Screen is widely used for grading and screening materials in the fields of minerals, quarry, building materials, etc. Our vibrating screen has multi-layers and its screen size is various, it can screen out many kind of materials with different sizes.
Applications: Circular vibrating screen is widely used in product screening and grading in mining, building materials, transportation, energy, chemical and other industries.
Working PrincipleThe vibrating screen is to drive vibrator through V-belt under the power of ordinary motor, so that the screen body along the vibrating power direction to make a cyclical reciprocating, the material in the screen surface to make round movement, so as to make the materials sieved.
Specifications - Technical Data| Model | Screen Cloth Size | Screen Decks | Screen Opening Size | Max. Feeding Size | Capacity (t/h) | Motor Power | Weight (t) | Overall Dimension (mm) |
| 2YZS1237 | 3700×1200 | 2 | 3-50 | 200 | 10-80 | 11 | 2.40 | 4773×2050×2247 |
| 3YZS1237 | 3700×1200 | 3 | 3-50 | 200 | 10-80 | 11 | 3.05 | 4773×2050×2700 |
| 2YZS1548 | 4800×1500 | 2 | 3-100 | 400 | 30-200 | 15 | 5.35 | 5900×2270×1620 |
| 3YZS1548 | 4800×1500 | 3 | 3-100 | 400 | 30-200 | 15 | 6.07 | 5900×2270×1670 |
| 2YZS1848 | 4800×1800 | 2 | 3-100 | 400 | 50-280 | 18.5 | 6.15 | 5900×2560×1620 |
| 3YZS1848 | 4800×1800 | 3 | 3-100 | 400 | 50-280 | 18.5 | 6.93 | 5900×2560×1670 |
| 2YZS1860 | 6000×1800 | 2 | 3-100 | 400 | 65-550 | 22 | 6.95 | 7060×2560×1620 |
| 3YZS1860 | 6000×1800 | 3 | 3-100 | 400 | 65-550 | 22 | 7.70 | 7060×2560×1670 |
| 4YZS1860 | 6000×1800 | 4 | 3-100 | 400 | 65-550 | 30 | 8.70 | 7060×2560×1930 |
| 2YZS2160 | 6000×2100 | 2 | 3-100 | 400 | 81-720 | 22 | 8.48 | 7130×2990×1760 |
| 3YZS2160 | 6000×2100 | 3 | 3-100 | 400 | 81-720 | 30 | 9.24 | 7130×2990×1810 |
| 4YZS2160 | 6000×2100 | 4 | 3-100 | 400 | 81-720 | 30 | 10.45 | 7130×2990×1930 |
| 2YZS2460 | 6000×2400 | 2 | 3-150 | 400 | 100-810 | 30 | 12.35 | 7130×4121×1810 |
| 3YZS2460 | 6000×2400 | 3 | 3-150 | 400 | 100-810 | 37 | 13.85 | 7130×4121×1940 |
| 4YZS2460 | 6000×2400 | 4 | 3-150 | 400 | 100-810 | 37 | 15.60 | 7130×4121×2080 |
