Ball mill is the key equipment for secondary grinding after crushing. And it is suitable for grinding all kinds of ores and other materials, no matter wet grinding or dry grinding. Besides, it is mainly applied in many industries, such as ferrous&non-ferrous metal mine, coal, traffic, light industry, etc.
Applications: Black, non-ferrous metal mines, building materials, chemicals, light industry and other departments.
Working PrincipleThe Ball mill can be divided into lattice type and overflow type according to different beneficiation methods, and this machine is two lattice-type ball mill.

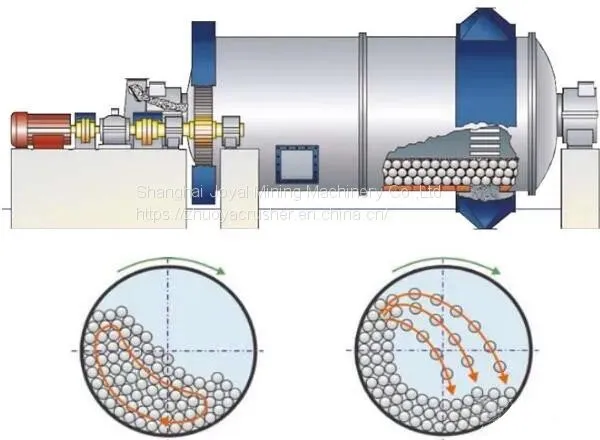

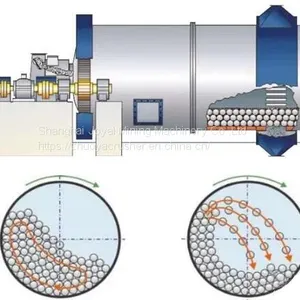

The materials from the feeding fittings enter the first bin of the milling machine via the feeding hollow axis evenly when it works. There is a ladder-like or ripple-like scaleboard in the first bin, and different specification steel balls are installed in the bin. When the cylinder rotates, which generating centrifugal force to carries steel balls to a certain height and then balls fall to strike and grind the material. After primary grinding in the first bin, the material then enters into the second bin via a single layer partition board. There is a scaleboard and steel balls in the second bin, so the materials are further ground. In the end, the powder is discharged by output material board.
| Model | Cylinder rotary speed（r/min） | Loading ball weight(t) | Input size(mm) | Discharge size(mm) | Capacity(t/h) | Motor power(kw) | Weight(t) |
| Ф900×1800 | 39 | 1.5 | ≤20 | 0.075-0.89 | 0.8-2 | 18.5 | 4.6 |
