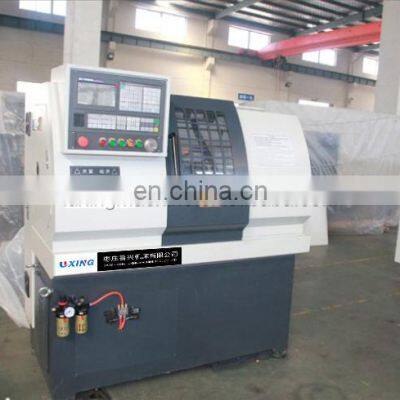

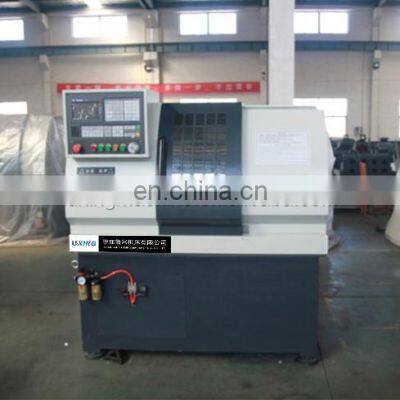

Luxing small cnc lathe machine siemens J40 J35 product cnc machine lathe
CNC lathe use:
This machine is widely used in processing and manufacturing the electrical appliance, instrumentation industry, automobile, motorcycle, fastener bearings, photographic and film machinery, hardware tools, watches, glasses, stationery, motors, valves and gas pipe and other high precision and complex components. It is the ideal high efficient equipment in the hardware machining industry.
CNC lathe features:
High frequency quenching, hardness and high wear resistance;
Spindle with angular contact ball bearing, high speed and high rigidity;
Is the meter lathe upgrade products, has a very high price performance;

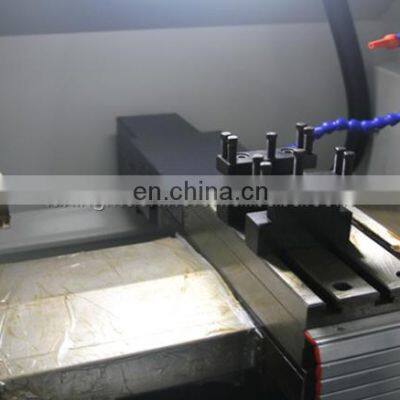

Standard configuration: pneumatic spring collet, gang tool post.
Optional configuration: electric tool post, automatic feeding device, tailstock.
Machine main specifications:
Specifications |
Unit |
J40 |
Max. swing over bed |
mm |
Φ230 |
Max. swing over cross slide |
mm |
Φ125 |
Max. processing length |
mm |
200 |
X/Z axis max. travel |
mm |
300/320 |
Spindle nose |
|
A2-5 |
Spindle bore |
mm |
Φ48 |
Bar capacity |
mm |
Φ40 |
Max. Spindle speed |
rpm |
150-2500 |
Chuck form |
|
Collet clamp |
Spindle motor power |
kw |
3 |
X/Z axis repeatability |
mm |
±0.005 |
X/Z axis feed motor torque |
N.m |
X:4 Z:4 |
X/Z rapid traverse |
m/min |
8/10 |
Tail stock quill dia. |
mm |
Can optional (45) |
Quill traverse |
mm |
50 |
Quill taper |
# |
MT4 |
Cutting tool shape size |
mm |
16*16 |
Guide form |
|
Double mountain |
Total power capacity |
KVA |
6 |
Machine dimension(L*W*H) |
mm |
1500*1050*1700 |
Net weight(About) |
kg |
850 |
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
