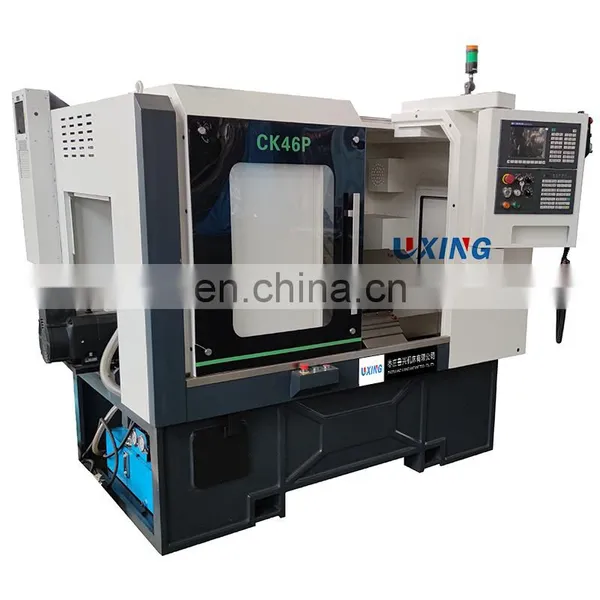

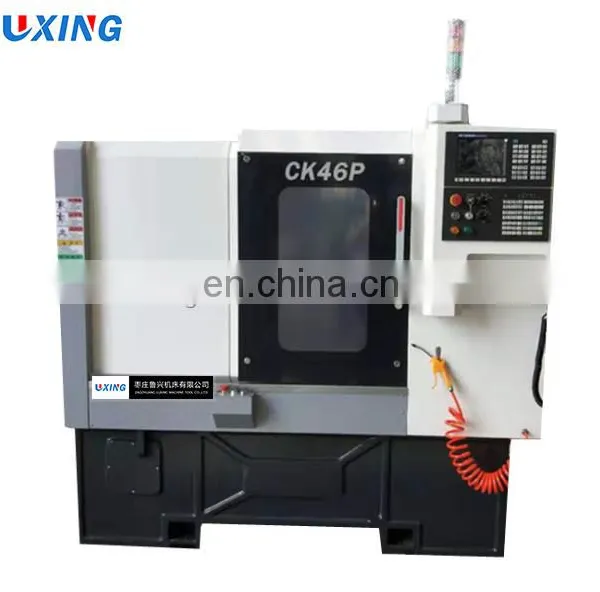

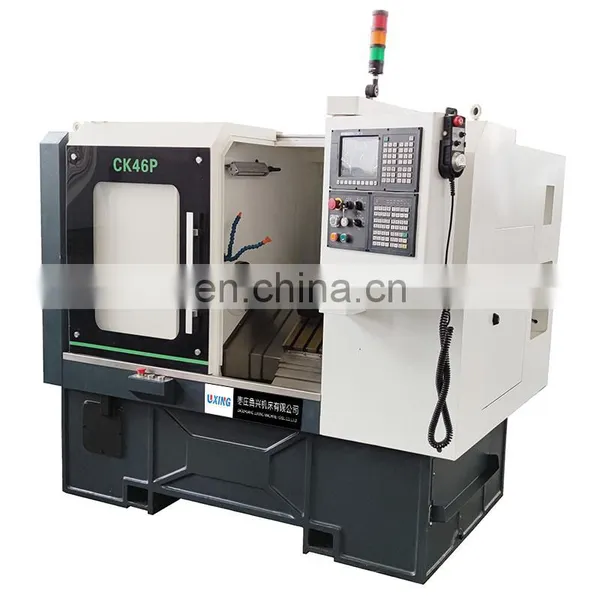

combination lathe milling machine cnc CK46P german cnc machines metal lathe medium
Machine main specifications:
Specifications |
Units |
CK46P |
Max.swing over bed |
mm |
360 |
Max. Swing over cross slide |
mm |
110 |
Max. Processing length |
mm |
330 |
Cross slide length |
mm |
600 |
Distance between cross slide and spindle axis |
mm |
55 |
Spindle nose |
A2-5 |
|
Spindle speed range |
R/min |
50-5000 |
Spindle bore |
mm |
56 |
Bar capacity |
mm |
45 |
Spindle motor power |
kw |
7.5 |
X/Z axis travel |
mm |
410/330 |
Tool post type |
Gang type tool post |
|
X/Z axis positioning accuracy |
mm |
0.006 |
X/Z axis repositioning accuracy |
mm |
0.003 |
X/Z rapid traverse |
Mm/min |
24000 |
Machine dimension(LxWxH) |
mm |
2400x1700x1600 |
Net weight |
Kg |
2800 |
Details:
1.Taiwan linear rail;
2.High rigidity and service life of the spindle;
3.Taiwan ballscrew;
2.High rigidity and service life of the spindle;
3.Taiwan ballscrew;
4.Gang type tool post;

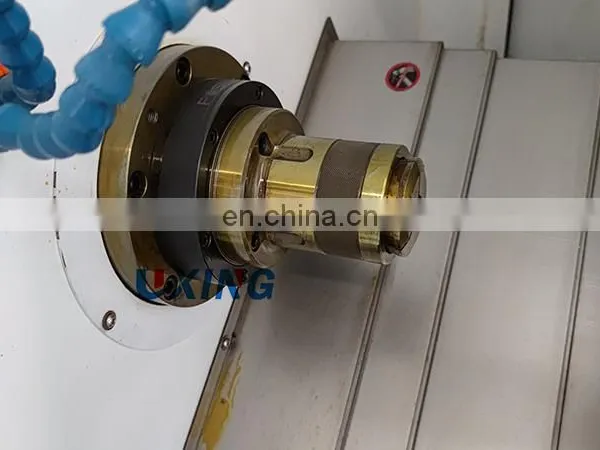

5.Collet chuck.
6.GSK,Siemens,FANUC Syntec control system.
Optional accessories:
Hydraulic chuck;
electric tool post Or hydraulic tool post;
Siemens,FANUC,KND etc.
electric tool post Or hydraulic tool post;
Siemens,FANUC,KND etc.
