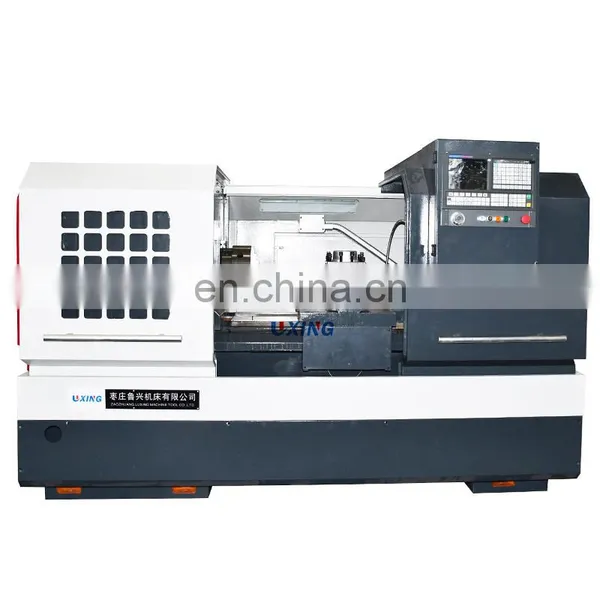

High Precision Flat Bed Automatic Turning Center Parallel Torno GSK Siemens Fanuc Control Cnc Lathe Machine Horizontal CAK6140
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Auto Cnc Horizontal Lathe Machine CAK6150/750/1000/1500/2000mm PricesNegotiableMOQ: 1 -
Flat Bed High Precision Heavy Duty Cnc Lathe Machine Turning Center CK6152E Price for SaleNegotiableMOQ: 1
-
High Precision 45 Degree Slant Bed Auto Torno Cnc Lathe Machine Turning Center TCK6340NegotiableMOQ: 1
-
High Precision Speed Slant Bed Inclined Auto Turning Center Cnc Lathe Machine TCK6340SNegotiableMOQ: 1
-
Small Linear Rail Guide Slant Bed Fanuc China Cnc Lathe Machine TCK6340NegotiableMOQ: 1
High precision flat bed automatic turning center parallel torno GSK Siemens fanuc control cnc lathe machine horizontal CAK6140
Application :
CAK series CNC lathe machine is an economical ,practical type machine tools iwth good quality .
The machine has a very wide use which is suitable or internal and external turning ,tapering,circular arc ,thread ,boring ,reaming of axle and disk workpiece .It also can achieve non-circular curve machining ,You can choose the CNC system and optional accessories according to your requirement .
The machine has a very wide use which is suitable or internal and external turning ,tapering,circular arc ,thread ,boring ,reaming of axle and disk workpiece .It also can achieve non-circular curve machining ,You can choose the CNC system and optional accessories according to your requirement .
Product main technical specifications:
SPECIFICATIONS |
Units |
CAK6140 CAK6140B CAK6140C |
CAK6150 CAK6150B CAK6150C |
CAK6161 CAK6161B CAK6161C |
CAK6166 CAK6166B CAK6166C |
CAK6180 CAK6180B CAK6180C |
||||
Swing over bed |
mm |
400 |
500 |
610 |
660 |
800 |
||||
Swing over cross slide |
mm |
180 |
280 |
350 |
380 |
520 |
||||
Distance between centers |
mm |
750/1000/1500/2000/3000 |
||||||||
Spindle bore |
mm |
52,(80 for B),[105 for C] |
||||||||
Spindle bore taper |
- |
MT6,(φ90 1:20 for B),[φ113 1:20 for C] |
||||||||
Spindle nose type |
- |
C6,(D8 for B),[D8 for C] |
||||||||
Spindle speed steps |
- |
Manual 3 steps (Optional: stepless) |
||||||||
Spindle speed range |
rpm |
21-150,66-500,162-1500 (Optional: 100-1600 ) |
||||||||
Turret/tool post |
- |
Electric 4 position |
Electric 4 position |
Electric 4 position |
Electric 4 position |
Electric 4 position |
||||
Tool size |
mm |
25 x 25 |
25 x 25 |
25 x 25 |
25 x 25 |
25 x 25 |
||||
X axis travel |
mm |
200 |
250 |
310 |
330 |
400 |
||||
Z axis travel |
mm |
750/1000/1500/2000/3000 |
||||||||
X axis rapid traverse |
mm/min |
6000 |
6000 |
6000 |
6000 |
6000 |
||||
Z axis rapid traverse |
mm/min |
10000 |
10000 |
10000 |
10000 |
10000 |
||||
Tailstock quill diameter |
mm |
75 |
75 |
75 |
75 |
75 |
||||
Tailstock quill taper |
- |
MT5 |
MT5 |
MT5 |
MT5 |
MT5 |
||||
Tailstock quill travel |
mm |
150 |
150 |
150 |
150 |
150 |
||||
Main spindle motor |
kw |
7.5 |
7.5 |
7.5 |
11 |
11 |
||||
Coolant pump motor |
kw |
0.125 |
0.125 |
0.125 |
0.125 |
0.125 |
||||
Weight for 750 |
kg |
2450 |
2500 |
2550 |
2650 |
2750 |
||||
Weight for 1000 |
kg |
2550 |
2600 |
2650 |
2750 |
2850 |
||||
Weight for 1500 |
kg |
2650 |
2700 |
2750 |
2850 |
2950 |
||||
Weight for 2000 |
kg |
3050 |
3150 |
3250 |
3350 |
3450 |
||||
Weight for 3000 |
kg |
3850 |
3950 |
4050 |
4150 |
4250 |
||||
Dimension for 750 |
mm |
2550x1650x1700 |
2550x1650x1750 |
2550x1700x1800 |
2550x1750x1850 |
2550x1750x1900 |
||||
Dimension for 1000 |
mm |
2750x1650x1700 |
2750x1650x1750 |
2750x1700x1800 |
2750x1750x1850 |
2750x1750x1900 |
||||
Dimension for 1500 |
mm |
3250x1650x1700 |
3250x1650x1750 |
3250x1700x1800 |
3250x1750x1850 |
3250x1750x1900 |
||||
Dimension for 2000 |
mm |
3700x1650x1700 |
3700x1650x1750 |
3700x1700x1800 |
3700x1750x1850 |
3700x1750x1900 |
||||
Dimension for 3000 |
mm |
4710x1650x1700 |
4710x1650x1750 |
4710x1700x1800 |
4710x1750x1850 |
4710x1750x1900 |
||||
Details:
Standard accessories:
GSK980TC3 or GSK980TDC system;

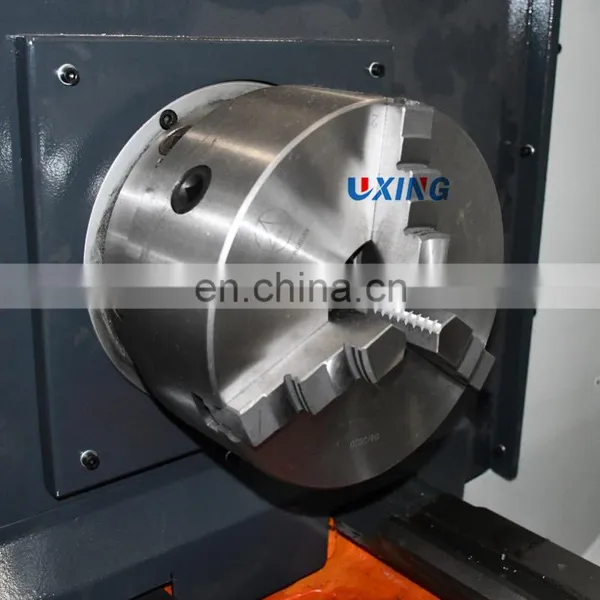

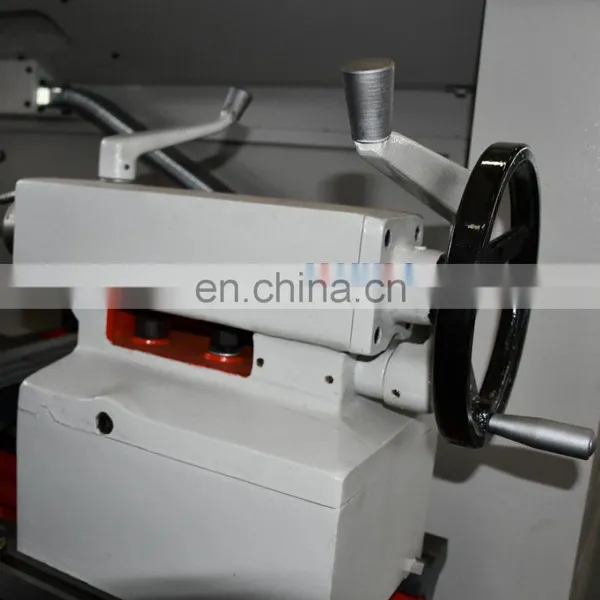

Manual chuck,manual tailstock;

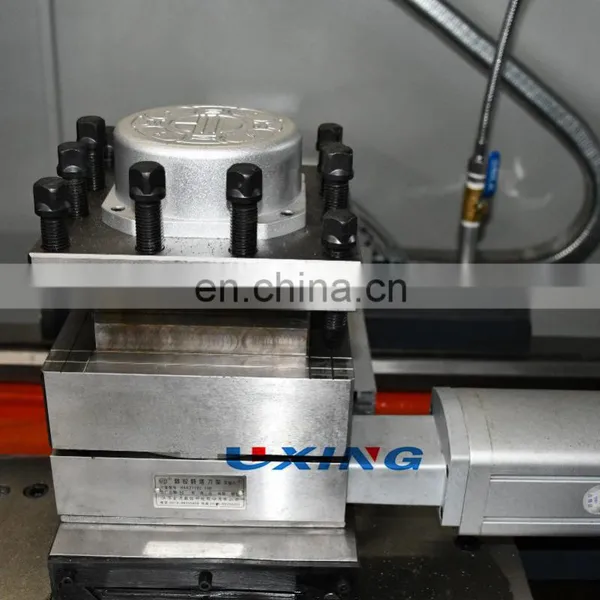

4 station electric tool post;
Manual three steps spindle speed.
Manual chuck,manual tailstock;
4 station electric tool post;
Manual three steps spindle speed.
Optional accessories:
Siemens or Fanuc system;
Hydraulic chuck ,hydraulic tailstock;
6 or 8 station turret;
Independent spindle;
Automatic chip conveyor.
Hydraulic chuck ,hydraulic tailstock;
6 or 8 station turret;
Independent spindle;
Automatic chip conveyor.
Recommend products:
FAQ:
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
