Flat Bed High Precision Heavy Duty Cnc Lathe Machine Turning Center CK6152E Price for Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Precision 45 Degree Slant Bed Auto Torno Cnc Lathe Machine Turning Center TCK6340NegotiableMOQ: 1 -
High Precision Speed Slant Bed Inclined Auto Turning Center Cnc Lathe Machine TCK6340SNegotiableMOQ: 1
-
Small Linear Rail Guide Slant Bed Fanuc China Cnc Lathe Machine TCK6340NegotiableMOQ: 1
-
Slant Bed Turret Cnc Instrument Lathe Machine Horizontal TCK46A TCK56ANegotiableMOQ: 1
-
Luxing Mini Cnc Lathe Machine Ck6132 Ck6130NegotiableMOQ: 1
Flat bed high precision heavy duty cnc lathe machine turning center CK6152E price for sale
Product application:
The machine through the numerical control system,this machine could process different inner bore,ex-circle,circular conical surface and screw thread,especially suitable for the small and middle-sized shaft and plate work piece from rough processing in batch.It has advantages like higher automaticity,simpler programming and higher accuracy.
Product features:
Higher stability one-piece machine bed
3-gear spindle speed,step-less in gear
Higher rigidity pedestal
Wider layer board
Integrated automatic lubrication system
Standard accessories:

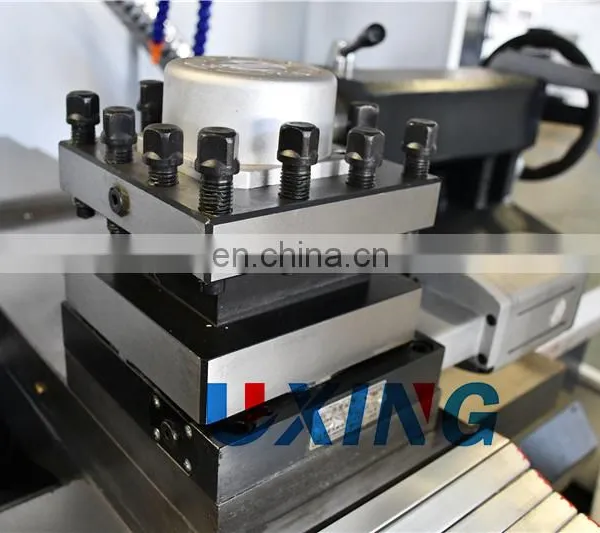

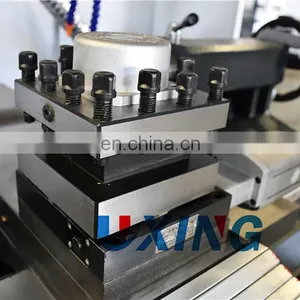

Eletric 4 position ,3-jaw manual, manual tailstock, automatic lubrication, coolant pump, semi-shield
Optional accessories:
Fanuc or other brand CNC controller, hydraulic or power turret, hydraulic tailstock, full-shield
Machine main specifications:
Specifications |
Unit |
CK6152E |
CK6165E |
Max.swing over bed |
mm |
Φ530 |
Φ650 |
Max.swing over cross slide |
mm |
Φ280 |
Φ375 |
cessing length |
mm |
825/1325 |
1000/1500/2000/3000 |
X/Z axis travel |
mm |
X:330 Z:1000/1500 |
X:400 Z:1200/1650/2200/3100 |
Spindle transmission type |
3 steps variable speed |
3 steps variable speed |
|
Spindle speed steep |
stepless |
stepless |
|
Spindle speed |
rpm |
30-150,90-450,315-1600 |
10-85,40-350,110-850 |
Spindle nose |
A8 |
C11 |
|
Spindle bore |
mm |
Φ90 |
Φ105 |
Spindle taper |
Metric 100-1:20 |
Metric 120-1:20 |
|
Spindle motor |
kW |
7.5 |
11 |
Chuck size |
mm |
Φ250 |
Φ320 |
Ball screw dia.and pitch |
2506/4010 |
2505/5010 |
|
X/Z axis feed motor torque |
N.m |
X:7.5 Z:10 |
X:10 Z:15(30) |
X/Z axis rapid traverse |
m/min |
6/10 |
4/5 |
X/Z axis repeatability |
mm |
±0.005 |
±0.005 |
Processing accuracy |
IT6-IT7 |
IT6-IT7 |
|
Workpiece surface roughness |
Ra1.6 |
Ra1.6 |
|
Tailstock sleeve dia. |
mm |
Φ75 |
Φ100 |
Tailstock sleeve travel |
mm |
150 |
250 |
Tailstock sleeve taper |
# |
MT5 |
MT6 |
Tool post type |
4 station electric tool post (optional:6 station turret) |
4 station electric tool post (optional:6 station turret) |
|
Cutting tool shape size |
mm |
25x25 |
32x32 |
Guide form |
Flat bed |
Flat bed |
|
Total power capacity |
KVA |
12.5 |
15 |
Machine dimension(LxWxH) |
mm |
2570/3070x1550x1710 |
3200/3700/4200/5200x1800x1900 |
Net weight |
kg |
3150/3400 |
3900/4500/5400 |
Details:
FAQ:
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Manual mills,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
