China VMC320 Mini Cnc Milling Machine Machining Center Small Size
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3 Axis Mini Size Small VMC320 Cnc Vertical Machining Center CheapNegotiableMOQ: 1 -
3/ Four-axis CNC Vertical Machining Center VMC650 With AtcNegotiableMOQ: 1
-
Luxing Cnc Metal Milling Machine XK7136 Vertical Machining CenterNegotiableMOQ: 1
-
High Speed VMC 8000rpm 10000rpm Vertical Machining Center V65 VMC650 Cnc Milling Machine Price for SaleNegotiableMOQ: 1
-
High Precision 3/4/5 Axis VMC850 FANUC Control Cnc Milling Machine Vertical Machining Center PriceNegotiableMOQ: 1

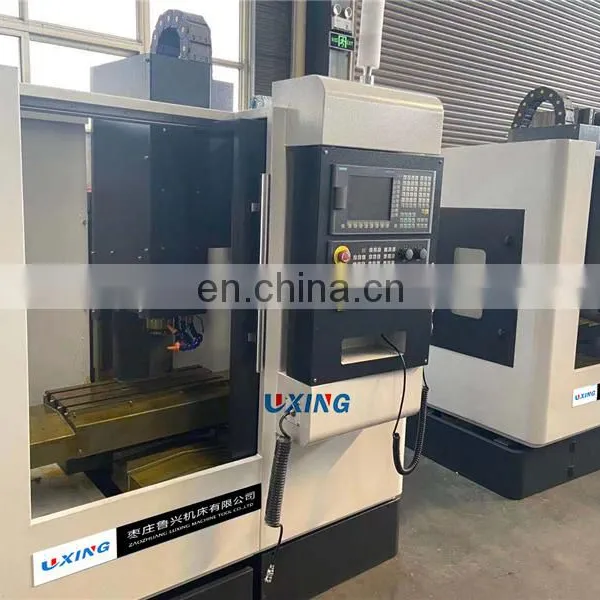

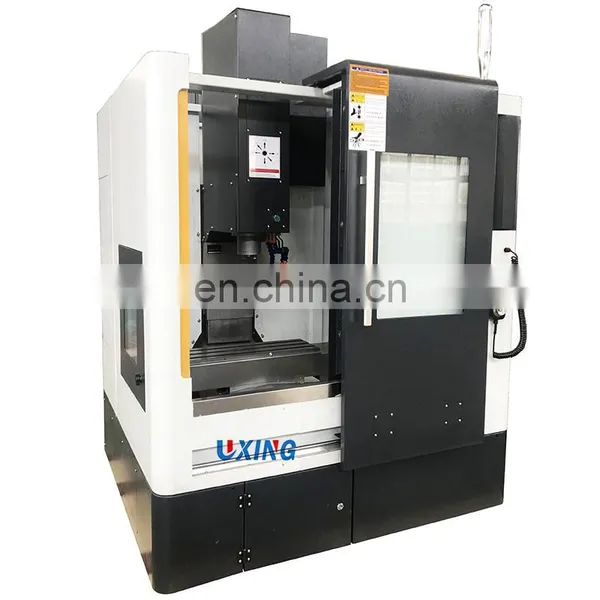

China VMC320 mini cnc milling machine machining center small
Product Characteristics:

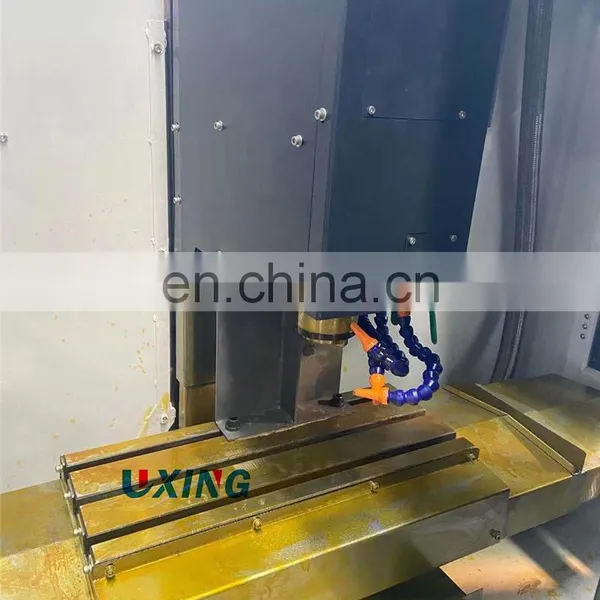

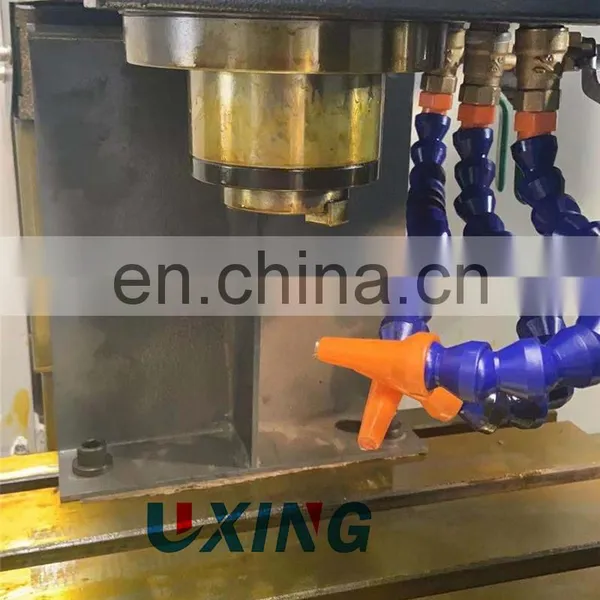

1. Precision BT30 Spindle
2. High precision ball screw
2. High precision ball screw
3. Linear rail guide.
4. Fully-guarded type machine
4. Fully-guarded type machine
Product Main Specifications:
Specifications |
Unit |
VMC320 |
Table Size (L*W) |
mm |
600×200 |
Max. table load |
kg |
100 |
Travel of x,y,z axis |
mm |
300/200/300 |
Spindle nose to table surface distance |
mm |
80-350 |
Spindle taper |
-- |
BT30 |
Spindle speed range |
rpm |
100-5000 |
Spindle motor power |
KW |
1.5 |
Rapid traverse X/Y/Z axis |
m/min |
6/6/6 |
Cutting feed of X/Y/Z axis |
mm/min |
1-3000 |
Guide way type |
linear rail |
|
Tool Magazine Capacity |
tools |
8T Hat type (optional,need add extra cost)
|
Positioning accuracy |
mm |
±0.01/300 |
Machine Weight |
Kg |
1200 |
Dimension |
mm |
1600×1500×2000 |
Details:
FAQ:
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
