High Speed VMC 8000rpm 10000rpm Vertical Machining Center V65 VMC650 Cnc Milling Machine Price for Sale

High Speed VMC 8000rpm 10000rpm Vertical Machining Center V65 VMC650 Cnc Milling Machine Price for Sale photo-1

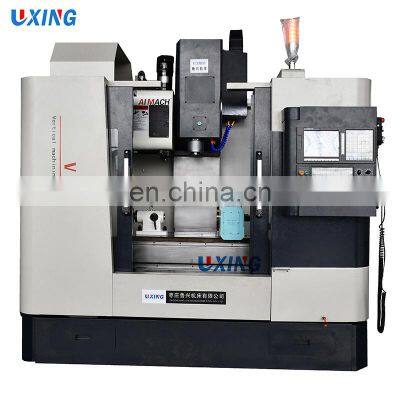

High Speed VMC 8000rpm 10000rpm Vertical Machining Center V65 VMC650 Cnc Milling Machine Price for Sale photo-2

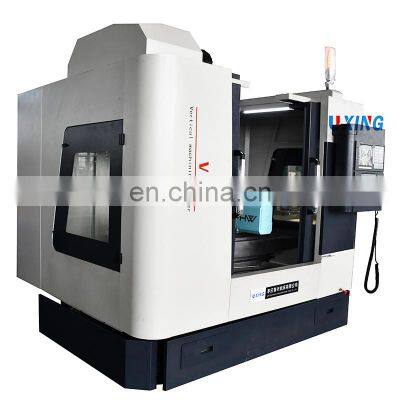

High Speed VMC 8000rpm 10000rpm Vertical Machining Center V65 VMC650 Cnc Milling Machine Price for Sale photo-3

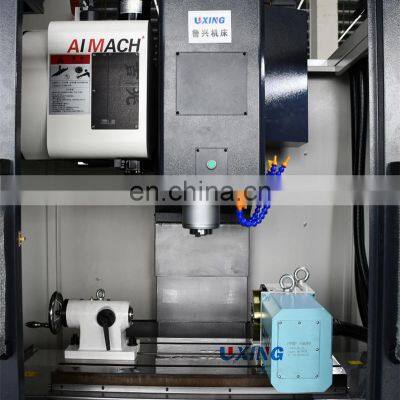

High Speed VMC 8000rpm 10000rpm Vertical Machining Center V65 VMC650 Cnc Milling Machine Price for Sale photo-4
High Speed VMC 8000rpm 10000rpm Vertical Machining Center V65 VMC650 Cnc Milling Machine Price for Sale photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

High speed VMC 8000rpm 10000rpm vertical machining center V65 VMC650 cnc milling machine price for sale

Product Description

Product Characteristics:

1. Taiwan BT40 Spindle

2. Taiwan ball screw and locking nut

3. Disc type 16T tools

4. Fully-guarded type machine

Product Main Specifications:

Specifications

Unit

V65

Table Size (L*W)

mm

900×400

Max. table load

kg

400

T-slot Size

mm

3-18-125

Travel of x,y,z axis

mm

650/400/500

Spindle nose to table surface distance

mm

150-650

Spindle center to Column guide distance

mm

496

Spindle taper

 --

BT40

Spindle speed range

rpm

80-8000

Spindle motor power

KW

5.5/7.5

Spindle drive

 --

Belt transmission

Rapid traverse X/Y/Z axis

m/min

24/24/24

Cutting feed of X/Y/Z axis

mm/min

1-10000

Tool Magazine Capacity

tools

16 Disc type

Positioning accuracy

mm

0.01

Repeat Positioning accuracy

mm

0.005

Machine Weight

Kg

4500

Dimension

mm

2350×2200×2300

Voltage

 --

Customized

Details



Optional accessory:

The 4th axis.(It need add extra cost.)



FAQ

 1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .



2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .


3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.


4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.


5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.


6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .


7: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )
