Luxing Taiwan China Small Cnc Vertical Machining Center VMC640

Luxing Taiwan China Small Cnc Vertical Machining Center VMC640 photo-1

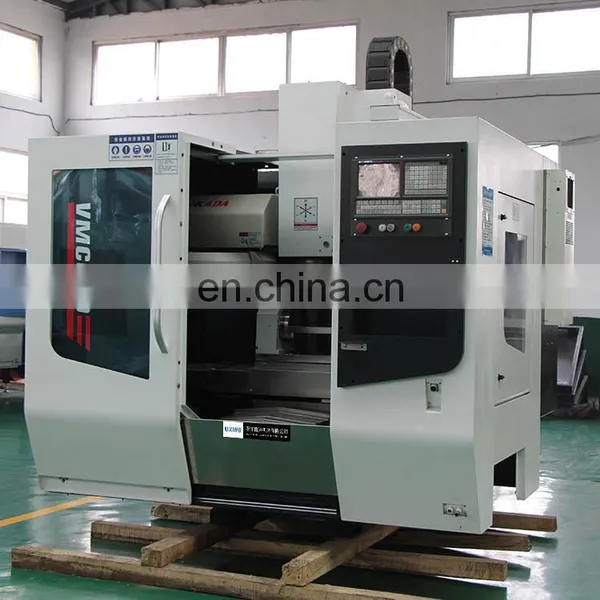

Luxing Taiwan China Small Cnc Vertical Machining Center VMC640 photo-2

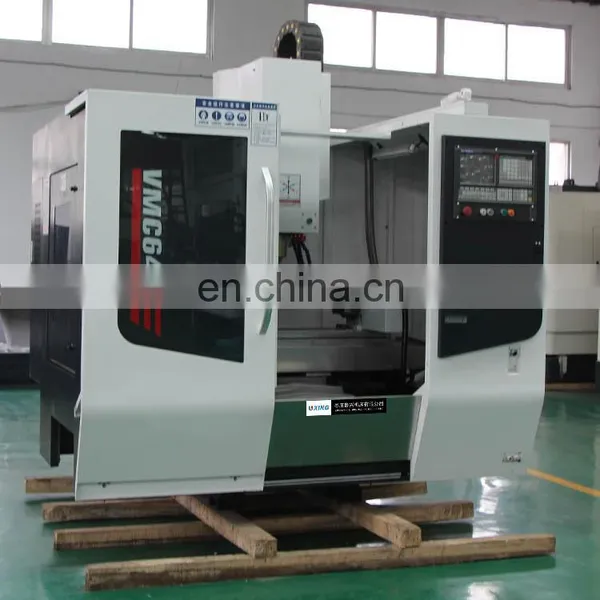

Luxing Taiwan China Small Cnc Vertical Machining Center VMC640 photo-3

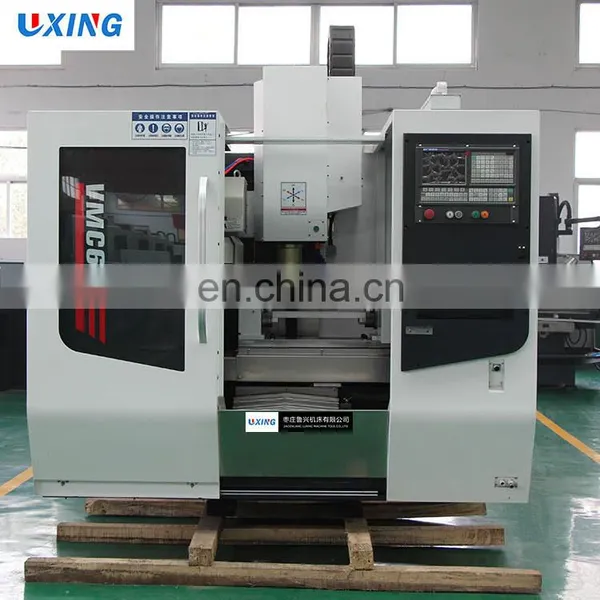

Luxing Taiwan China Small Cnc Vertical Machining Center VMC640 photo-4

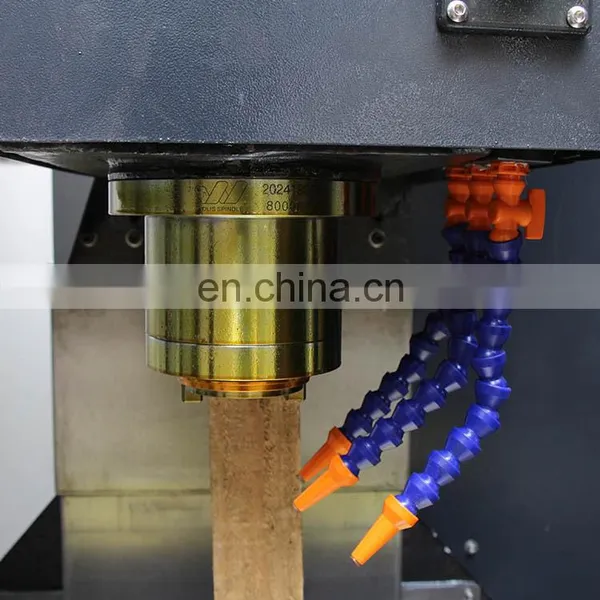

Luxing Taiwan China Small Cnc Vertical Machining Center VMC640 photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Luxing taiwan china small cnc vertical machining center VMC640

Product Description

 Product Characteristics:

1. Taiwan BT40 Spindle

2. Taiwan ball screw and locking nut

3. Magazine tool 16T tools

4. Fully-guarded type machine

Product Main Specifications:

Specifications

Unit

VMC640

Table Size (L*W)

mm

1000×360

Max. table load

kg

300

T-slot Size

mm

3-16-120

Travel of x,y,z axis

mm

600/360/450

Spindle nose to table surface distance

mm

100-550

Spindle center to Column guide distance

mm

383

Spindle taper

 --

BT40

Spindle speed range

rpm

80-8000

Spindle motor power

KW

3.7

Spindle drive

 --

Belt transmission

Rapid traverse X/Y/Z axis

m/min

36/36/36

Tool Magazine Capacity

tools

16 Hattype

Positioning accuracy

mm

0.008

Repeat Positioning accuracy

mm

0.005

Machine Weight

Kg

2800

Dimension

mm

2200×2100×2350

Voltage

 --

Customized

Details
Company Information
FAQ

 1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .



2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .


3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.


4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.


5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.


6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .


7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
