Home > Manufacturing & Processing Machinery > Machine Tools > CNC Machine Tools > Hot Sale Economical China 3 Axis Cnc Vertical Machining Center XK7136

Hot Sale Economical China 3 Axis Cnc Vertical Machining Center XK7136

Hot Sale Economical China 3 Axis Cnc Vertical Machining Center XK7136 photo-1

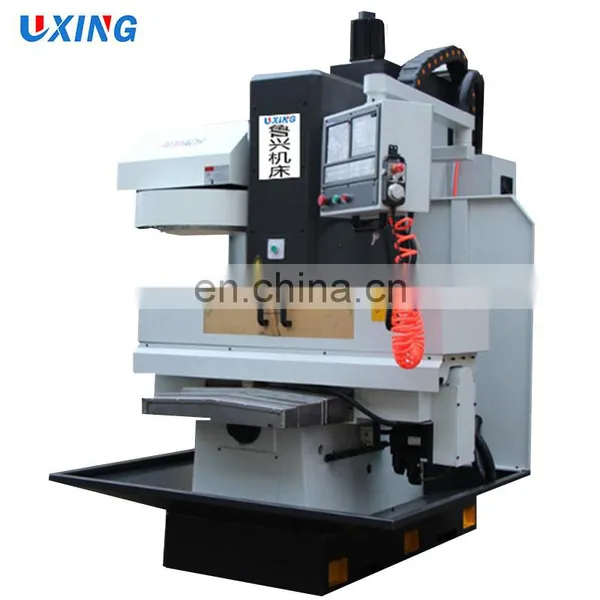

Hot Sale Economical China 3 Axis Cnc Vertical Machining Center XK7136 photo-2

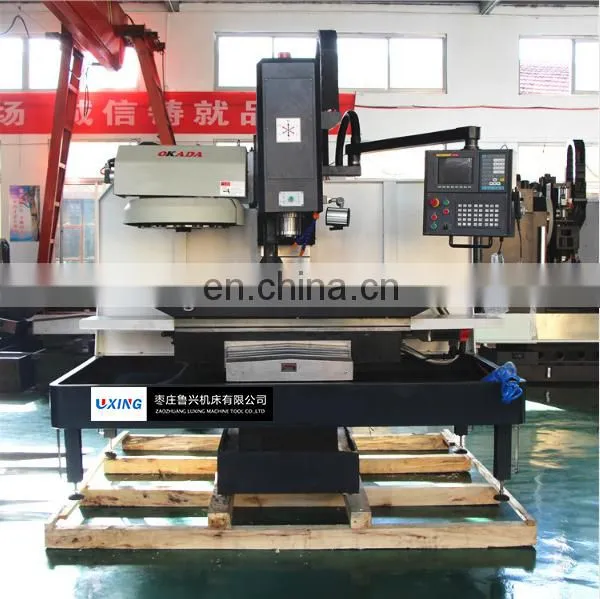

Hot Sale Economical China 3 Axis Cnc Vertical Machining Center XK7136 photo-3

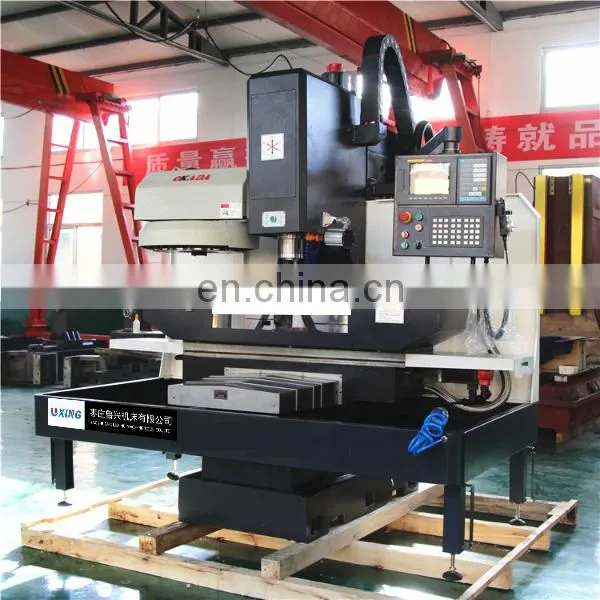

Hot Sale Economical China 3 Axis Cnc Vertical Machining Center XK7136 photo-4

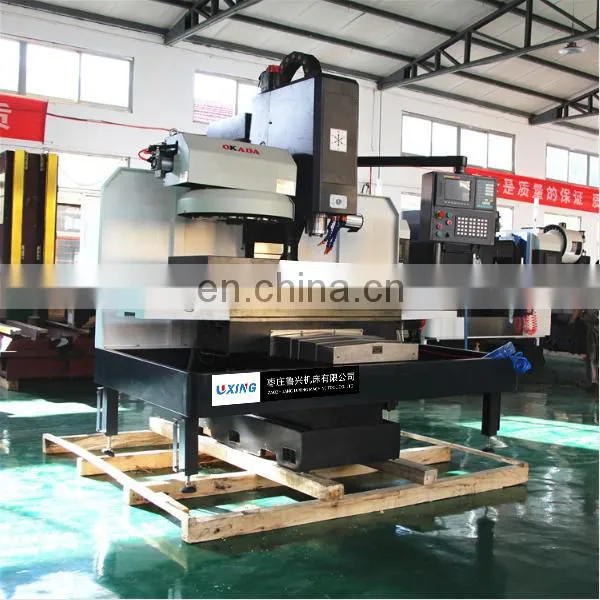

Hot Sale Economical China 3 Axis Cnc Vertical Machining Center XK7136 photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Hot sale economical china 3 axis cnc vertical machining center XK7136

Product Description

Machine main specifications:

Specifications
Units
XK7126
XK7136
Table size
mm
1000x260
1250x360
X axis travel
mm
500
900
Y axis travel
mm
330
400
Z axis travel
mm
450
500
Max. worktable load
kg
300
400
T slot(number-width-pitch)

3-14
3-18
Max. spindle speed
rpm
8000
8000
Spindle taper
mm
BT40
BT40
Main motor power
kw
3.7
5.5
X/Y/Z rapid traverse speed
m/min
10/10/8
10/12/10
Cutting feed speed
mm/min
1-4000
1-6000
Guide rail type

Box guide (rectangualr)rail
Box guide (rectangualr)rail
Distance from spindle axis to column surface
mm
390
460
Distance between spindle nose and worktable surface
mm
100-550
100-600
Positioning accuracy
mm
0.01
±0.015
Repeat positioning accuracy
mm
0.01
±0.008
Tool changer

Optional
Optional
Machine weight
kg
2000
3500
Overall dimension
mm
1600x1600x2100
2380x1900x2350

Details:





FAQ

1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .



2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .


3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.


4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.


5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.


6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .


7: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )
