Help CenterASTM F963 Standard Drop Ball Impact Testing Machine For Toy Cover Face Testing
Related Products
-
Aluminum Safety Test Equipment With Standards ASTM F963 ISO8124 For Toys Bite TestingNegotiableMOQ: 1 Piece -
EN ASTM Whole Button Strength Pull Test Instrument For Garment IndustryNegotiableMOQ: 1 Piece
-
Laboratory EN71-1998 8.5 Impact Media , Polythene Toys Testing EquipmentNegotiableMOQ: 1 Piece
-
Laboratory ASTM F963 8.7.1 Impact Media , Polythene Toys Testing EquipmentNegotiableMOQ: 1 Piece
-
Toys Balls Kinetic Energy Tester Touch Screen Projectile Velocity TesterNegotiableMOQ: 1 Piece
Toy test equipment , Durability test machine
Purpose of equipment

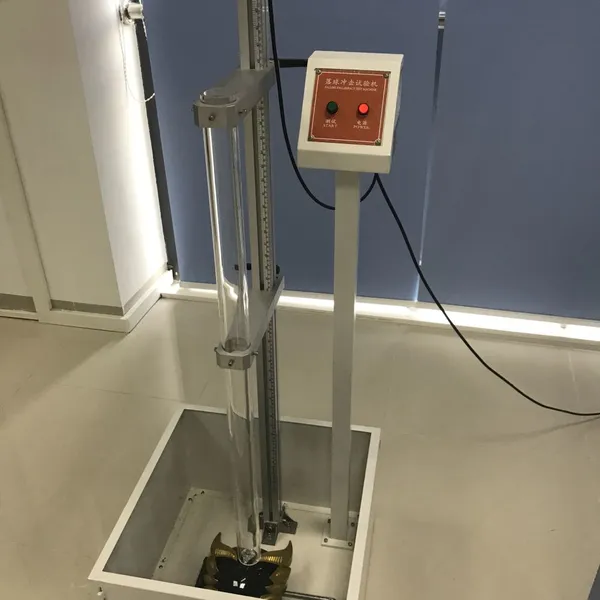

Drop Ball Impact Testing Apparatus adops DC magnetic control, the ball will be sucked automatically when it placed under the magnetic chuck, press the drop button, the ball will be free fall, impacting the test object surface. The falling height can be adjusted up or down, the drop height can be see by the height scale. The key components of the machine are made from Japan, reliable performance, multi-drop attachments; make your test accurate and effective.
Technical specifications
1.Impact Height Range:0-2000MM can be adjusted
2.Control Method:DC electromagnetic control free-all test, impact single once
3.Dimension of specimens:50 * 120 * 60mm, 60 * 120* 80mm
4. Test Height: Can be specified the height and drop the ball.
5. Controll box: Separate electronic magnetism steel install on the bottom
6.Dimension:500 * 500 * 1400MM
7.Power supply:220V 50Hz
8. Steel ball weight: 15.8g Steel ball diameter 16mm
9.Weight:65KG
10.Power:40KW
Standard:
NM300-1,ASTM F963 8.7.4 Impact Test for Toys that Cover the Face
Service and Support
Our company focuses on research and development , we were produced some intelligent testing equipments over thirteen years, we continue to provide stable performance, high-quality equipment for product quality testing industry.At present, the company has 14 utility model patent technologies,2 patents for invention and participated in the drafting and formulation of nine national standards.
In cooperation we has a variety of testing units, industries, association partners and friends, accumulated a large number of detection industry insights and contacts, for those friends who just come into testing industry, we can learn from each other to communicate, explore the problems and difficulties encountered in testing.
