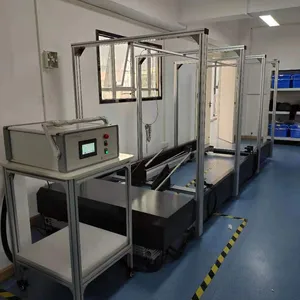

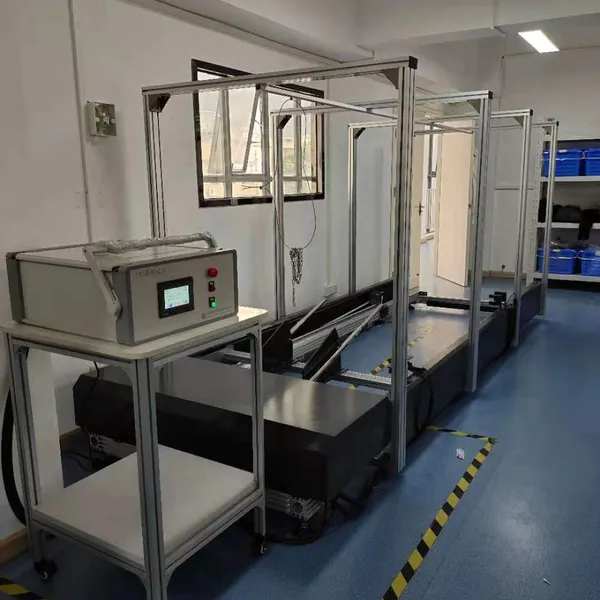

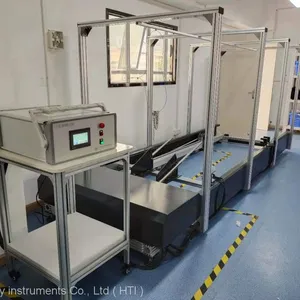

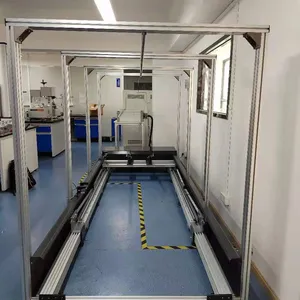

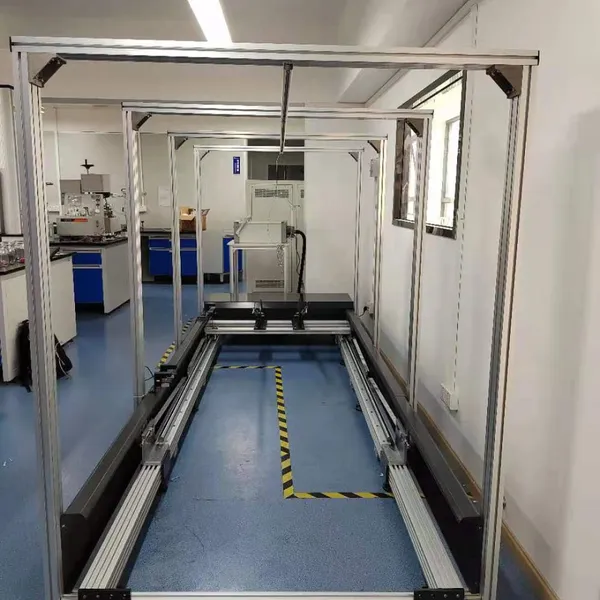

EN71 Toys Dynamic Strength Testing Machine For Toy Scooters , EN71 Dyanamic Strength Test Insrument,2m/S Test Speed
Purpose of equipment
This dynamic strength test equipment is used to test the dynamic strength performance of toy scooter by such movement that drive the toy three times at a steady speed of 2.0±0.2m/s perpendicularly into a non-resilient step with a height of (50±2)mm.
Technical specifications
| Item | Specification |
| Test Sample | Children Ride-on-Toys |
| Sample No | 1 pcs per time |
| Test Speed | 2±0.2m/s |
| Load weight | 25Kg/50Kg (optional purchase) |
| Barrier | 50mmx50mm |
| Passage width | 90cm |
| Size(WxDxH) | Machine:153x450x156cm Control box:36x32x100cm |
| Weight | ≈650Kg |
| Power | 1∮ AC 220V 50Hz |
Standards:
ISO 8124-1 5.27 Dynamic strength for toy scooters; 5.24.4 Dynamic strength test for wheeled ride-on toys other than toy scooters, EN71-1, GB6675A5.24.4
