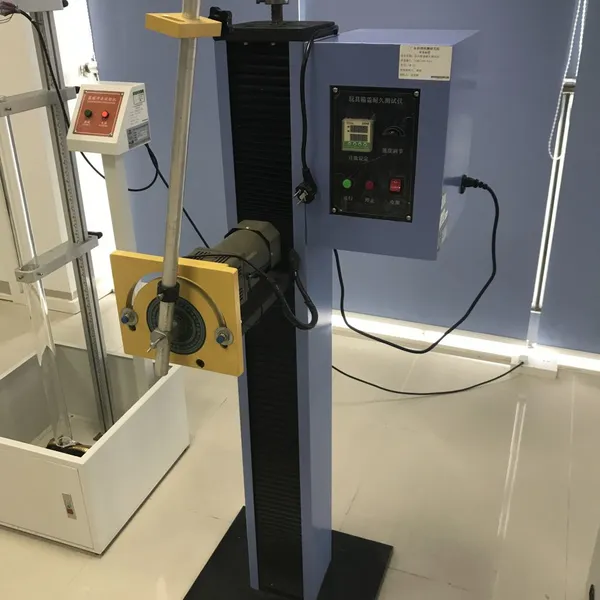

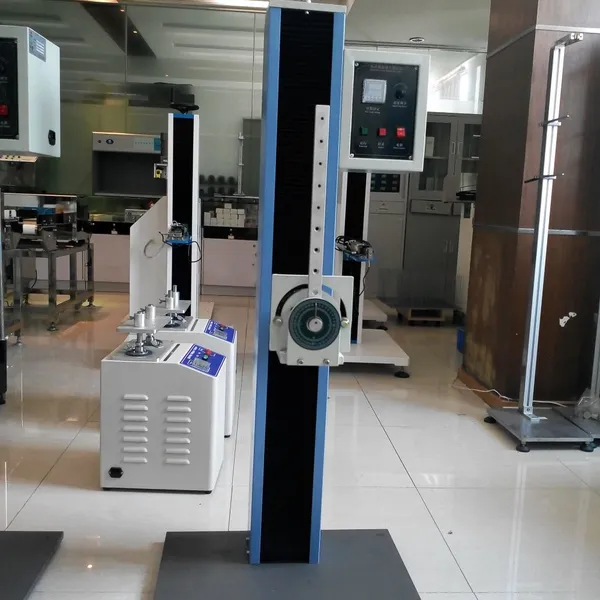

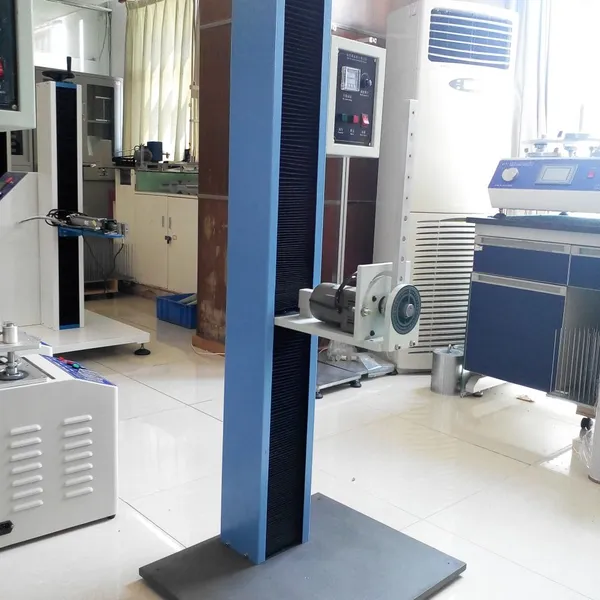

Toy Lid Tester,Lid support tester (Toy chest lids) according to EN 71-1:toy box cover tester,7000 cycle tests
Toy Box Cover Durability Tester , Toy Chest Tester
Purpose of equipment
Toy Chest Lid Durability Tester applies to test the durability of toys box cover. It uses fixtures to drive the toy box cover move, after simulating a certain number of opening and closing movements, check whether the toy box lid hinge part’s functions are in good condition.
Technical specifications
Control mode: Controlled by Micro-computer automatically
Action mode: pneumatic
Test pieces: Stop automatically
Sample for test: One pcs for each test
Test speed: 15 second for opening and closing movement each cycle.
Pendulum rod moving angle: 0°~80°
Test cycles: 7000 cycles
Counter: LED display; 0~9999 times
Max height: 700mm
Gas source: 6kgf/cm^2
Dimension (WxDxH): 97.5x35x126cm
Weight: 80kg
Power: 1∮ AC 220V 3A
Standards:
16 CFR 1500, ASTM F963 4.8, EN71-1 2014 8.31.3 , ISO 8124 -1 5.13
Service and Support
Our company focuses on research and development , we were produced some intelligent testing equipments over thirteen years, we continue to provide stable performance, high-quality equipment for product quality testing industry.At present, the company has 14 utility model patent technologies,2 patents for invention and participated in the drafting and formulation of nine national standards.
In cooperation we has a variety of testing units, industries, association partners and friends, accumulated a large number of detection industry insights and contacts, for those friends who just come into testing industry, we can learn from each other to communicate, explore the problems and difficulties encountered in testing.
