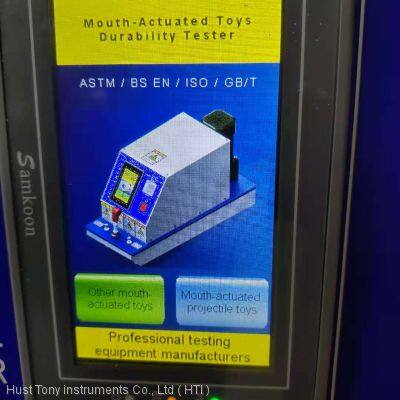

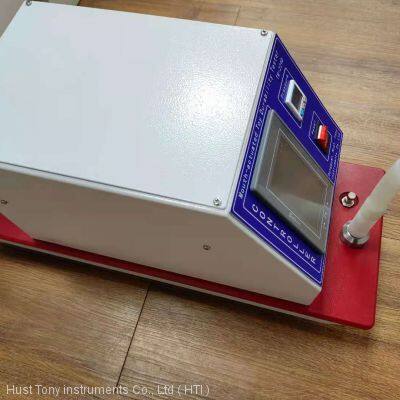

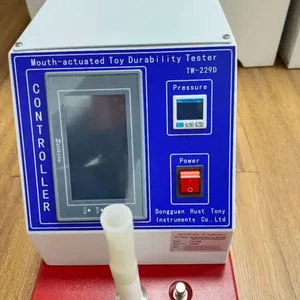

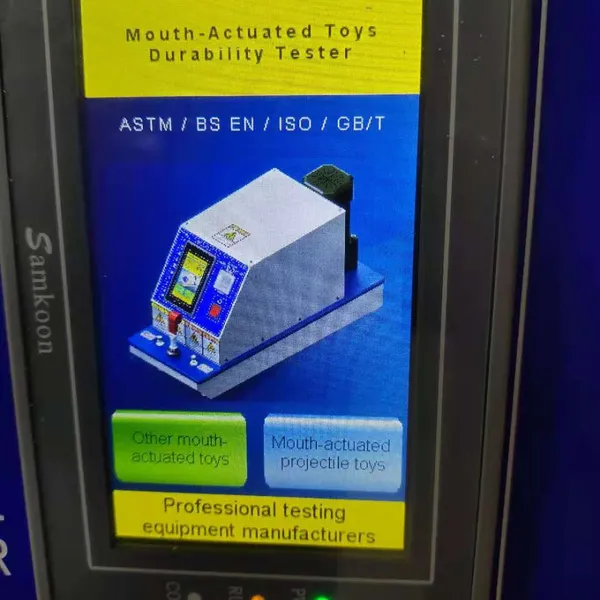

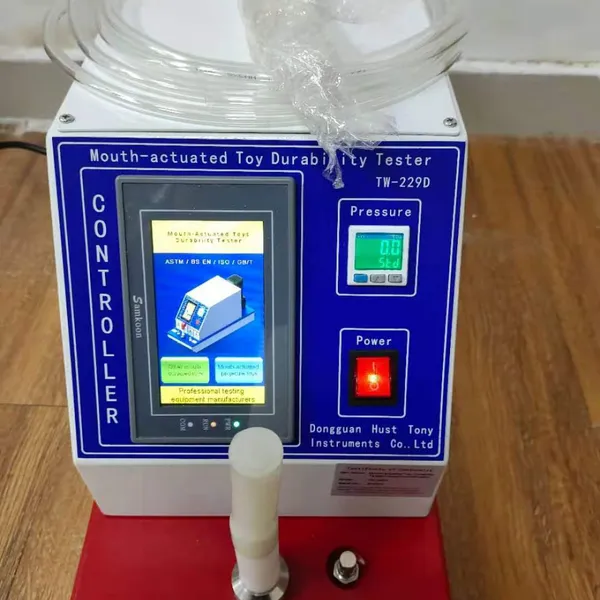

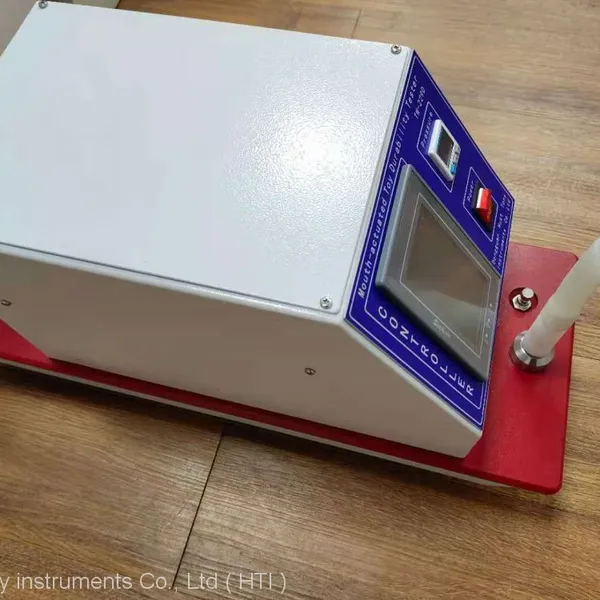

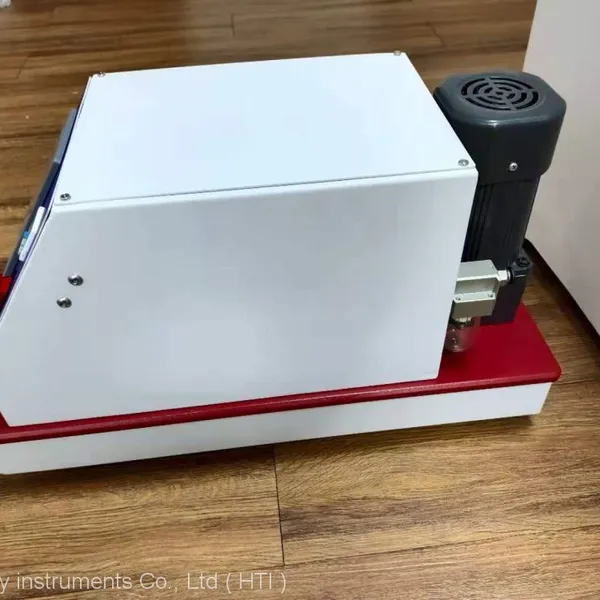

Help CenterMouth Actuated Toys Testing Equipment Durability Tester Touch Control Screen
Related Products
-
Toys Dynamic Strength Testing Weights With BS EN 71 , ISO 8124 StandardsNegotiableMOQ: 1 Piece -
1Kg Impact Tester Meet EN71 Toys Free Fall Drop Test Equipment TW-201NegotiableMOQ: 1 Piece
-
TW-203 Rattle Test Fixture Geometry Template A / B Toys TestingNegotiableMOQ: 1 Piece
-
EN71-1 8.3 Large Torque Fixture Testing MachineNegotiableMOQ: 1 Piece
-
Middle Torque Gauge Universal Toy Testing Machine For Clamping SampleNegotiableMOQ: 1 Piece
Purpose of equipment
To prevent mouth moving toys or children's mouthpiece has been mistakenly inhaled and cause a choking hazard
Load the mouth-actuated projectile toy with the intended projectile and apply a pressure of 13,8 kPa ± 5 % in the direction of the mouthpiece for 5 s.
Carry out the test 10 times in total.
Connect a piston pump capable of discharging and receiving more than 300 cm3 of air in less than 3 s to the mouthpiece of the toy. Arrange a relief valve so that the pump will not generate a positive or negative pressure of more than 13,8 kPa. Subject the toy to 10 alternating blowing and sucking cycles, each within 5 s and of at least (295 ± 10) cm3 of air including the volume which may be discharged through the relief valve. If the air outlet is accessible, ensure that the above is also applied to the outlet.
Determine whether any released component fits entirely in the small parts cylinder when tested according to 8.2 (small parts cylinder)
Technical specifications
1. Instruments to meet at least 295 cubic centimeters within + / -10 cubic centimeters of gas in 5s, and can be 10 times alternately blowing, suction.
2. apply a pressure of 13,8 kPa ± 5 % in the direction of the mouthpiece for 5 s.
3. Instrument install high precision pressure gauge (digital pressure gauge is optional if client need)
4.Supply gas-type fitting for different toys
5. Gas flow could be controlled by gas valve
6.Power: 220V/50Hz,4A.
7.Dimension (L*W*H):650*400*260mm
8.Weight: 20 kg
Standards:
EN71-1 8.17.1 Mouth-actuated projectile toys and EN71-1 8.17.2 Other mouth-actuated toys, ISO 8124-1 4.25,5.20, ASTM F963 8.13 Durability Test for Mouth-Actuated Toys
Service and Support
Our company focuses on research and development , we were produced some intelligent testing equipments over thirteen years, we continue to provide stable performance, high-quality equipment for product quality testing industry.At present, the company has 14 utility model patent technologies,2 patents for invention and participated in the drafting and formulation of nine national standards.
In cooperation we has a variety of testing units, industries, association partners and friends, accumulated a large number of detection industry insights and contacts, for those friends who just come into testing industry, we can learn from each other to communicate, explore the problems and difficulties encountered in testing.
