Home > Electrical & Electronics > Switch > Micro Switch > Low Force 3A Micro Switch With Lever Operation Force With 20gf

Low Force 3A Micro Switch With Lever Operation Force With 20gf

Name: Low Force 3A Micro Switch With Lever Operation Force With 20gf
Brand: RENEW
SKU: 167452501
Availability: InStock

Low Force 3A Micro Switch With Lever Operation Force With 20gf thumbnail-1

Low Force 3A Micro Switch With Lever Operation Force With 20gf thumbnail-2

Low Force 3A Micro Switch With Lever Operation Force With 20gf photo-1

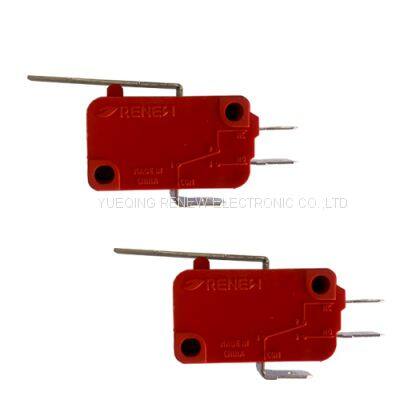

Low Force 3A Micro Switch With Lever Operation Force With 20gf photo-2

US$ 0.88 - 1.5 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Brand Name:

RENEW

Place of Origin:

China

Model Number:

RV-32-1C22

Contact Supplier Request Quote Chat Now

Yueqing Renew Electronic Co.,ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

WENZHOU

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name RENEW

Place of Origin China

Model Number RV-32-1C22

Protection Level IP40

Max. Voltage 250vac

Max. Current 16a

Operating Temperature -25+80℃

Product Name: Lever Micro Switch Hydraulic System Micro Switch . Low Force 20-45g ,3A Micro Switch with golden electrical contact

Model No.: RV-32-1C22

Purpose:

Home appliance: micro-oven, electric cooker, washing machine, acoustics, warmer, water fountain, humidifier, sterilizer and so on.

Commercial appliance: vending machine, entertainment game machine, electric toy, duplication machine, shredder and so on.

Machine: transport machine, print machine, spin and weave machine and so on.

Others: the actuator of the turnstile, detacting gear and so on.

Rated data and performance of micro switch RV type

Item Type		RV-21 RV-16 RV-15 RV-11 RV-10 RV-3
Allowable operating speed		0.1mm~1m/sec(pin plunge type)
Allowable operating frequency		Mechanical 600times/min Electrical 30times/min
Insulation resistance		Above 100 mΩ (use the DC500V insulation resistance test)
Contact resistance (initial value )		Max 15mΩ
Dielectric strength	Between the non-connect terminal	AC 1000V 50/60HZ for 1min
	Between non voltage metal parts and each terminal	AC 2000V 50/60HZ for 1min
	Between the grounding and the each terminal
Vibration resistance	Malfunction	10-55HZ double amplitude 1.5mm(contact gap is less than 1ms )
Shock resistance		OF 0.49N type: less 98m/s2 OF 1.96N,3.29N type :less 294m/s2 OF 0.98 N type : 196m/s2
Expected Life	Mechanical life (order OT)	50,000,000 operations min. (frequency is 60 operations/min)
	Electrical life(resistive load )	100,000 operations min. (frequency is 20 operations/min)
Ambient operation temperature & Ambient humidity		-25~+80(with no icing ), 85%RH max. (at +5~35)
Contact material		AgNi alloy ; AgCdO alloy (not in the ROHS order )
Weight		About 6.2g(pin plunger type )

Remark : Micro switch operation with the slow / high speed and shock , or used in the high temperature and more humidity , the life and the capability of micro switch may be down because of the load capacity , so please consultation us

Operating Characteristics:

Item	Characteristics
OF max	3.96N (400gf)
RF min	0.49N (50gf)
PT max	1.6mm
OT min	0.8mm
MD max	0.6mm
OP	15.2±0.5mm

Other information of micro switch RV type

Rating:	21A/16A/11A/6A/3A, AC250V
Contact form	SPDT/SPST-NC/SPST-NO
Terminals:	#187/#250 England made/ Screw fixed terminal/Solder terminal
Maximum Operating Force	50gf-400gf

Ratings

Model	Rated voltage	No-inductive load				Inductive load
		Resistive load		Lamp load		Inductive load		Motor load
		NC	NO	NC	NO	NC	NO	NC	NO
RV-21	250VAC	21A		3A		12A		4A
	8VDC 30VDC 125VDC 250VDC	21A 14A 0.6A 0.3A		5A 5A 0.1A 0.05A		12A 12A 0.6A 0.3A		7A 5A 0.1A 0.05A
RV-16	250VAC	16A		2A		10A		3A
	8VDC 30VDC 125VDC 250VDC	16A 10A 0.6A 0.3A		4A 4A 0.1A 0.05A		10A 10A 0.6A 0.3A		6A 4A 0.1A 0.05A
RV-11	250VAC	11A		1.5A		6A		2A
	8VDC 30VDC 125VDC 250VDC	11A 6A 0.6A 0.3A		3A 3A 0.1A 0.05A		6A 6A 0.6A 0.3A		3A 3A 0.1A 0.05A
RV-6	250VAC	6A		3A		4A		--
	8VDC 30VDC 125VDC 250VDC	6A 6A 0.4A 0.3A		3A 3A 0.1A 0.05A		4A 4A 0.4A 0.2A		--
